Description

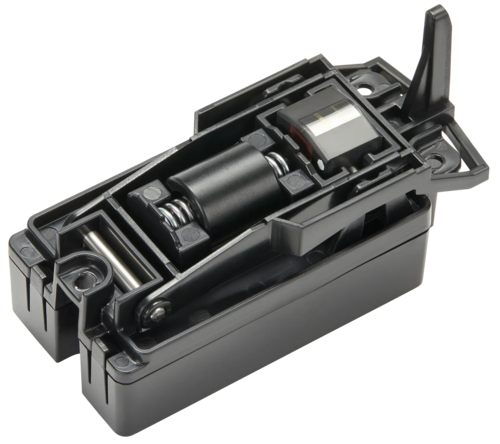

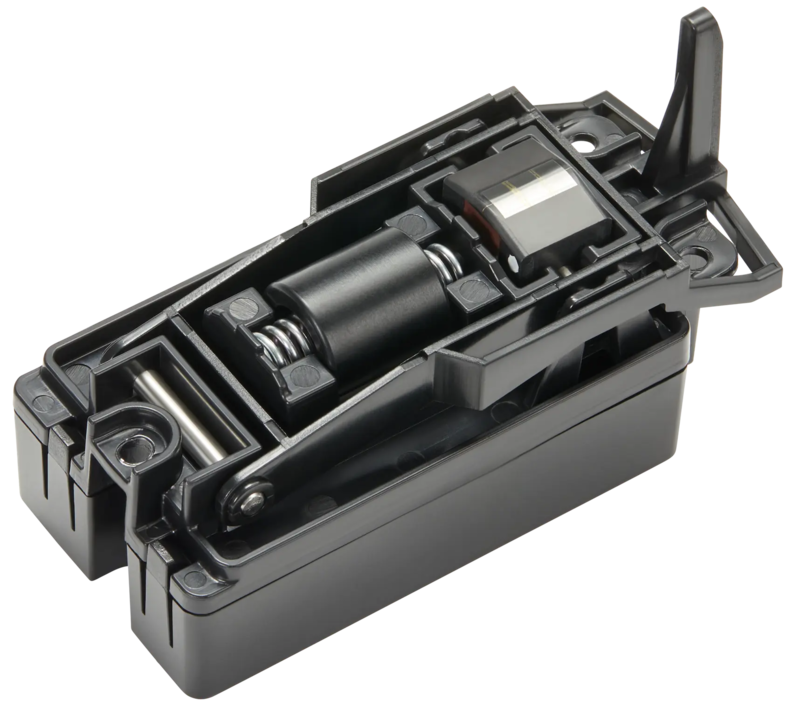

The Fargo HDP6600 Magnetic Stripe Encoder is a robust, field-upgradeable module designed to integrate magnetic stripe card encoding functionality directly into the Fargo HDP6600 retransfer card printer. This encoder supports industry-standard magnetic stripe encoding formats, including high and low coercivity, and is ideal for producing cards used in access control, banking, time tracking, and payment systems.
By enabling inline magnetic encoding during card printing, the encoder streamlines the card personalization workflow, reduces errors, and eliminates the need for separate encoding equipment. It supports ISO 7811 formatting as well as flexible encoding modes like custom and raw binary.
Specifications
Module Function: Encodes magnetic stripe data during the card printing process
Compatibility: Designed for Fargo HDP6600 only
Encoding Standards:
- ISO 7811 compliant
- JIS II format
- Custom and raw binary encoding modes
Track Support: Supports Tracks 1, 2, and 3
Coercivity Options: Low, Medium, High (2,750 Oe), Super High (4,000 Oe)
Card Compatibility: CR-80 cards (30–50 mil); Magnetic stripe cards with PVC composite, PETG, or polycarbonate substrates
Installation: Field-upgradeable; installs inside HDP6600 without additional tools
Power & Interface: Integrated power and communication via HDP6600 internal interface
Warranty: 4 years (when used with HID FARGO-certified supplies)
