Description

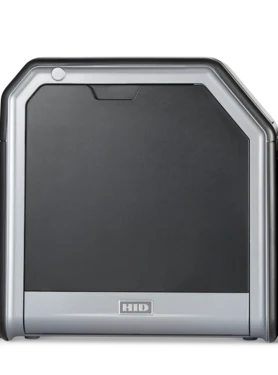

The **Fargo HDP5000e Single-Side Lamination Module** adds a protective layer of lamination to one side of your printed ID cards, significantly improving durability and security. Engineered to seamlessly integrate with the HDP5000e printer, this module enables inline single-sided lamination without compromising throughput or print quality.
Ideal for organizations that require high-use, tamper-resistant credentials, this upgrade supports a variety of lamination films—including clear, standard holographic, and custom holographic overlaminates. It is an effective solution to protect against counterfeiting and environmental wear while maintaining the sharp, vibrant visuals produced by HDP retransfer printing technology.
The cartridge-based design allows for fast material changes, and the modularity means the HDP5000e can grow with your evolving security requirements. Whether you're issuing employee badges, student IDs, or secure access credentials, the single-side lamination module enhances card performance and extends card life.
Specifications
Module Function: Single-side overlamination for HDP5000e cards
Compatibility: Single-Side Lamination Module for HDP5000e only
Not compatible with HDP5000 or HDP5600 card printers
Lamination Options:
- Thermal Transfer Film: 0.25 mil, 500 prints
- PolyGuard™ Overlaminate: 0.6 mil and 1.0 mil, 250 prints
- Clear or holographic designs available
Lamination Speed: Adjustable (0.8 – 5.5 seconds per inch)
Card Compatibility: CR-80 cards (30–50 mil); Composite PVC, PETG, Polycarbonate (PVC not recommended)
Dimensions: 12.75" W x 12.25" H x 11.0" D (324mm x 313mm x 280mm)
Weight: ~6.5 lbs (3 kg)
Power & Interface: Powered via connection to HDP5000e main printer; communicates through internal module interface
Installation: Field-upgradeable; no tools required
Warranty: 4 years (when used with HID FARGO-certified supplies)
