Description

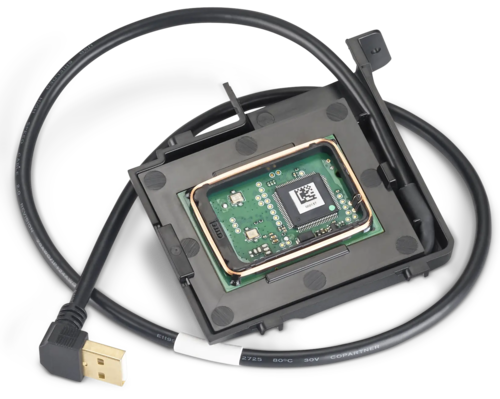

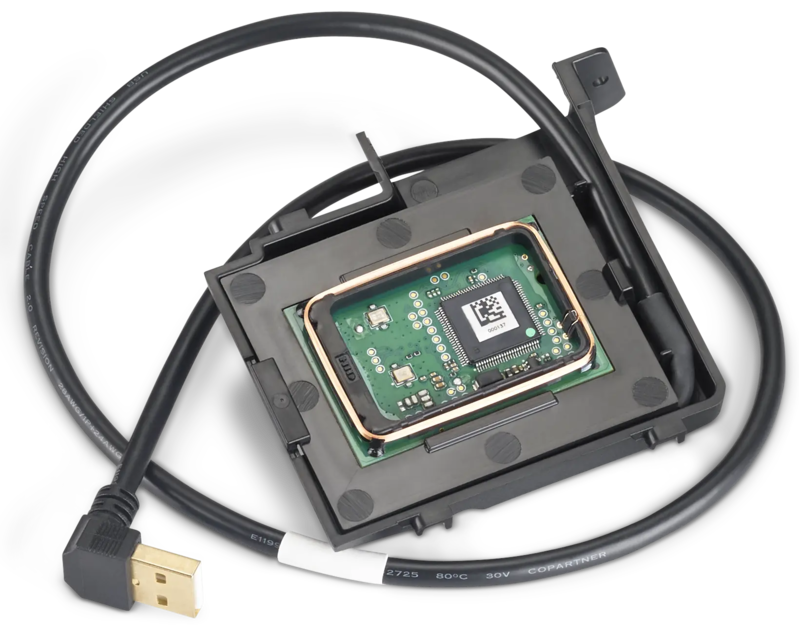

The Fargo HDP5000e OMNIKEY 5127CK Contactless Encoder is a factory-authorized encoding module designed to integrate seamlessly with the HDP5000e retransfer printer. It supports a broad range of contactless technologies including HID iCLASS®, iCLASS SE™, Seos®, MIFARE®, and other 13.56 MHz credentials, enabling secure encoding of ID cards during the print process.
This dual-frequency encoder is ideal for government, healthcare, and corporate credentialing programs requiring flexible support for multiple secure access control technologies. It allows issuers to personalize and encode contactless smart cards in a single, streamlined operation, helping reduce handling time and risk of error. Built on the HID OMNIKEY® 5127 chipset, it offers fast, reliable performance and enhanced integration options through USB or Ethernet connectivity.
Specifications
Module Function: Contactless smart card encoding using OMNIKEY® 5127CK chipset
Compatibility: Designed for Fargo HDP5000e Single-Side / Dual Side printers (not backward-compatible with HDP5000 or HDP5600 models)
Supported Technologies:
- 13.56 MHz contactless encoding (HID iCLASS®, iCLASS SE™, Seos®, MIFARE®, DESFire® EV1/EV2/EV3)
- Supports custom and secure key-based configurations
- Read/write capabilities for ISO14443 A/B and ISO15693 protocols
Connectivity:
- USB (default connection)
- Ethernet interface support via printer integration
- Single-wire encoding architecture for streamlined operations
Encoding Workflow: Personalization and contactless encoding performed in-line with printing, reducing handling and increasing throughput
Installation: Factory- or field-installed; requires printer configuration and driver support
Security: Supports mutual authentication, secure messaging, and encrypted data exchange using HID Secure Identity Object™ (SIO)
Warranty: Covered under the HDP5000e printer's 4-year warranty when installed with HID-certified hardware
