Description
Product Features

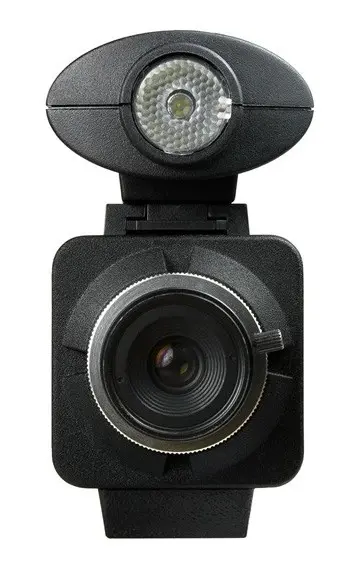

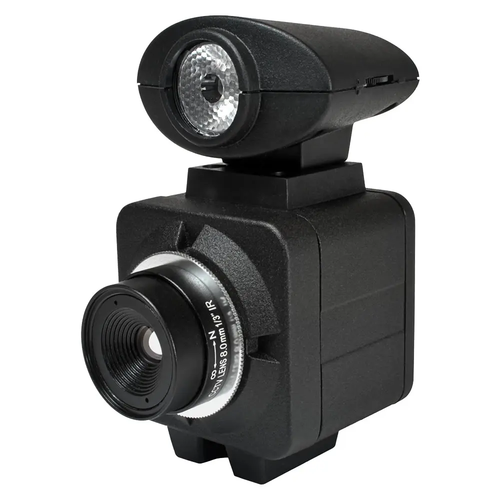

- Synchronized USB powered LED flash for consistent high quality images in any environment
- 1.3 megapixel progressive scan sensor
- >12.5fps at 720p high definition uncompressed resolution
- Still image capture with streaming video
- USB 2.0 bus provides power, camera and flash control
- Complete SDK available
- Compact industrial design
- Lens is no included
Software
- USB 2.0 viewer software and Microsoft Digitally Certified WDM Device Drivers for 32bit and 64bit Windows operating systems
- DirectX/Direct Show compliant
- TWAIN compliant
- FIPS 201 compliance (in conjunction with appropriate software)
Specifications
Electrical 24C7.38USB-F
- Sensor: 1/3? CMOS
- Flash: High powered white LED
- Viewer Display: 1280 x 1024 max
- Max Frame Rates (Uncompressed)
- 7.5 fps @ SXGA (1280 x 1024)
- 12fps @ XGA (1024 x 768)
- 25fps @ VGA (640 x 480)
- Sensitivity: < 2.0 Lux (50 IRE) F1.2, 3200K, lens transmission 80%, scene reflection 75%
- Signal to Noise Ratio: >45 dB (AGC off)
- Gamma: 0.45 default (1.0 via software)
- Gain Control: Automatic 36 dB (AGC default) or Fixed options via software
- Scan Mode: Progressive scan
- Mirror Mode: Yes (horizontal/vertical)
- Shutter Mode: Rolling shutter
- Control Communication: Camera control via USB bus
- Synchronization: Internal
- Back Light Compensation: Default on (selectable via software)
- White Balance Mode:
- AWB auto white mode,
- Fixed modes selectable via software
- Contour Enhancement: Default on
- Iris Control: Electronic shutter
- Shutter Speeds:
- Automatic
- Fixed (NTSC) 1/12 to 1/100
- Fixed (PAL) 1/15 to 1/120
- Video Output: USB 2.0
- Power Supply: 5VDC via USB 2.0 bus
- Power Consumption: < 0.6W

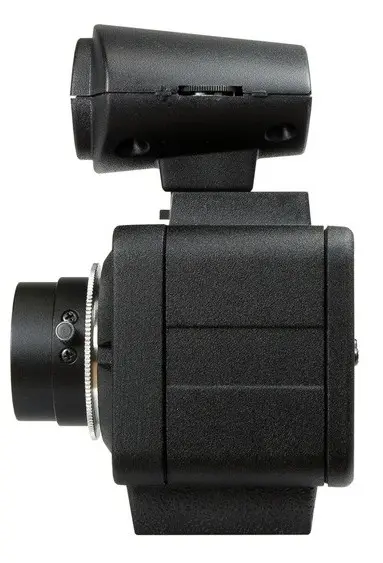

Mechanical
- Dimensions W x H x D (camera only): 50mm x 50mm x 49.6mm (without lens mount) (1.97? x 1.97? x 1.95?)
- Weight: (w/? ash) 195g (0.43lb)

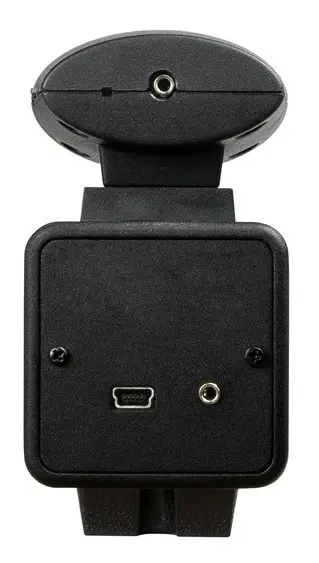

- Cable: 6ft mini USB cable
Environmental
- Operating Temperature -15o C ~ 55o C (5o F ~ 131o F)
- Operating Humidity 20% up to 93%RH
- Storage Temperature -25o C ~ + 70o C (-13o F ~ 158o F)
- Storage Humidity Up to 98%RH
- Lifetime MTBF > 150000
Software
- Viewer (included) SFT-07019
- WDM device drivers
- DirectX/DirectShow compliant
- TWAIN compliant (requires driver installation)
- SDK (optional) SFT-07019-SDK: Complete software development kit and support for OEMs
Recommended System Requirements
- Hardware
- Pentium IV 2.3GHz +, 1GB hard drive,
- Intel USB 2.0 Host controller
- Software
- Windows 7 32 bit and 64 bit
- Windows Vista 32 bit and 64 bit
- Windows XP Service pack 2 +,
- DirectX 9.0c or above
Government Compliance
- FIPS 201: In conjunction with appropriate software
- Standards: RoHS
