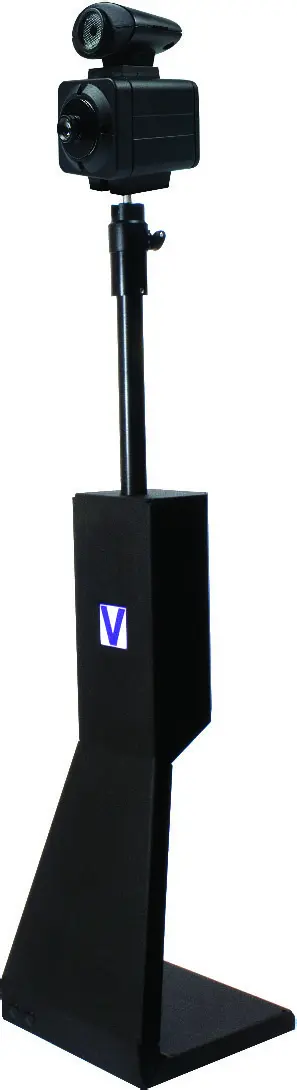

Videology Full HD FLASH-SYNC Webcam for Facial Photo IDs with Flash and 12mm Lens 24C708AF-1
Videology Full HD FLASH-SYNC Webcam for Facial Photo IDs with Flash and 12mm Lens 24C708AF-SYS-1

Videology Full HD FLASH-SYNC Webcam for Facial Photo IDs with Flash and 12mm Lens

Item#: 24C708AF-1
Manufacturer: Videology
Sale Price: $549.50
More Options: 24C708AF-SYS-1

Description

Product Features

  • Synchronized USB powered LED flash for consistent high quality images
    in any environment
  • FHD progressive scan sensor for 1920 x 1080 still images
  • Both Compressed (MJPEG) and Raw video (YUY2) outputs supported. Still image capture only with MJPEG
  • USB 2.0 bus provides power, camera and flash control
  • UVC compliant
  • Convenient manual dial allows customized flash intensity
  • 1/4 20 mount is on base for tripod use
  • Full SDK available for integration into
    customer applications - Check with Sales
  • TWAIN compatible
  • NOTE: Neutral Gray backdrop is recommended

Software

  • USB 2.0 viewer software and Microsoft Digitally Certified WDM Device Drivers for 32bit and 64bit Windows operating systems
  • DirectX/Direct Show compliant
  • TWAIN compliant
  • FIPS 201 compliance (in conjunction with appropriate software)

Specifications

 24C708AF-1

  • Sensor: 1/4”
  • Flash: Selectable via Videology viewer or TWAIN
  • Resolution: 1920 x 1080
  • Max Frame Rates

Uncompressed

    • 1920x1080/5fps
    • 1280 x 1024/10fps
    • 1280x720/20fps
    • 640x480/30fps

Compressed

    • 1920x1080 (recommended)
    • 1280 x 1024
    • 1280x720
    • 640x480
  • Sensitivity:  0.1LUX/F2.0
  • Signal to Noise Ratio: >65dB
  • Gain: Fixed
  • Shutter Mode: Electronic rolling shutter

Mechanical

  • Dimensions W x H x D:  50mm x 100mm x 74mm (with flash and no lens)
  • Weight: 154g (0.34lb)
  • Cable: 60C1138 - 2.5mm stereo (6” plug to plug); 60C1147 - USB 2.0 A to mini B cable (10ft)

Environmental

  • Operating Temperature: -15°C - 55°C (5°F-131°F)

Software

  • SFT-15003
    rev 2.2.0.1 or above - Videology viewer with active features
  • SFT-10011
    rev 2.1.26 or above - TWAIN Data Source

Recommended System Requirements

  • Hardware: Requires USB 2.0 or USB 3 backwards compatible UVC compliant ports
  • Software
    • Windows XP, 7, 8, 10
    • Linux 2.6.26
    • Android 4.0 above (potential)
    • Mac OS 10.4.8 or above (potential)
