Fargo DTC4250e Single Sided Photo ID System

A Badge Station for Growing Card Programs

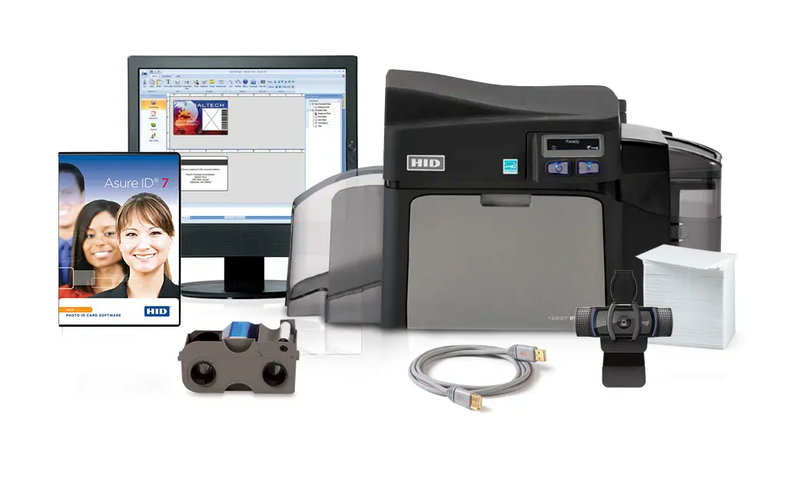

Produce employee, student, and membership cards at your enrollment station. This Fargo DTC4250e system brings together a single-sided printer, a 250-print YMCKO ribbon, 500 white CR80 30 mil PVC cards, Asure ID Solo 7 software, and a Logitech C920S Pro HD webcam.

Detailed Cards with Convenient Operation

Dye-sublimation creates full-color photos and logos at 300 dpi, while resin thermal transfer adds clear black text and barcodes. A YMCKO card prints in about 16 seconds, and the SmartScreen graphical display provides prompts and printer status. This configuration has a 100-card input hopper and an output capacity of up to 100 cards.

Local and Network Printing

Use USB 2.0 for a direct computer connection or the built-in Ethernet interface and internal print server for network access. Password-protected printer operation helps control use. Compatible duplex, alternate hopper, and encoding upgrades are available separately as card program requirements change.

Color Ribbon and Blank Cards

The included Fargo 45100 EZ YMCKO ribbon provides up to 250 single-sided prints. Its color panels reproduce images, resin black sharpens text, and the clear overlay covers the printed surface. The cartridge incorporates a cleaning roller. The 500 supplied PVC cards measure 3.375 x 2.125 inches and are 30 mil thick, without a magnetic stripe or smart chip.

Layout Design and Enrollment Photos

Digitally delivered Asure ID Solo 7 lets users combine text, photos, logos, and linear barcodes and retain up to 200 cardholder records. The C920S webcam offers 1080p video at 30 fps, a glass lens, autofocus, automatic light correction, and a privacy shutter for the photo station.

Accessories and Coverage

The kit includes a USB cable, US/international power cords, printer driver and user guide CD, quick start guide, and three cleaning cards. Both the printer and printhead carry a three-year warranty. Fluorescent panel printing requires a separate compatible ribbon; the supplied YMCKO ribbon has no fluorescent panel.

Fargo DTC4250e Single-Sided Printer

• Part Number: 52000
• Print Method: Direct-to-card dye-sublimation / resin thermal transfer; edge-to-edge
• Resolution: 300 dpi continuous tone; up to 16.7 million colors
• Print Speed: Approx. 16 sec/card YMCKO, 8 sec/card KO, 6 sec/card K; processing and encoding time excluded
• Card Capacity: 100-card input; up to 100-card output with 30 mil cards
• Card Formats: CR80 (3.375 x 2.125 in); CR79 adhesive-back (3.313 x 2.063 in)
• Thickness: 9-40 mil for printing
• Card Materials: PVC or polyester with polished PVC finish; 100% polyester requires monochrome resin
• Connectivity: USB 2.0 and Ethernet with internal print server
• Display and Security: SmartScreen graphical display; password-protected printer access
• Dimensions and Weight: 9.8 in H x 18.1 in W x 9.2 in D; 9 lb (4.1 kg), printer only
• Environment: 65-80 degrees F (18-27 degrees C); 20-80% non-condensing humidity
• Power: 100-240 VAC, 50-60 Hz, 1.6 A maximum
• Utilities: Swift ID embedded badging; FARGO Workbench with Color Assist
• Options: Compatible duplex, alternate hopper, magnetic stripe and smart card encoding upgrades; not included
• Fluorescent Printing: Supported with a separately purchased compatible fluorescent-panel ribbon
• Warranty: 3 years on printer and printhead; unlimited-pass printhead coverage with UltraCard media

Fargo EZ YMCKO Color Ribbon

• Part Number: 45100
• Quantity and Yield: One cartridge; up to 250 single-sided prints
• Panels: Yellow, magenta, cyan, resin black, clear overlay; no fluorescent panel
• Compatibility: Fargo DTC4250e and DTC4000
• Cleaning: Integrated card cleaning roller

Asure ID Solo 7 Software

• Part Number: 086511
• Delivery: Digital delivery
• Card Design: Text, photos, logos, linear barcodes
• Records: Up to 200 cardholder records
• Platform: Windows software

White PVC Cards - 500 Count

• Part Number: 81754
• Size: CR80, 3.375 x 2.125 in
• Thickness: 30 mil
• Material and Quantity: 500 white PVC cards; no magnetic stripe or smart chip

Logitech C920S Pro HD Webcam

• Part Number: 960-001257
• Video: Full HD 1080p at 30 fps
• Lens and Focus: Glass lens; autofocus
• Lighting: Automatic light correction
• Audio: Dual microphones
• Privacy: Privacy shutter
• Connection: USB

Included Setup Accessories

• Connection: USB cable
• Power: US/international power cords
• Documentation: Printer driver and user guide CD; quick start guide
• Cleaning: 3 cleaning cards
