Fargo DTC1500 Single Sided Photo ID System

In-House Badges with Network Connectivity

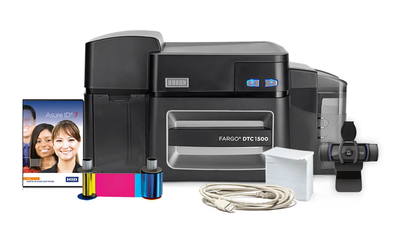

Set up a dedicated card issuance station for a school, healthcare facility, office, or membership organization. This Fargo DTC1500 kit combines a single-sided ID card printer with a 500-print YMCKO ribbon, 500 white CR80 30 mil PVC cards, Asure ID Solo 7 software, and a Logitech C920S Pro HD webcam. USB 2.0 supports a local workstation, while standard Ethernet and an internal print server allow network printing.

Color Printing and Readable Credentials

The 300 dpi direct-to-card process prints photos and graphics in color, with resin black for names and barcodes. A full-color YMCKO card prints in approximately 16 seconds. The 100-card input and up-to-100-card output hoppers help handle enrollment batches and replacement badges with fewer interruptions.

Security Features for Daily Issuance

A custom watermark can place your logo or text in the card's overlay. Resin scramble helps obscure information left on a used resin panel, while password protection and AES-256 encryption add protection to printer operation and network data. Adjustable resin threshold settings give operators control over black-panel use for text and barcodes.

Included Printing Supplies

The Fargo 45610 YMCKO ribbon yields up to 500 single-sided prints. Yellow, magenta, and cyan create color images; resin black defines text, and the clear overlay finishes the card surface. An integrated cleaning roller supports routine card cleaning. The 500 blank PVC cards are standard CR80 size, 30 mil thick, without a magnetic stripe or smart chip.

Design Cards and Capture Photos

Asure ID Solo 7 is delivered digitally and supports text, logos, photos, linear barcodes, and storage of up to 200 cardholder records. The C920S webcam provides 1080p video at 30 fps, autofocus, automatic light correction, and a privacy shutter for the enrollment station.

Setup and Future Options

A USB cable, printer driver and user guide CD, and US/international power cords are included. The printer and printhead have a three-year warranty. Compatible duplex, lamination, and encoding upgrades are available separately; this bundle is configured for single-sided printing.

Fargo DTC1500 Single-Sided Printer

• Part Number: 51400
• Technology: Direct-to-card dye-sublimation / resin thermal transfer; edge-to-edge
• Resolution: 300 dpi continuous tone; up to 16.7 million colors
• Print Speed: Approx. 16 sec/card YMCKO; 6 sec/card K; processing and encoding time excluded
• Hoppers: 100-card input; up to 100-card output with 30 mil cards
• Card Formats: CR80 (3.375 x 2.125 in); CR79 (3.313 x 2.063 in)
• Card Thickness: 9-40 mil
• Card Materials: PVC or polyester with polished PVC finish; 100% polyester requires monochrome resin
• Connectivity: USB 2.0 and Ethernet with internal print server
• Security: Custom watermark overlay, resin scramble, password protection, AES-256 network data encryption
• Print Controls: Adjustable resin threshold; color-changing status buttons
• Dimensions and Weight: 9.8 in H x 18.7 in W x 9.2 in D; 11 lb (5 kg), printer only
• Operating Conditions: 65-80 degrees F (18-27 degrees C); 20-80% non-condensing humidity
• Power: 100-240 VAC, 50-60 Hz, 1.6 A maximum
• Utilities: Swift ID embedded badging; FARGO Workbench with Color Assist
• Upgrades: Compatible duplex, lamination, magnetic stripe and smart card encoding options; not included
• Warranty: 3 years on printer and printhead; unlimited-pass printhead coverage with UltraCard media

Fargo YMCKO Color Ribbon

• Part Number: 45610
• Quantity and Yield: One ribbon; up to 500 single-sided prints
• Panels: Yellow, magenta, cyan, resin black, clear overlay
• Compatibility: Fargo DTC1500
• Card Cleaning: Integrated cleaning roller

Asure ID Solo 7 Software

• Part Number: 086511
• Delivery: Digital delivery
• Design Features: Text, photos, imported logos, linear barcodes
• Record Storage: Up to 200 cardholder records
• Platform: Windows software

White PVC Cards - 500 Count

• Part Number: 81754
• Format: CR80, 3.375 x 2.125 in
• Thickness: 30 mil
• Material: White PVC; no magnetic stripe or smart chip
• Quantity: 500 cards

Logitech C920S Pro HD Webcam

• Part Number: 960-001257
• Video: Full HD 1080p at 30 fps
• Optics: Glass lens, autofocus, automatic light correction
• Audio: Dual microphones
• Privacy: Privacy shutter
• Connection: USB

Included Accessories

• Connection: USB cable
• Power: US/international power cords
• Documentation: CD with printer drivers and user guide
