Description

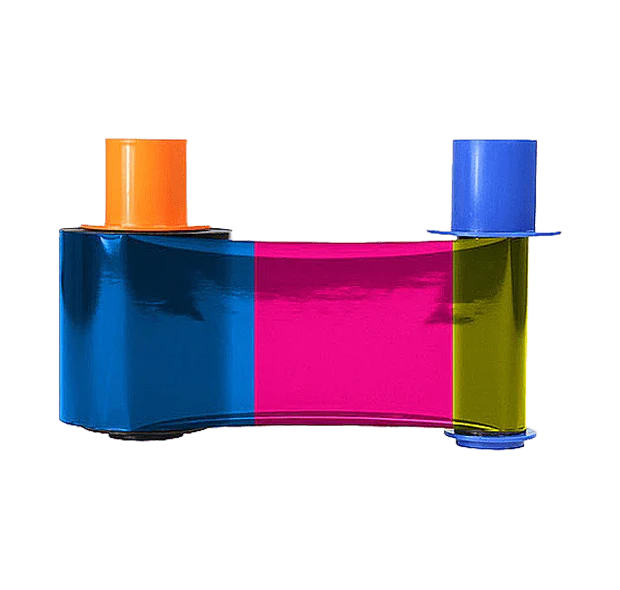

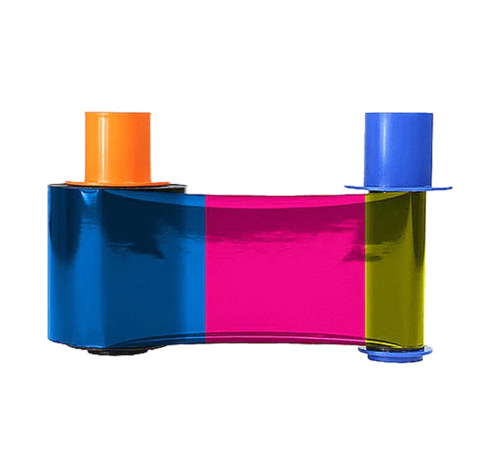

This genuine HID FARGO YMCKOK cartridge is made for dual-sided color card workflows on the FARGO DTC1500. It prints full-color images and graphics on the front of the card, then uses the additional resin black panel for back-side text, barcodes, cardholder data, or simple line art. The clear overlay panel helps protect the printed color area from fading. With a 600-image yield and included cleaning roller, it is useful for ID programs that need efficient two-sided credential printing.
Specifications
- Ribbon Type: YMCKOK dual-sided color ribbon cartridge
- Part Number: 045631 (replaces discontinued 045611)
- Yield: Up to 600 images
- Panel Configuration: Yellow, Magenta, Cyan, Resin Black, Clear Overlay, and second Resin Black panel
- Includes: Ribbon cartridge with cleaning roller
- Compatibility: HID FARGO DTC1500 card printer
- Application: Full-color front-side printing with black text, barcodes, or data fields on the back of the card
- Ideal Use: Dual-sided employee IDs, access credentials, student cards, healthcare badges, and membership cards
- Benefits: Combines photo-quality color, a protective overlay, and a second black panel for efficient two-sided card layouts without using full-color panels on the reverse side
- Printer Update Note: To help ensure optimal color performance and reduce the risk of ribbon breaks, complete the required printer updates before using this ribbon. Update the FARGO DTC1500 firmware to version 3.7.0.8 or later using the HID FARGO DTC1500 firmware download page, install printer driver version 5.6.0.8 or later using the HID FARGO DTC1500 Windows printer driver download page, and apply the Gen4StrbC900.ti3 color profile. Keep the printer connected and powered on during the firmware update, do not interrupt the process, then restart the printer and print a test card to confirm color output.
