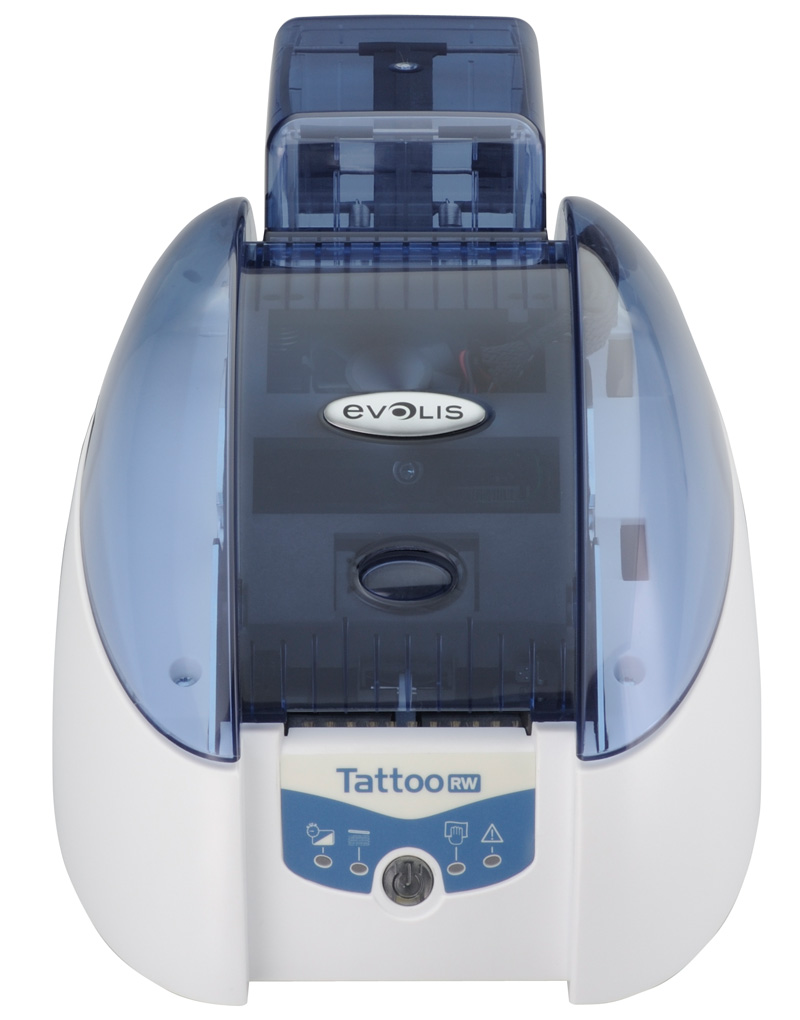

Evolis Tattoo 2 Rewrite Single Sided Brilliant Blue Printer TTR201BBH Specifications
General Specification- Color printing module
- 300 dpi printhead forpremium quality printing (11.8 dots/mm)
- USB and Ethernetconnections
- 16 MB RAM
- Detachable feederwith a capacity of 100 cards (0.76 mm or 30 mil)
- Detachable outputhopper with a capacity of 15 cards (0.76 mm or 30 mil)
- 1-Button and 4-LEDcontrol panel
- Printer color: BrilliantBlue
Other specifications
Encoding options:
- HiCo/LoCo Magnetic stripeencoder ISO 7811 or JIS2
- Contactless encoder ISO14443A & B
- Mifare
- DesFire (USB connection)
Print Mode: Direct thermal printingand erasing on rewritable material
Maximum print area: 48 mm x 76 mm (1.89 x 2.99)
Erasing & Printing Speed:
- 8 seconds (manual)
- 12 seconds (card feeder)
3-Track ISO magnetic encoding: 4 seconds per card
Card feeding: Manual card insertion anddelivery
Card-feeder insertion and delivery to removable hopper
Automated Mode: selects a card from the feeder if no cardis inserted manually
Card format: CR-80 ISO 7810(53.98 mm x 85.60 mm 2.125 x 3.37)
Card type:
- Rewritable thermochromic material.
- Mitsubishi Black & Blue
- Ricoh upon request
- Other material upon request and validation
Card thickness: From 0.5 mm to 0.76 mm (20 to30 mil)
Resident fonts:
- Arial 100, Arial bold 100.
- Barcode Code 39,2/5 interleaved
Supported platforms:
- Windows XP and Vista, 32 & 64 bits
- Windows 2003 Server and Windows 2000 drivers availableupon request depending on system configuration
Interface: USB & Ethernet (USBcable supplied)
Printer Form Factor
Without output hopper: 166 mm(6.54) (H) x 290 mm (11.42) (L) x 187 mm (7.36) (W).
With output hopper: 166 mm (6.54) (H) x 368 mm (14.49) (L) x 187mm(7.36) (W)
Printer weight: 2.4 Kg (5.3 lbs)
Power supply
Power supply: 100/240 VAC, 1.8 A, 50-60 Hz
Printer: 24 V DC,3 A
Environmental conditions
Min/Max operating temperature: 15°/30°C (59°/86° F)
Humidity: 20% to 65% non-condensing
Min/Max storage temperature: -5°/+70°C (23°/158° F)
Storage humidity: 20% to 70% non-condensing
Operating ventilation: free air
Warranty: 2years (printer and print head), limited to 15,000 inserted cards
