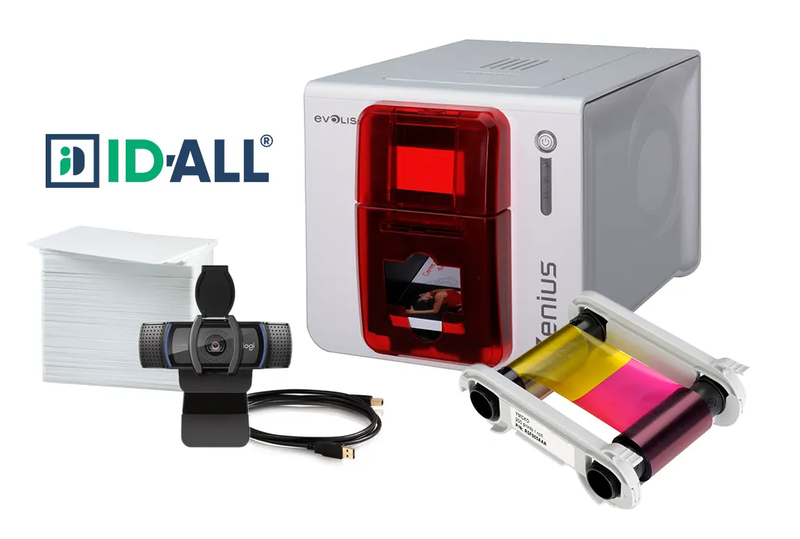

Evolis Zenius Single Sided Photo ID System - Fire Red

Zenius is the one-stop solution to print high-quality single-sided cards, in monochrome or color, and encode technology cards, singularly or in runs, for a variety of applications:

• Employee badges
• Access control badges
• Payment cards
• Transportation passes, and more.

• Evolis Premium Suite®, software, at the core of all new Evolis printers. This software architecture supplies the Print Center, a printing and configuration system that monitors all communications between the printer and the user.


• The Evolis High Trust® range of consumables is specifically designed to deliver premium graphic performances and ease of use. Installing the ribbon cassette is a simple one-step process and thanks to a chip, Zenius instantly identifies the ribbon type and configures all settings accordingly.

Technical specifications

This section presents your printer’s technical printing properties.

General technical features

• Single side print module, edge-to-edge printing
• Color sublimation and monochrome thermal transfer
• 300 dpi print head (11.8 dots/mm)
• 2 million colors
• 16MB RAM

Printing speed

Full card print

• YMCKO 120 cards/hour
• Monochrome 400 cards/hour

• Color up to 150 cards/hour
• Monochrome up to 500 cards/hour

• Automatic or manual feeder
• Feeder capacity: 50 cards (0.76mm – 30 mil)
• Output hopper capacity: 20 cards (0.76 mm – 30 mil)
• Card thickness: 0.25 to 0.76mm (10 to 30 mil), adjustment using the gauge
• Card types: PVC and composite PVC cards, PET, ABS1 and special clear overlaid cards (Under specific conditions)
• Card format: ISO CR80 - ISO 7810 (53,98 mm x 85,60 mm)

Ribbons

To maximise the quality and lifetime of the printed cards, the service life of your print head and the overall reliability of your printer,use Evolis High Trust® ribbons.

• Automatic identification and setting
• Ribbon inserted in a cassette to make handling easier
• Graphic notification of the ribbon level (almost finished, finished)
• Integrated ribbon saving form monochrome printing

• Ribbon:
• YMCKO: 100 prints/roll
• KO: 300 prints/roll
• Monochrome ribbons: up to 1000 prints/roll1
• Hologram ribbon: 400 prints/roll

¹ Under specific conditions

Ports/connectivity

• USB 1.1 (compatible 2.0)
• Ethernet port available as an option.

• LEDs
• Graphic printer notifications (Dependant on your version of Windows):
• Feeder empty
• Cleaning alerts
• Ribbon nearly finished/finished warning
• Etc.

Software

• Supplied with Evolis PremiumSuite® for Windows:
• Printer driver
• Evolis Print Center for the administration, management and configuration of the printer
• Evolis Printer Manager for two-way graphic notification (Requires .net 4.0 client profile version)
• Compatible with Windows: XP SP2; Vista 32/64, W7 32/642

• Supplied with eMedia CS card designer (trial version valid for 30 days to be downloaded from Mediasoft Website)

• Other platforms:
• Mac: on request
• Linux: on request

Warranty conditions

• 2 years' warranty (printer and print head)

Dimensions and weight

• Dimensions (H x W x L): 195 x205 x 310 mm
• Weight: 3.3 kg

Acoustics (tested in accordance with ISO 7779)

• Sound pressure in assistant positions L_pAm (color mode YMCKO)
• In operation: 46 dB (A)
• Standby mode: background noise level

• Kensington® security lock
• Data encryption for magnetic encoding (Available for the ‘Expert’ range and above)

Eco-design and certifications

• Standby mode and reduced power consumption
• Printer Energy Star certified
• Printer meets the Energy Related Products Directive, ErP, 2009/125/EC

Contents of the packaging

• Printer
• CD-ROM with printer driver, user manuals
• eMedia CS Card Designer: a test version valid for 30-days can be downloaded from Mediasoft’s web site
• Cleaning equipment
• USB cable
• Power supply unit
• Power supply lead (differs according to region)

Options & accessories

• Colors available: Fire red and Grey Brown
• Ethernet TCP-IP1
• Encoding options (Available for the ‘Expert’ range and above)
• Can be combined, fitted on site using additional modules (Available for the ‘Expert’ range and above)
• Magnetic stripe encoder
• Chip contact station/
• Smartcard encoder
• Contactless card encoder
• Others on request

Certifications and declaration of conformity

• CE, FCC, IEC, VCCI, CCC, KC
• ErP 2009/125/CE, Energy Star ,RoHS
• 13.56 MHz, PLL/ASK/semi-duplex operation

Power supply

• Power supply module: 100-240Volts AC, 50-60 Hz, 1.8A
• Printer: 24 Volts DC, 3 A

Environment

• Min/max operating temperature:15° / 30 °C (59° / 86 °F)
• Humidity: 20% to 65% without condensation
• Min/max storage temperature: -5°/ +70 °C (23° / 158 °F)
• Storage humidity: 20% to 70%without condensation
• Ventilation in operation: open air

Other

• Resident fonts


• Arial 100, Arial bold 100
• Bar codes: code 39, code 128, EAN 13, 2/5 interweaved
