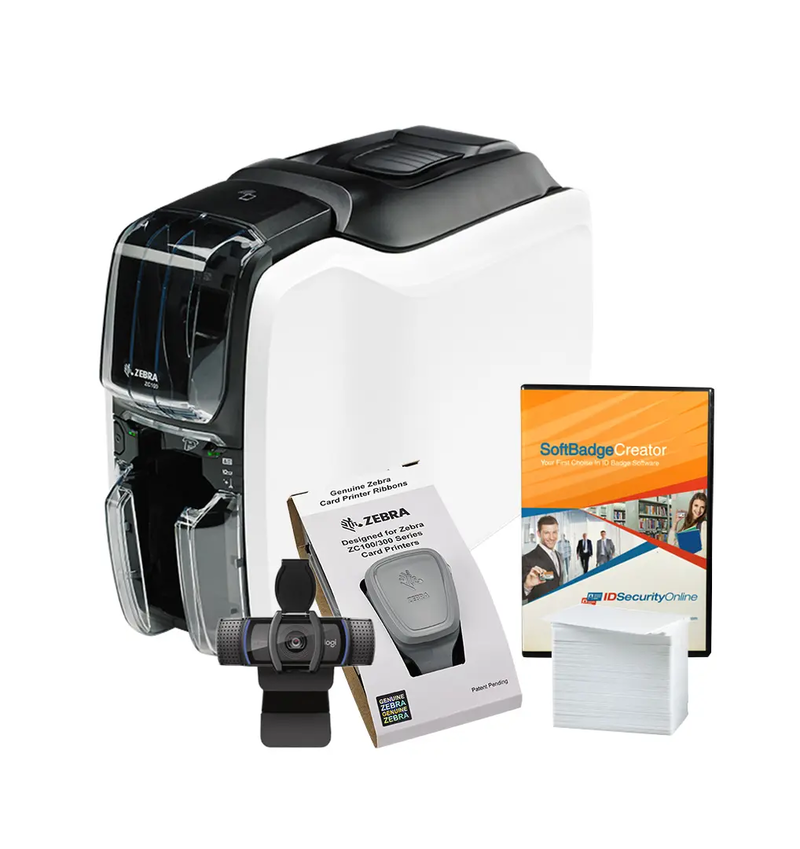

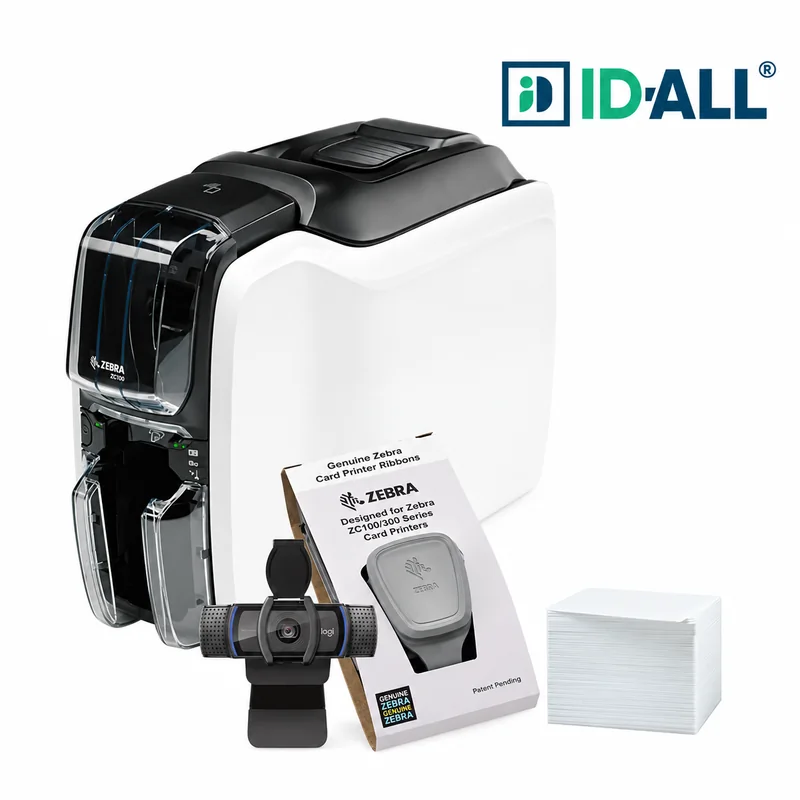

Zebra ZC100 Single-Sided Photo ID System

ADVANCED SECURITY

Printer and host authentication
Advanced security features enable printer-to-host authentication to prevent printing from unauthorized applications or devices.

AES data encryption
Government-grade encryption protects the most sensitive data during printing, such as account numbers.

FAST AND FLEXIBLE PRINTING

Fast single-sided color and monochrome printing
We took a good thing and made it better. The ZC100 prints up to 30% faster in monochrome and 15% faster in color than its predecessor, Zebra’s ZXP Series 1 card printers.

Basic encoding options
Whether you are printing employee badges, ID cards, season passes and membership cards or credit and debit cards, you can choose the encoding option of your choice. Add a ‘swipe-andgo’ magnetic stripe when you print cards. Or use the ZIP Pocket with our new Software Development Kits (SDKs) to easily add a third party contactless encoder to create ‘pass through’ contactless cards.

BOOST VALUE WITH NEW CAPABILITIES AND THE RIGHT SUPPORT

Get unmatched value with Print DNA — only from Zebra
The printer hardware is just the start of what you need to maximize the value of your printers. That’s why we created Print DNA — because what’s inside your printer matters. The Print DNA family of solutions brings unmatched ease of use, ease of integration and security to card printing, streamlining your business processes, improving operational efficiency and reducing development and deployment time and cost.

Protect your investment with Zebra’s superior support services
No matter what level of support you need, there is a Zebra support service that is just right for your business. With Zebra OneCare, no matter what happens to your printer, it’s covered. If you just need access to technical support, choose Zebra’s Technical Software and Support (TSS). And if you want help setting up and configuring the hundreds of settings on local and remote ZC100 printers, our Install & Configuration Assistance (ICA) Select program provides the support you need.

• 300 dpi (11.8 dots/mm) print resolution
• 2 GB flash memory
• Image size: 1006 x 640 pixels
• Auto calibration of ribbon
• USB 2.0 connectivity
• 100 card capacity auto-adjusting input hopper (30 mil)
• 100 card capacity output hopper (30 mil)
• Manual card feeding capability with LED bezel
• 3 Tricolor printer status indicator lights
• Kensington® secure lock slot
• Printer host authentication and data encryption
• Print Touch NFC tag and Quick Help QR code for online printer help and documentation access
• Two-year unlimited warranty on printer and printhead

• Dye-sublimation thermal transfer direct to card print method
• Full-color or monochrome printing
• Single-sided printing
• Edge-to-edge printing on standard CR-80 media

• YMCKO: 150 cph
• Monochrome: 700 cph

• YMCKO* - 200
• ½ YMCKO* - 400
• Black Monochrome* - 2000
• Black Monochrome - 1500
• White Monochrome* - 1500
• Red Monochrome - 1500
• Blue Monochrome - 1500
• Gold Monochrome  - 1500
• Silver Monochrome  - 1500

• *Zebra intelligent technology automatically detects and authenticates ribbon
• Cleaning roller is included with each ribbon
• Two available cleaning kit options: your choice of two (2) or five (5) isopropyl alcohol cleaning cards (1,000 images/card)

• Card Thickness: 10-40 mil
• Card Size: CR80 ISO 7810 ID-1 format, CR79
• Card Material: PVC and PVC composite
• Adhesive back and writable back cards
• Spot color or monochrome printing only on < 20 mil thick cards and CR79 cards

• Operating Temperature: 59º F to 95º F/15º C to 35º C
• Storage Temperature: 23º F to 158º F/-5º C to 70º C
• Operating Humidity: 20% to 80% non-condensing
• Storage Humidity: 20% to 90% non-condensing
• Media Storage:
• Temperature: 41º F to 77º F/5º C to 25º C
• Humidity: 35% to 65% non-condensing

• Auto-switching single-phase AC power
• Operating range: 90-132VAC and 190-264VAC RMS
• Frequency range: 47-63 Hz
• FCC Class A

• 10.2 in. H x 6.2 in. W x 15.1 in. D
• 258 mm H x 157 mm W x 383 mm D

• 8.6 lbs (3.9 kg)

• USB 2.0 — Standard
• Built-in 10/100 Ethernet — Optional
• 802.11ac with MFi — Optional

• Magnetic stripe encoder — ISO 7811 (new and pre-encoded; tracks 1,
• 2, and 3; high and low coercivity; stripe down; 30 mil cards only) *
• Third party contactless encoder integration kit*

• Windows Server® 2003 (32 bit)
• Windows Server 2008 (32 and 64 bit),
• Windows 7 (32 bit and 64 bit)
• Windows 8 and Win 8 Pro (32 bit and 64 bit
• compatible)
• Windows Server 2012 (64 bit)
• Windows 10 (32 bit and 64 bit)

• Color coded printer status indicators for
• the operator
• Black panel extraction and controls for
• specialty ribbon panels with image preview
• Configuration utility to limit access by
• operators to change image quality and
• printer settings
• Advanced printer configuration, security
• settings and diagnostics capabilities

• Linux Ubuntu
• Apple iOS 10.2

• Lockable enclosure (field upgradeable option)

• One SDK download supports Android, Java and Windows environments
• Easily build card-printing apps with complete control over print functionality from Windows, Linux, Mac OS and Android environments
• Enable card printing from Android mobile devices
• Incorporate encryption and host authentication
• Includes documentation and source code examples
