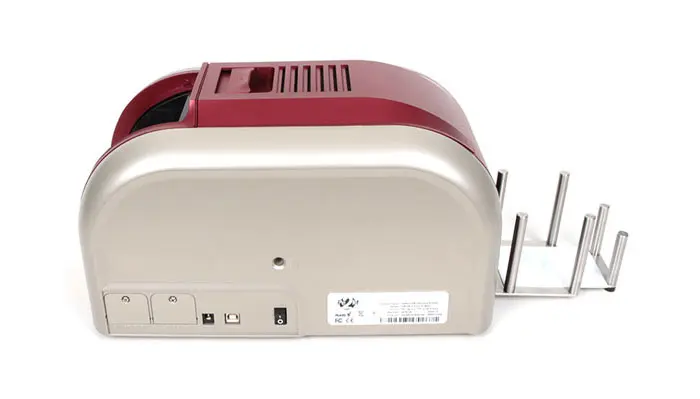

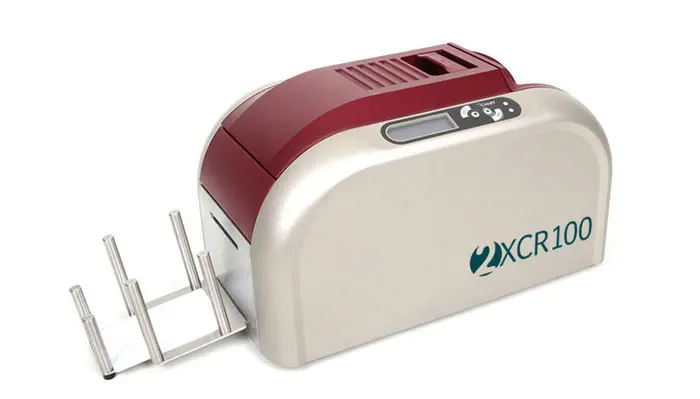

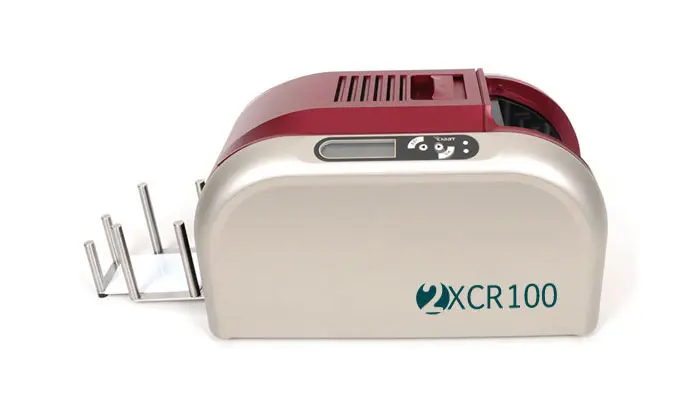

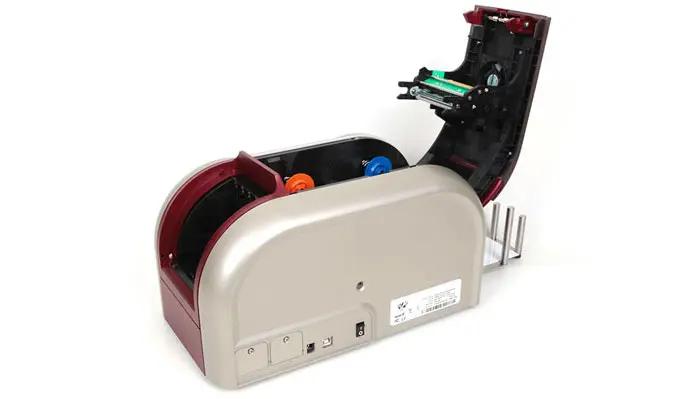

XCR100 High Security Printer for Large Sized Plastic Badges

The XCR100 personalizes oversized badges in the proven CR100 format - 2.63" x 3.88". The device is characterized by its speed and small footprint: Up to 180 cards can be printed per hour, in color. Personalizing them in black will increase the output to 1,400 cards per hour.

It is recommended to preprint the cards. By personalizing CR100 cards with a preprinted frame, you can easily create recognizable high-quality large-format cards that are used for example in hospitals, but also in government agencies as well as in high-security areas.

Various additional modules are available for the XCR100 that can be retrofitted when needed later. There is a duplex module for two-sided printing in a single operation, an Ethernet module for the operation in a network and different encoding modules for RFID technologies.

Besides the YMCKO ribbon and the black ribbon, there are numerous other ribbon options for different project requirements at very attractive prices.

The XCR100 printer is the perfect device to quickly, efficiently and cost-effectively produce professional and cards in oversized CR100 format.

Printing Technology: Dye-Sublimation / Thermal Printing

Interface: USB 1.1, USB 2.0

Ribbons:

• Full color YMCKO for 200 cards
• Monochrome ribbons for 2.000 prints each available in Black (K), White, Blue, Red, Green, Silver and Gold

Printing Resolution: 300 dpi

Printing Speed:

• Full color (YMCKO) up to 180 cards per hour
• Monochrome print up to 1.400 cards per hour

Card Size: CR100 98.5 x 67 mm (2.63 x 3.88 inch)

Card Thickness: from 0.25 mm (10 mil) to 1 mm (40 mil)

Card Feeder for 100 cards (0.76 mm / 30 mil thickness)

Output Hopper for 50 cards (0.76 mm / 30 mil thickness)

Driver for Windows 2000, XP, Vista, Windows 7 (32/64-bit), Windows 8 (32/64-bit), Mac OS 10.5-10.8,

Windows 10 (32/64-bit)

Encoding Options:

• contactless (RFID) encoder: Mifare
• contactless (RFID) encoder: UHF

Additional Options: Ethernet interface, Mini-PC for cloud connection, Duplex Unit

Dimensions: Printer: 197.8 mm (B) x 354 mm (L) x 204 mm (H) (without feeder and output hopper),

7.79 inch x 13.94 inch x 8.03 inch (without feeder and output hopper)

Printer boxed: 300 mm (B) x 500 mm (L) x 300 mm (H), 11.81 inch x 19.69 inch x 11.81 inch

Weights: Printer: 5.2 kg / 11.46 lbs. (without options), Printer boxed: 7.4 kg / 16.31 lbs. (without options)

Warranty: 2 years
