IDP SMART-81 Magnetic Stripe Enc. Standard (ISO 7811 (TrackI,II,III Read/Write), Hi-Co / Lo-Co Enc.)

IDP
Item#: 653538
Manufacturer: IDP
649.00 Retail Price: $649.00
For use with: IDP Smart-81

Description

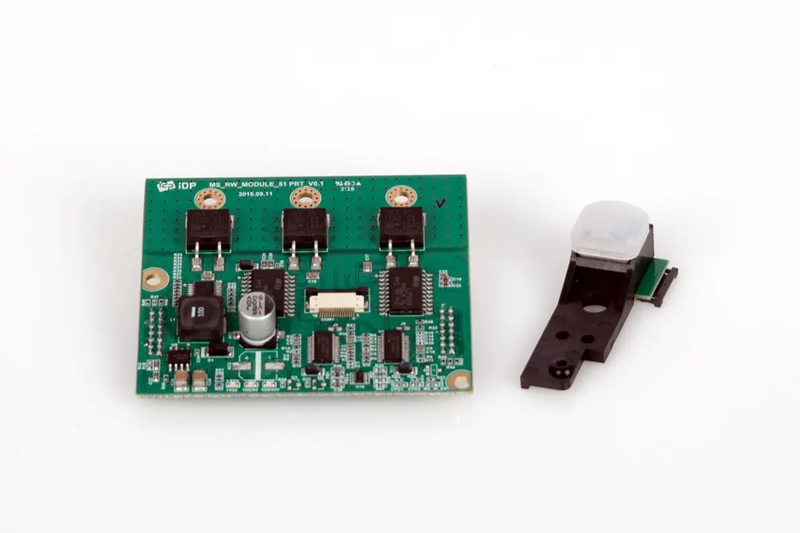

IDP SMART-81 Magnetic Stripe Encoder, Standard (ISO 7811 – Track I/II/III Read/Write, Hi-Co / Lo-Co Encoding)

Equip your SMART-81 series printer with powerful magnetic stripe encoding capabilities. This internal, factory-installed module enables full personalization of cards with magnetic stripes, making it perfect for applications such as financial cards, access control, membership, and transportation.

  • Comprehensive Magnetic Stripe Support: Reads and writes data on all three standard tracks (I, II, III).

  • Hi-Co and Lo-Co Compatibility: Supports both high coercivity (Hi-Co) and low coercivity (Lo-Co) magnetic stripes for versatile encoding.

  • Seamless Integration: Internal module connects directly via USB—no external cables or devices required.

  • Industry Compliance: Meets ISO 7811 standards for card encoding, ensuring broad compatibility and reliability.

Ideal for banks, clubs, hotels, schools, and any organization issuing secure, magnetic stripe-based credentials.

Specifications

Supported Standard: ISO 7811 (Track I, II, III Read/Write)
Encoding Tracks: Track I, II, III
Encoding Type: Read and Write
Coercivity: Hi-Co (High Coercivity), Lo-Co (Low Coercivity)
Card Type: Magnetic Stripe Cards compliant with ISO 7811
Integration: Internal, factory-installed module
Connection: USB (internal; no external dongle or cable)
Compatible Printers: IDP SMART-81 Series (e.g., SMART-81D, SMART-81L, etc.)
