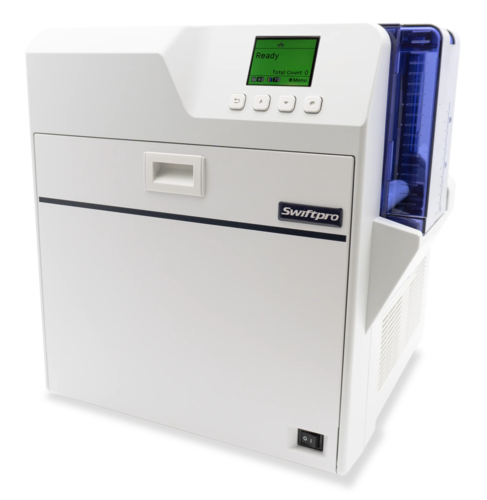

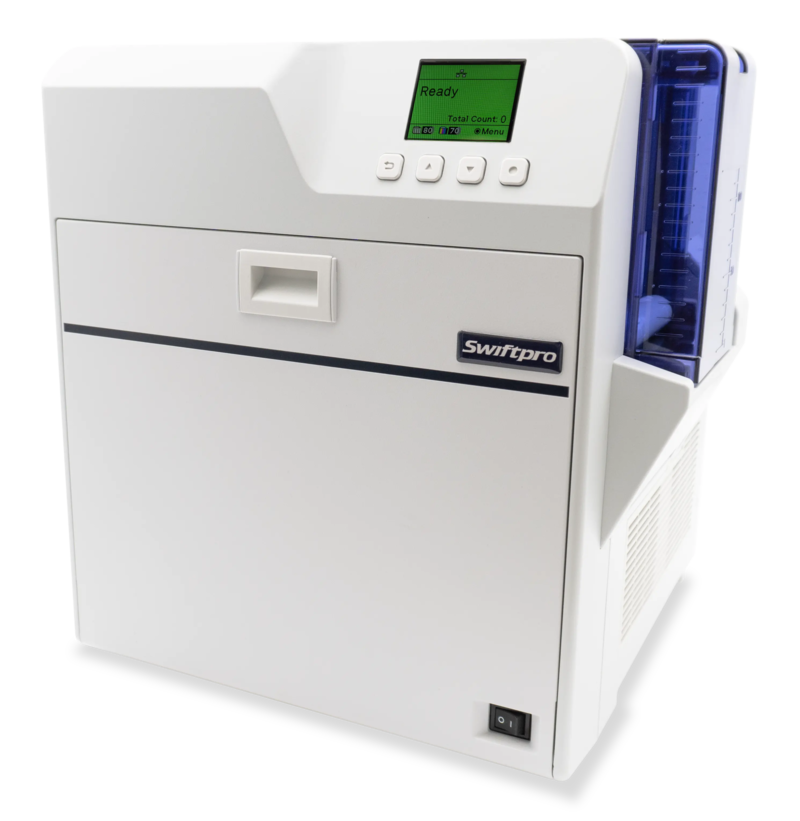

Swiftpro K65 600dpi Dual Sided Retransfer ID Card Printer
Swiftpro K65 600dpi Dual Sided Retransfer ID Card Printer

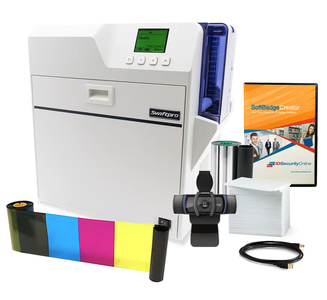

Looking for a Complete ID Card System?
Our photo ID systems include everything that you need to start printing your cards within minutes. Each system includes an ID card Printer, ID card software, a camera, PVC cards and a ribbon.
Yes, I want to see the Swiftpro K65 Dual Sided Retransfer Photo ID System
Swiftpro K65 600dpi Dual Sided Retransfer ID Card Printer Description
Overview
- Dual-sided retransfer ID card printer for high-volume, high-security card issuance
- 600 dpi x 600 dpi ultra-high resolution for crisp text, microtext, and vivid color images
- Fast Mode: Up to 150 cards/hour; Fine Mode: Up to 120 cards/hour
- Retransfer print technology with edge-to-edge coverage, including patch/overlay protection for durability
- Supports magnetic, contact and contactless smart card encoding
- Large 120-card input and output hoppers, with optional 250-card hopper
Security
- Patented Security Erase function scrambles residual ribbon data to protect personal information
- Dye-sublimation UV printing (256 gradations) for invisible security marks visible under UV light
- IPSec (IPv6/IPv4) network encryption safeguards data during network printing
- Electronic locking system for input hopper, ribbon, and film cartridges
Durability
- Dual InTM retransfer film protection (INTM2)
- Patch/Overlay security layer
- Bend Remedy feature helps prevent card warping
- Robust build quality; 36-month printer warranty, lifetime printhead warranty
Image Quality
- 600 dpi resolution supports fine details and microtext printing
- True edge-to-edge, photo-quality card output
Versatility
- Supports a range of encoding options: magnetic stripe, contact and contactless smart cards (RFID)

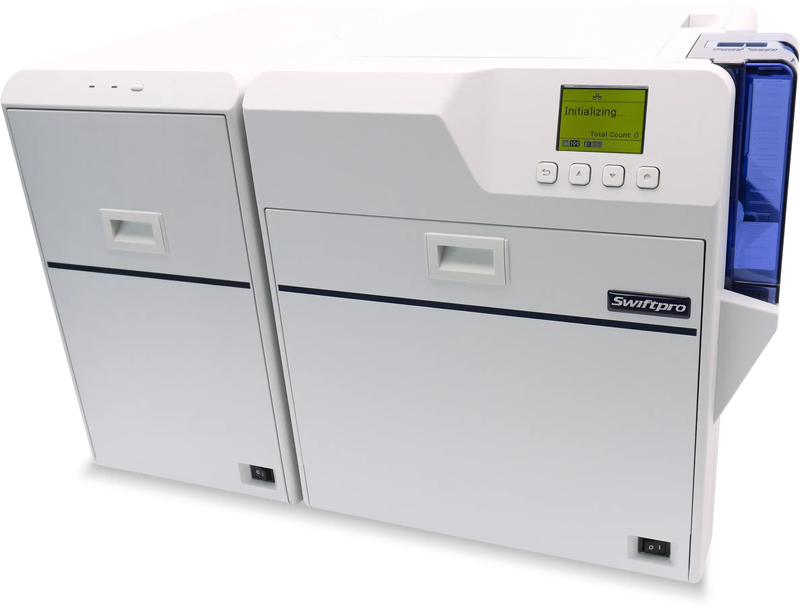

- Laminator connectivity available for additional security (single/dual side)
- Compatible with a wide variety of card materials (PVC, PET, polycarbonate, etc.)
- Large, multi-language color LCD panel for user-friendly operation
- Mini PC storage bay (Max. 220mm x 208mm x 44mm)
Swiftpro K65 600dpi Dual Sided Retransfer ID Card Printer Specifications
Printing System
- Dye sublimation re-transfer
- Printing density: 600dpi x 600dpi
Printing Overview
- Double-sided printing
- Full color, 256 gradations (dye-sublimation printing)
- UV printing
- Text, numeric, logos, 1D/2D barcode support
Card Personalization Speed
- Fast Mode: ~25 seconds/card (150 cards/hour)
- Fine Mode: ~30 seconds/card (120 cards/hour)
- YMCKK Double sided printing: 54 sec/single card
Standard Features
- Card hopper: 120 cards
- Card output hopper: 120 cards
- Optional card hopper: 250 cards
- Card thickness: 10 – 40 mil (0.25mm ~ 1.00mm)
- Card size: ISO 7810 Format, CR80, ID-1
- Card Material: PVC, PC, PET, PET-G
Dimensions, Weight, & Operating Environment
- Dimensions (WxHxD): 13.6" x 14.17" x 12.83" (346mm x 360mm x 326mm) (without card stacker)
- Weight: Approx. 30.86 lb (13.7 kg)
- Operating temperature: 59°F to 86°F (15°C to 30°C)
- Humidity: 35% to 70% (YMCK ink, No condensation)
Operating Systems and Security Features
- Microsoft® Windows® 10 32bit / 64bit
- Microsoft® Windows® 11
- Microsoft® Windows® Server 2016, 2019, and 2022
- Interface USB2.0 (Hi-speed / Full Speed), USB HUB interface (Type A Connector)
- Ethernet (100BASE-TX / 10BASE-T)
- Electronic locking system for input hopper, color ribbon and INTM Film
Software Development Kit
- K-Series optional SDK (contact your local sales office)
Encoding Options
- Magnetic stripe encoder
- Smart card contact/contactless (RFID)
Warranty
- 36 months printer warranty, lifetime printhead warranty
