Magicard Ultima Single Sided ID Card System

Magicard Ultima Single Sided ID Card System

Magicard Ultima Single Sided ID Card System

Item#: UltimaSystemSS
Manufacturer: Magicard
Retail Price: $5434.00
Sale Price: $4593.00 ( Save: $841.00 )


  • Windows and Mac OS compatible
  • 3-year warranty on printer and printhead
  • Standard or Custom HoloKote watermark

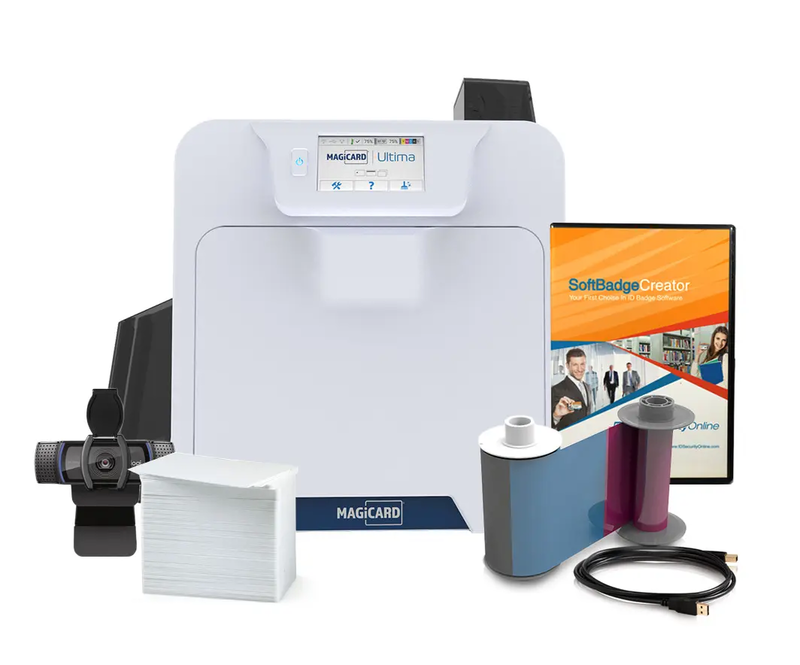

What's Included

  • Magicard Ultima Retransfer Single-Sided ID Card Printer
  • Magicard 1000 Shot Color Film
  • 500 white PVC cards
  • Logitech C920S Pro HD Webcam
  • SoftBadge Creator ID Software
  • USB cable
  • Power Cord
  • Ultra printer driver CD
  • 3-year warranty

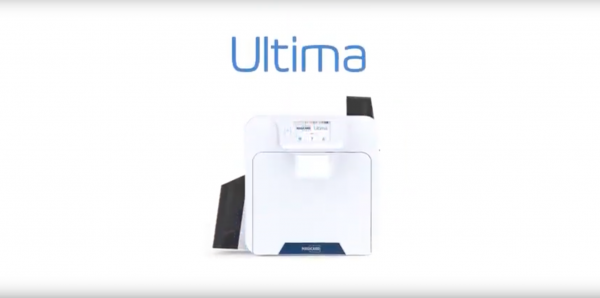

Magicard Ultima Promo

Magicard Ultima Single Sided ID Card System Description

Powered by a high-grade processing unit with an impressive array of features, Ultima is ideal for the localised or centralised issue of high-volumes of secure smart cards.

An intuitive touch screen, with print preview and supplies indicators, provides an easy-to-use interface to Magicard's most advanced and durable print engine.

Ultima enables you to print up to 100 high definition full color cards per hour. The quality of print means staff can quickly and easily identify the facial features on ID cards for comparison against the holder. This makes it the ideal solution for drivers' licences, national ID cards and other cards where security is paramount.

The Ultima retransfer printer comes with built-in visual security via the use of up to 10 secure HoloKote® watermarks. That means that if you choose to do so, you can distinguish different departments with a separate holographic design. For additional built-in security, Ultima exploits the wavelengths of the dye-film so it can fluoresce under UV lighting.

High capacity consumables (1000 prints) and hoppers, combined with a range of encoding options to write secure electronic data to the card, make the Ultima ideal for high volume localised or centralised issuance of secure smart cards.

Magicard Ultima Single Sided ID Card System Specifications

Printer technology

  • 300dpi retransfer

HoloKote® card security

HoloKote® built-in security watermark is printed across the entire card surface, this feature also exploits the wavelengths of the film to fluoresce under UV lighting conditions. Available with 10 watermarks as standard, any of these watermarks can be replaced with your own customised design or company logo through an easy-to-use, but securely encrypted, online delivery method. HoloKote® printing requires the use of secure dye film (YMCKS).

Encoding security options

Magnetic stripe: HiCo and LoCo encoder ISO 7811, JIS2.
Custom formats: Contact - ISO 7816, EMV contact chip.
Contactless: MIFARE® Classic, MIFARE DESFire®, HiD iClass®, ProX and Legic.


3 years MagiCoverPlus or 250,000 panels limited manufacturer's warranty covering electronic/electrical failure and bad workmanship. A loan printer will be provided should the above situation occur and Technical Support are unable to resolve the problem (UK, EU and North America only).

Printer interfaces

  • USB 2.0, 10/100 BASE-T Ethernet


  • Windows 7, 8.1, 10 (32 and 64bit) Windows server, 2008, 2012, 2016. GNU/Linux and Mac OS X 10.9.0 upwards.

Card capacity

  • 200 card feeder, 200 card stacker


  • 16.74kg (36.90 lbs)

Power source

  • External power supply 100-240V 50-60Hz autoranging


  • 334mm L x 458mm W x 431mm H (13.14in L x 18.03in W x 16.96in H)

Print speed

  • Color: up to 100 cards per hour

Operating environment

  • Sheltered office environment 10°C to 30°C (50°F to 85°F)

Card Printer Supplies


The Magicard Ultima Single Sided ID Card System features a 3-year warranty on printer and printhead.

Protect your investment with our extended warranty plans.

To order an extended warranty please call 800-897-7024 Monday thru Friday from 8:30 am to 5pm

All our extended warranty plans include:

  • Toll-free technical support

    Call 800-897-7024 Monday thru Friday from 8:30 am to 5pm or chat with us.

  • Parts and labor

    All parts and labor are included. Printheads are not covered after the first year.

  • Optional printer loaner

    We will send you a loaner while we service your printer so you can keep printing your badges.

  • Questions? Call us today at 800-897-7024 to speak with an ID expert.
