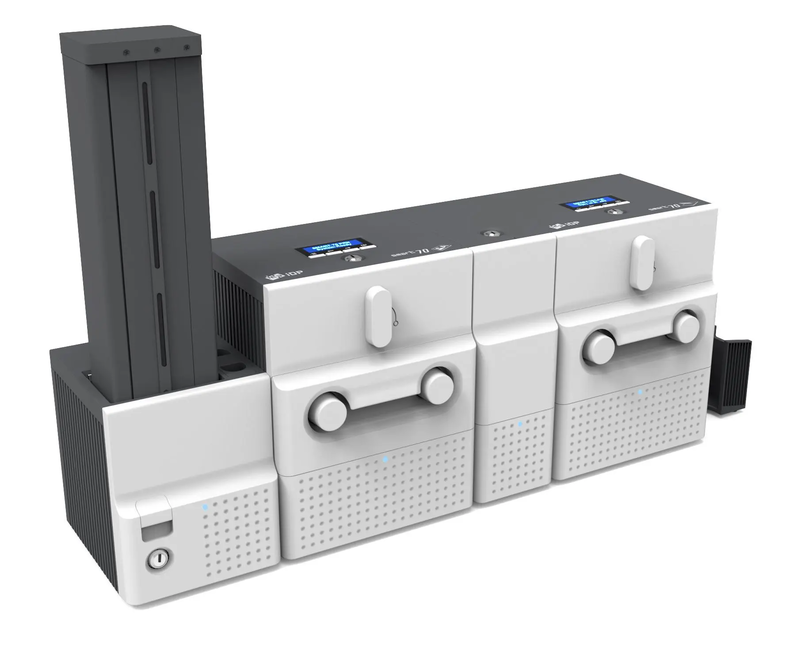

IDP SMART-70 Dual Sided ID Card Printer with Lamination and 100 card exit box

IDP Smart-70 a high-performance large capacity ID card printer designed by the unique modular concept that can support various printer configurations to meet different user requirements

• Dual sided Printing & Laminating
• Input Hopper + Printer + Hybrid Flipper + Laminator + 100 card exit box combination
• High Speed Printing Max. 1,000 cards/h (Mono), Max. 225 cards/h (YMCKO)
• High Speed Laminating 19 sec./card (Single-sided Laminating)

• Large Capacity Max. 500 cards loading
• Drawer type ribbon & Film cartridge
• High Durability / Physical Lock & Kensington Lock
• Installable MS, Contact & Contactless Encoder
• Image Scanning & Barcode Recognition
• Dual Sided Image Scanning (600/300dpi)

Printing

• Print Mode: Dual Sided
• Print Type: Direct Dye-Sublimation
• Print Area: Edge to Edge
• Resolutions: 300dpi

Card

• Card Feeding: Automatic
• Card Size: ISO CR80 (54mm x 86mm / 2.12” x 3.38”)
• Card Thinkness: 0.38mm (15mil) ~ 1.2mm (47mil)
• Card Type: PVC, Composite PVC, PET

Print Speed

• Monochrome: 3.6 sec./card (1,000 cards/hour)
• YMCKO: Max. 16 sec./card (225 cards/hour)
• YMCKOK: Max. 22 sec./card (164 cards/hour)

Capacity

• Input Hopper: Card 500 or 300 cards Cartridge Selectable
• 100 card exit box

Laminating

• Type: Direct Heating Lamination
• Speed: 19 sec./card (Single-sided Laminating)

Laminating Film

• Type: Clear, Holographic
• Thickness: 0.6mil, 1.0mil
• Capacity: 500 Cards/Roll

Scanner Option

• Image Scanner: Selectable 300 & 600 dpi Dual-sided image scanning resolution
• Scanning Speed: 4.5sec/card (300 dpi), 6sec/card (600 dpi)
• Barcode Recognition: 1D & 2D Barcode Recognition (Front/Back)

Sensor

• Residual Q'ty Sensor: Near Empty & Empty
• Detection Sensor: Cartridge Mount Status Detectable

System

• Memory: 64MB RAM
• Interface: 2 Line LCD / 4 Buttons / 1 LED Indicator
• Supported Platforms: MS Windows 7/ 8 /10, Mac OS, Linux
• Communication: USB, 2 USB Host, Ethernet
• Power Supply: Free voltage (AC 100/ 220V, 50~60Hz)
• Power Consumption: 24V, 8.3A
• Temperature: 15~35℃
• Humidity: 35~70%

Security

• Physical Lock: Card, Ribbon & Film / Encoder or Error Card
• S/W: PC authentication, Password authentication
• Station Itself: Kensington Lock

Dimensions

• Milimeter: 760 (W) x 214 (L) x 548 (H)
• Inch: 30 (W) x 8.4 (L) x 21.6 (H)

Weight

• Kg/Lbs: Approx. 18.9 Kg/34.4 lbs

Error Card Bin

• Error Card Bin: Ejection device for faulty card is equipped inside Flipper (Max. 30 cards) * If encoder or scanner options are not selected, Error Card Bin will be provided.
