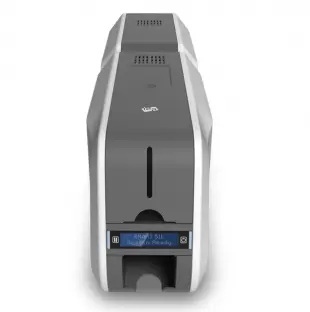

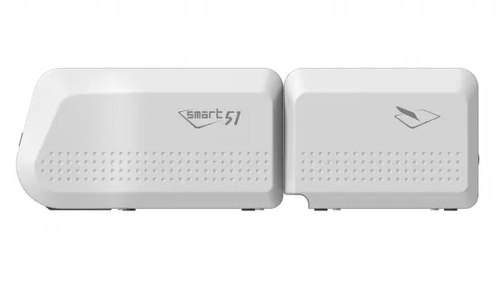

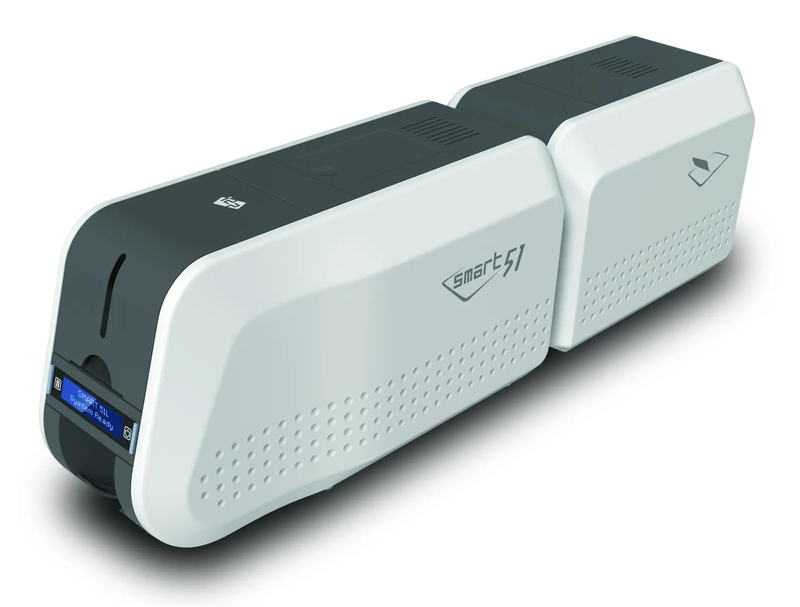

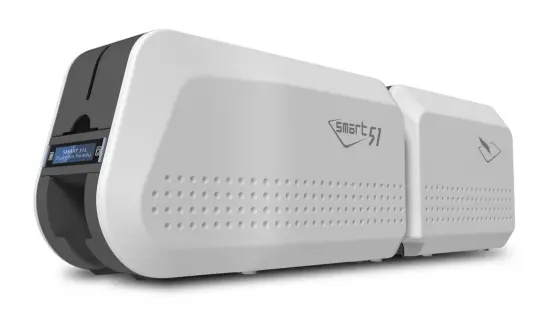

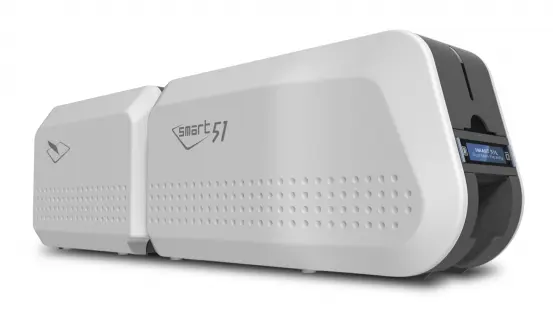

IDP Smart-51L Dual Sided ID Card Printer & Laminator

IDP Smart-51L Dual Sided ID Card Printer & Laminator

IDP Smart-51L Dual Sided ID Card Printer & Laminator

IDP
Item#: 651400
Manufacturer: IDP
4890.00 Retail Price: $4890.00
Encoding:
Communication Option:

Highlights

  • Single- or Dual-Sided Printing and Laminating
  • 300, 600 & 1200dpi with Edge-to-Edge Printing
  • Removable Output Hopper
  • 2 Lines LCD with 2 LED Buttons for Front Operation
  • Holographic Lamination for Visual Security & Card Durability
  • Support of Transparent Cards

What's Included

  • IDP Smart-51L Dual-Sided Printer & Laminator
  • USB cable
  • Power Cord
  • CD With Drivers
  • Manuals & Utility Programs
  • Quick Install Guide
  • 3-Year Warranty

Looking for a Complete ID Card System?

Our photo ID systems include everything that you need to start printing your cards within minutes. Each system includes an ID card Printer, ID card software, a camera, PVC cards and a ribbon. Yes, I want to see the IDP Smart-51S Single Sided ID Card System
IDP's Smart-31 and Smart-51 Promo

IDP Smart-51L Dual Sided ID Card Printer & Laminator Description

IDP’s new SMART-51 is the next generation of its mid-range ID Card Printer platform.

The SMART-51 inherits the most successful and proven elements of the SMART-50 series printer to ensure the reliability. The upgraded SMART-51 will provide the most appropriate card issuance experience.

SMART-51 is upgraded with 10% faster print speed compared to the former SMART-50 series ID Card Printer.

SMART-51 is equipped with the Metal Frame body for the printing engine making sure to maintain long-lasting hardware structure and stable card printing quality.

IDP Smart-51L Dual Sided ID Card Printer & Laminator Specifications

PRINTING

  • Print Mode: Single- or Dual-Sided
  • Print Type: Direct Dye-Sublimation
  • Print Area: Edge to Edge
  • Resolutions: 300dpi (Color & Mono), 600 & 1200dpi (Mono only)

CARD

  • Card Feeding: Automatic
  • Card Size: ISO CR80 or ISO CR79 (Option-Factory installed)
  • Card Thickness: 0.38mm (15mil) ~ 1.0mm (40mil)
  • Card Type: PVC, PET, Composite PVC

Print Speed

  • Monochrome: 5 sec./card (720 cards/hour)
  • YMCKO: Max. 17 sec./card (212 cards/hour)
  • YMCKOK: Max. 22 sec./card (164 cards/hour)

CAPACITY

  • Input Hopper: Card100 Cards / 200 Cards with cover open
  • Output Hopper: CardFront : 40 Cards / Rear : 100 Cards (Optional Rear-side Stacker)

LAMINATING

  • Mode: Single & Dual
  • Film (Clear & Holographic): 0.6mil, 1.0mil
  • Speed (Simultaneous): 22 sec./card (YMCK, Single Lamination)
  • Speed (Simultaneous): 32 sec./card (YMCKK, Single Lamination)
  • Speed (One by One): 43 sec./card (YMCK, Single Lamination)
  • Speed (One by One): 53 sec./card (YMCKK, Single Lamination)

SYSTEM

  • Memory: 64MB RAM
  • Interface: 2 Line LCD / 2 LED Buttons
  • Supported Platforms: Microsoft Windows 7/ 8 /10, Mac OS, Linux
  • Communication: USB, Ethernet, WiFi (Option)
  • Power Supply: Free Voltage (AC 100/ 220V, 50~60Hz)
  • Power Consumption: 96W
  • Temperature: 15~35°
  • Humidity: 35~70%

SECURITY

  • Physical Lock: Input Hopper, Ribbon & Film (Option)
  • Station Itself: Kensington Lock (Option)

DIMENSIONS

  • Milimeter: 165 (W) x 675 (L) x 210 (H)
  • Inch: 6.5 (W) x 26.6 (L) x 8.3 (H)

WEIGHT

  • Kg/Lbs Approx. 8.8 kg/19.4 lbs

ENCODING OPTION

  • Magnetic: ISO 7811 (Track I, II, III Read/ Write, HiCo/ LoCo), JIS II
  • Contact: ISO 7816 A/B/C Card, ISO 7816 1/2/3/4 Microprocessor Card
  • Contactless: ISO 14443 (Type A/ B), MIFARE, DESFIRE, iCLASS, ISO 18092(NFC), Felica

CERTIFICATIONS

  • Certifications: CB, CE, FCC, KC, CCC

Card Printer Supplies

Warranty

The IDP Smart-51L Dual Sided ID Card Printer & Laminator features a 3-year warranty.

Protect your investment with our extended warranty plans.

To order an extended warranty please call 800-897-7024 Monday thru Friday from 8:30 am to 5pm

All our extended warranty plans include:

  • Toll-free technical support

    Call 800-897-7024 Monday thru Friday from 8:30 am to 5pm or chat with us.

  • Parts and labor

    All parts and labor are included. Printheads are not covered after the first year.

  • Optional printer loaner

    We will send you a loaner while we service your printer so you can keep printing your badges.

  • Questions? Call us today at 800-897-7024 to speak with an ID expert.
