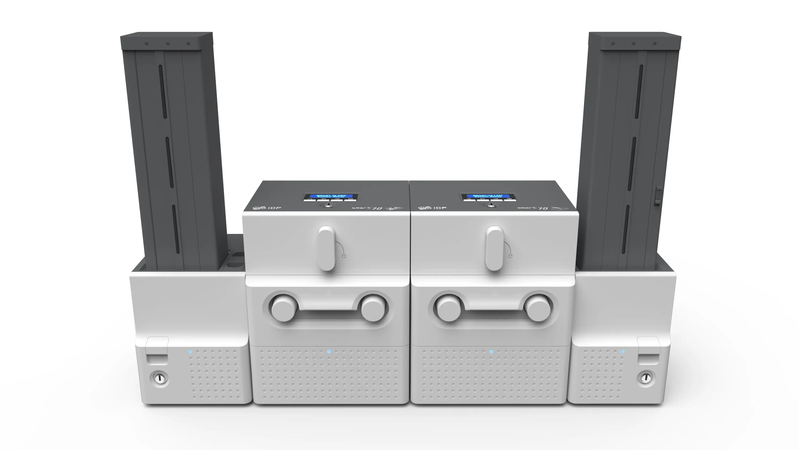

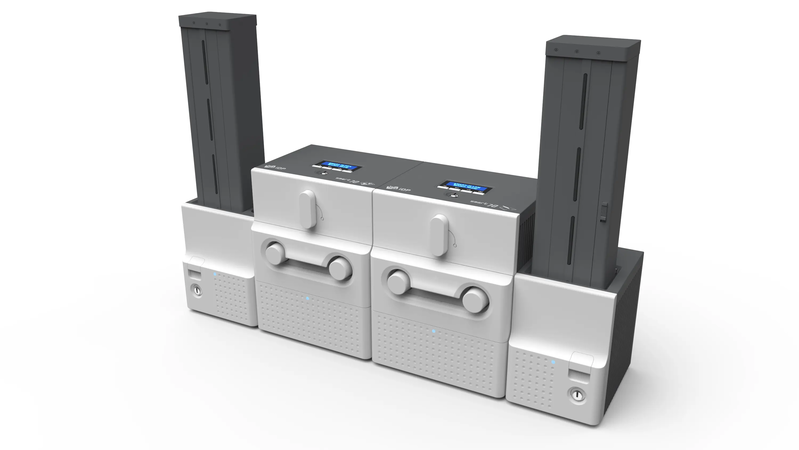

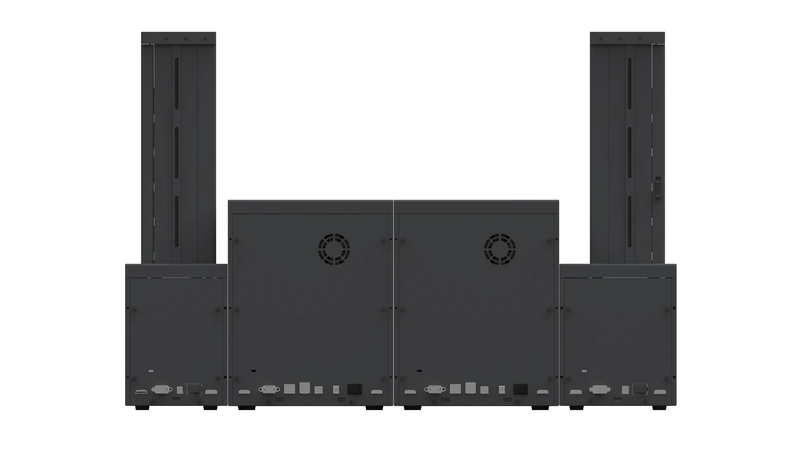

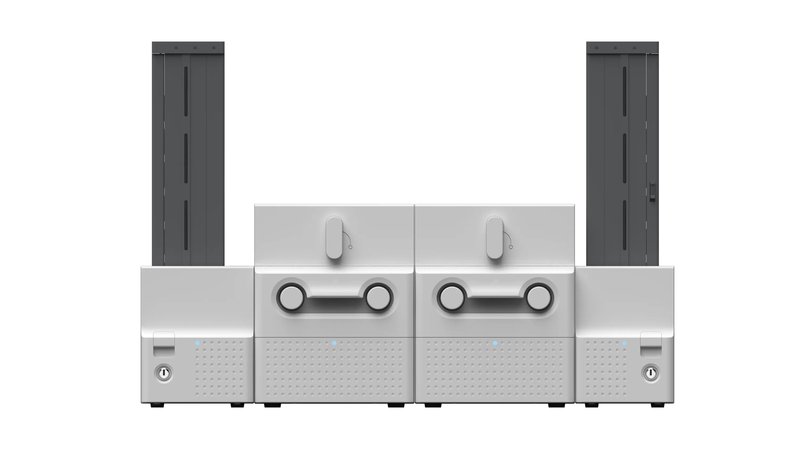

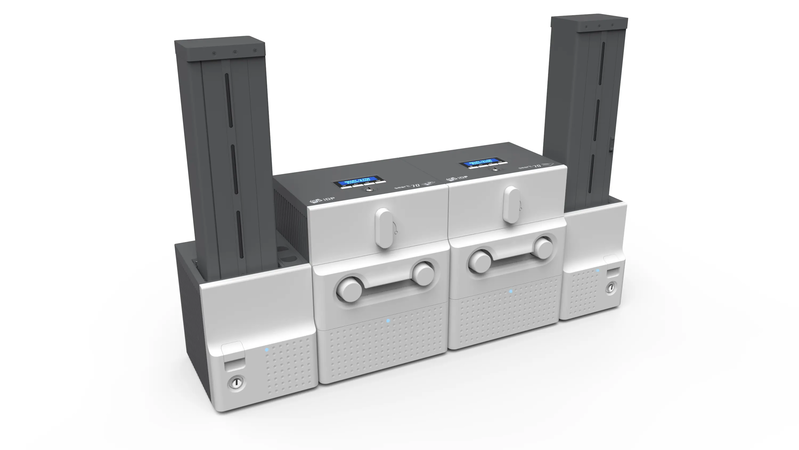

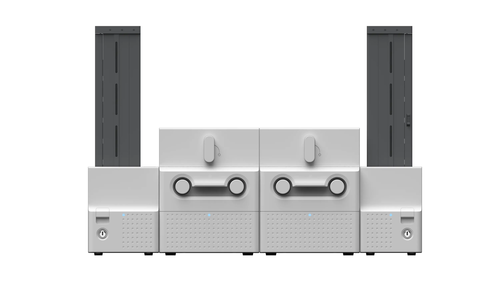

IDP Smart-70 Single Sided ID Card Printer with Lamination, 500-Card Input and Output Hopper

SMART-70 Single-Sided ID Card Printer with Lamination

The IDP SMART-70 Series is a high-capacity, industrial-grade ID card system designed for organizations with large volume card issuance needs. Its modular architecture allows users to configure the system with printing, encoding, lamination, and high-capacity input/output hoppers.

This configuration includes single-sided printing with lamination and 500-card input and output hoppers, making it ideal for secure, high-volume card production environments. The system is built with a durable metal frame and advanced card handling technology to ensure reliable, scratch-free operation.

The SMART-70 features a no-tool upgrade design, allowing easy expansion or reconfiguration by technicians without downtime. High-capacity consumables and hoppers reduce reload frequency and improve productivity.

The integrated laminator provides direct heating lamination with up to 95% patch coverage, enhancing card durability and security. Laminating film capacity of up to 500 cards per roll matches the high-volume workflow.

Advanced security features include physical locks for cards and ribbons, Kensington lock support, and software-based authentication for controlled operation.

PRINTING

• Print Mode: Single-Sided
• Print Type: Direct-to-Card Dye-Sublimation
• Print Area: Edge-to-Edge
• Resolution: 300 dpi

CARD

• Card Feeding: Automatic
• Card Size: ISO CR80 (2.12" x 3.38")
• Card Thickness: 0.38 mm (15 mil) – 1.2 mm (47 mil)
• Card Type: PVC, Composite PVC, PET

PRINT SPEED

• Monochrome: 3.6 sec/card (up to 1,000 cards/hour)
• YMCKO: Max. 16 sec/card (up to 225 cards/hour)

CAPACITY

• Input Hopper: Up to 500 cards
• Output Hopper: Up to 500 cards

SENSORS

• Residual Quantity Sensor: Near Empty / Empty
• Detection Sensor: Cartridge Mount Status Detection

SYSTEM

• Memory: 64MB RAM
• Interface: 2-Line LCD / 4 Buttons / 1 LED Indicator
• Supported Platforms: Windows, macOS, Linux
• Communication: USB, Ethernet
• Power Supply: Free Voltage (AC 100–220V, 50–60Hz)
• Power Consumption: 24V, 2A
• Operating Temperature / Humidity: 59–95°F (15–35°C) / 35–70%

LAMINATION

• Type: Direct Heating Lamination
• Speed: Approx. 14 sec/card (single-sided)
• Film Type: Clear or Holographic
• Film Thickness: 0.6 mil, 1.0 mil
• Capacity: Up to 500 cards per roll

SECURITY

• Physical Locks: Card, Ribbon, Laminator
• System Security: PC Authentication, Password Authentication
• Device Security: Kensington Lock Support

DIMENSIONS & WEIGHT (MODULES)

Printer Module

• Inch (W x L x H): 9.5 x 8.4 x 12
• Millimeter (W x L x H): 240 x 214 x 305
• Weight: Approx. 13.9 lbs (6.3 kg)

Laminator Module

• Inch (W x L x H): 9.5 x 8.4 x 12
• Millimeter (W x L x H): 240 x 214 x 305
• Weight: Approx. 13.4 lbs (6.1 kg)

Input Hopper

• Inch (W x L x H): 6.7 x 8.0 x 21.6
• Millimeter (W x L x H): 170 x 204 x 548
• Weight: Approx. 8.2 lbs (3.7 kg)

Output Hopper

• Inch (W x L x H): 5.9 x 8.0 x 21.6
• Millimeter (W x L x H): 149 x 204 x 548
• Weight: Approx. 7.6 lbs (3.5 kg)
