IDP Smart-70 Single Sided ID Card Printer with Lamination and 100 card exit box

SMART-70 Single-Sided ID Card Printer with Lamination (100-Card Exit Box)

The IDP SMART-70 Series is a high-performance, industrial-grade ID card system designed for organizations requiring reliable, high-volume card issuance. Built on a modular platform, the SMART-70 allows flexible configuration with printing, lamination, encoding, and various hopper options.

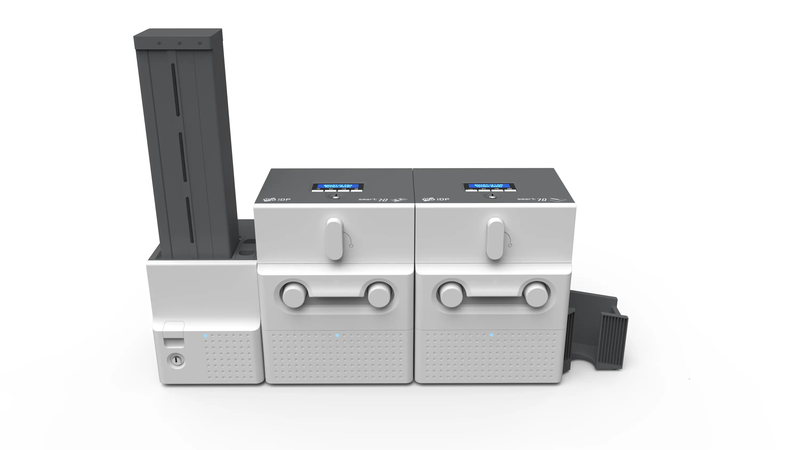

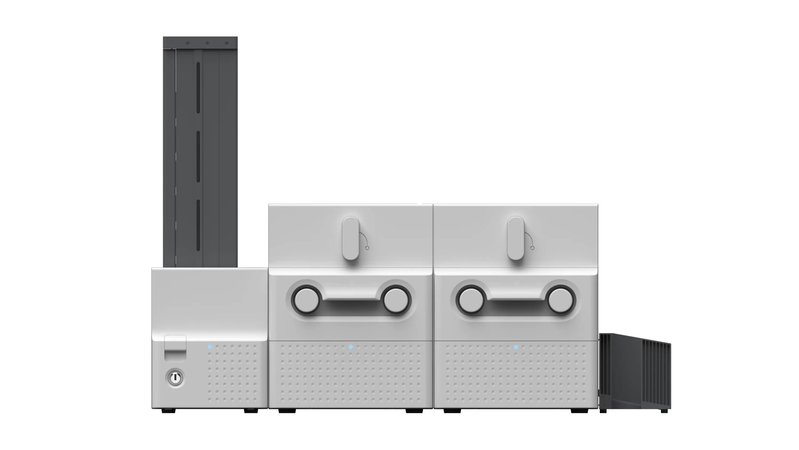

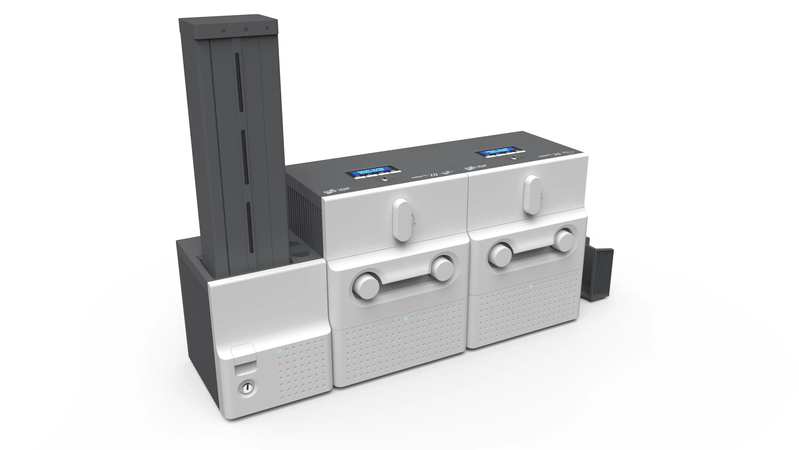

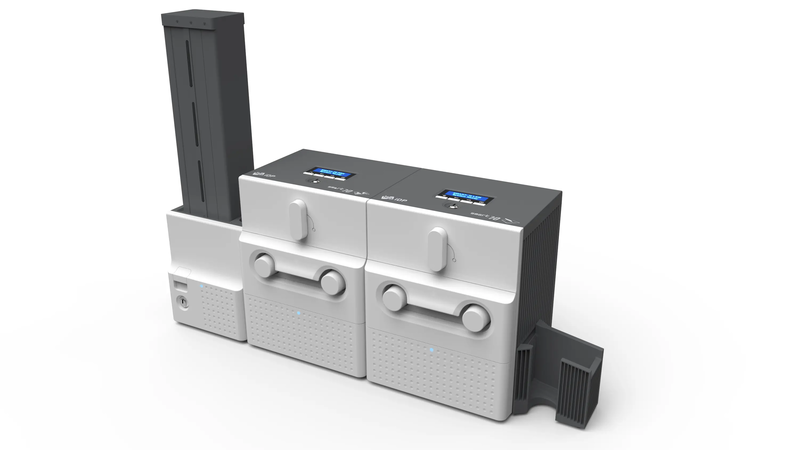

This configuration includes a single-sided printer, direct heating laminator, high-capacity 500-card input hopper, and a 100-card exit box (stacker). It is ideal for secure card production environments where durability and efficiency are critical, while maintaining a more compact output solution.

The system features a robust metal frame, precision card handling, and scratch-free technology to protect card surfaces during high-volume operation. Its no-tool upgrade design allows technicians to easily expand or modify the system as needs evolve.

The integrated laminator applies clear or holographic film using direct heating technology, providing enhanced card durability and security. With up to 95% coverage and fast processing speeds, it is well suited for ID cards that require long-term use.

High-capacity consumables and a 500-card input hopper reduce reload frequency, improving workflow efficiency. The 100-card exit box provides organized card output for batch processing environments.

Advanced security features include physical locks for cards, ribbons, and modules, Kensington lock support, and software-based PC and password authentication to control access and protect sensitive data.

PRINTING

• Print Mode: Single-Sided
• Print Type: Direct-to-Card Dye-Sublimation
• Print Area: Edge-to-Edge
• Resolution: 300 dpi

CARD

• Card Feeding: Automatic
• Card Size: ISO CR80 (2.12" x 3.38")
• Card Thickness: 0.38 mm (15 mil) – 1.2 mm (47 mil)
• Card Type: PVC, Composite PVC, PET

PRINT SPEED

• Monochrome: 3.6 sec/card (up to 1,000 cards/hour)
• YMCKO: Max. 16 sec/card (up to 225 cards/hour)

CAPACITY

• Input Hopper: Up to 500 cards
• Output: 100-card Exit Box (Stacker)

SENSORS

• Residual Quantity Sensor: Near Empty / Empty
• Detection Sensor: Cartridge Mount Status Detection

SYSTEM

• Memory: 64MB RAM
• Interface: 2-Line LCD / 4 Buttons / 1 LED Indicator
• Supported Platforms: Windows, macOS, Linux
• Communication: USB, Ethernet
• Power Supply: Free Voltage (AC 100–220V, 50–60Hz)
• Power Consumption: 24V, 2A
• Operating Temperature / Humidity: 59–95°F (15–35°C) / 35–70%

LAMINATION

• Type: Direct Heating Lamination
• Speed: Approx. 14 sec/card (single-sided)
• Film Type: Clear or Holographic
• Film Thickness: 0.6 mil, 1.0 mil
• Capacity: Up to 500 cards per roll

SECURITY

• Physical Locks: Card, Ribbon, Laminator
• System Security: PC Authentication, Password Authentication
• Device Security: Kensington Lock Support

DIMENSIONS & WEIGHT (MODULES)

Printer Module

• Inch (W x L x H): 9.5 x 8.4 x 12
• Millimeter (W x L x H): 240 x 214 x 305
• Weight: Approx. 13.9 lbs (6.3 kg)

Laminator Module

• Inch (W x L x H): 9.5 x 8.4 x 12
• Millimeter (W x L x H): 240 x 214 x 305
• Weight: Approx. 13.4 lbs (6.1 kg)

Input Hopper

• Inch (W x L x H): 6.7 x 8.0 x 21.6
• Millimeter (W x L x H): 170 x 204 x 548
• Weight: Approx. 8.2 lbs (3.7 kg)

Exit Box (Stacker)

• Capacity: Up to 100 cards
• Integrated output stacker (compact design)
