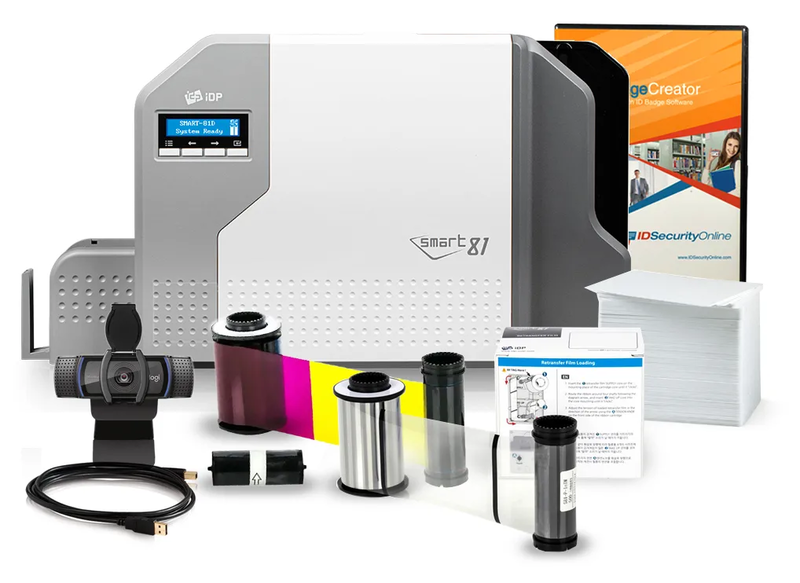

IDP Smart-81 Single Sided Retransfer ID Card System

The IDP SMART-81S is a single-sided retransfer ID card system built for organizations that need sharp, full-bleed card printing with fast startup and reliable daily operation. IDP Rapid Retransfer Printing (RRP) technology helps the printer reach print-ready status in seconds, reducing warm-up time for front desks, security offices, schools, and high-volume card programs.

The system produces crisp text, photos, barcodes, and detailed graphics using retransfer dye-sublimation printing with edge-to-edge coverage on compatible cards.

The SMART-81S supports 300 dpi or 600 dpi printing, automatic card feeding, USB and Ethernet connectivity, and optional encoding upgrades. Its 200-card capacity and security features make it a practical choice for employee IDs, student cards, access control credentials, membership cards, and technology cards.

Designed for PVC, composite PVC, PET, and PC card materials, this system is well suited for professional ID issuance programs that require consistent image quality and dependable card handling.

Printing

• Print Mode: Single sided
• Print Type: Retransfer dye-sublimation / resin thermal
• Print Area: Infinity over-the-edge / full-bleed
• Resolution: 300 dpi or 600 dpi
• Print Technology: Rapid Retransfer Printing (RRP)

Card

• Card Feeding: Automatic
• Card Size: ISO CR80 (54mm x 86mm / 2.12" x 3.38")
• Card Thickness: 0.76mm (30 mil) to 1.6mm (64 mil)
• Card Type: PC, PVC, PET, Composite PVC

Capacity

• Input Hopper: 200 cards
• Output Stacker: 200 cards

Print Speed

• YMCK: Max. 25 sec./card (144 cards/hour)

System

• Interface: 2-line graphic LCD / 4 buttons
• Supported Platforms: Microsoft Windows 10/11, Mac OS, Linux
• Communication: USB, Ethernet
• Power Supply: DC 100-240V
• Power Consumption: 48W, 60Hz, 2.5A
• Temperature: 15~35°C
• Humidity: 35~70%

Security

• Password-protected administrator and user authentication
• PC authentication
• Kensington lock support
• Optional magnetic stripe, contact, and contactless smart card encoding

Dimensions

• Millimeter: 460 (W) x 224 (L) x 310 (H)
• Inch: 18.1 (W) x 8.8 (L) x 12.2 (H)

Weight

• Approx. 11.4 kg / 25.13 lbs

Warranty

• 36-month Advanced Exchange Warranty and Lifetime Printhead Warranty
