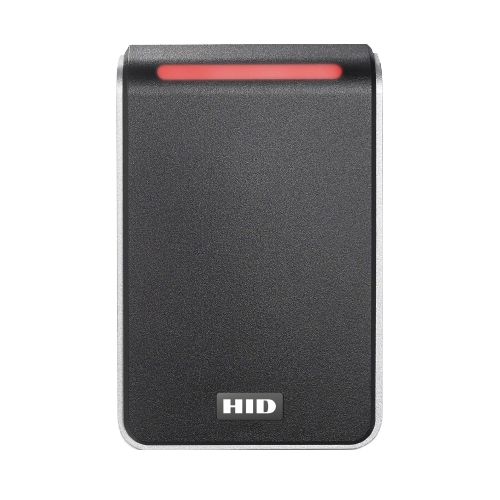

HID Signo PIV 40 Reader

Item#: 40H
Manufacturer: HID
Retail Price: $437.83
Sale Price: $372.00 ( Save: $65.83 )
128192

HID Signo PIV 40 Reader Options

Unfortunately we do not ship cards with this configuration. Please select a different one

 Description

The HID Signo? 40 Reader is a wall switch?mount, multi-technology access control reader built for modern, secure deployments and easy upgrades from legacy systems. Part of HID?s Signo reader platform, it supports a wide range of credential technologies, including HID Mobile Access? via native Bluetooth? and NFC, so organizations can use cards, fobs, or smartphones for secure entry.

Designed for strong security and reliable performance, the Signo 40 stores cryptographic keys on EAL5+ certified secure element hardware and includes a surface detection feature that automatically recalibrates to help optimize read range in different mounting environments. For future-ready connectivity, it includes out-of-the-box support for OSDP secure channel for encrypted, bidirectional communication, while also supporting Wiegand and clock-and-data for compatibility with existing access control panels.

 Specifications

  • Product: HID Signo? Reader 40 (Wall switch mount)
  • Mounting: Covers single-gang switch boxes; slotted mounting plate for alternate back-box spacing
  • Credential Technologies:
    • Mobile: HID Mobile Access? (Mobile credentials powered by Seos?) via Bluetooth (2.4 GHz) and NFC (13.56 MHz)
    • 13.56 MHz: Seos?, iCLASS SE?, iCLASS SR?, iCLASS?, MIFARE? Classic, MIFARE? DESFire? EV1/EV2/EV3, FeliCa?, CEPAS
    • 125 kHz: HID Proximity?, Indala? Proximity, AWID Proximity, EM Proximity
  • Typical Read Range:
    • 13.56 MHz credentials: 1.6?4 in (4?10 cm)
    • 125 kHz credentials: 2.4?4 in (6?10 cm)
  • Communications / Panel Connection: OSDP (RS-485 half duplex), Wiegand, Clock-and-Data; via pigtail (18 in / 0.5 m) or terminal strip (model-dependent)
  • Security: Multi-layered security; EAL5+ certified secure element hardware; native OSDP secure channel; trusted authentication using the SIO data model
  • Management: HID Reader Manager? and OSDP configuration; supports remote configuration and firmware updates
  • Operating Voltage: 12V DC
  • Environmental Rating: UL294 indoor/outdoor rated; IP65
  • Operating Temperature: -31 ?F to +150 ?F (-35 ?C to +66 ?C)
  • Humidity: 0?95% non-condensing
  • Dimensions (W x L x D): 3.15" x 4.78" x 0.77" (80 mm x 121.5 mm x 19.5 mm)
  • Housing: Polycarbonate (UL94 V0)
  • Warranty: Limited lifetime warranty
