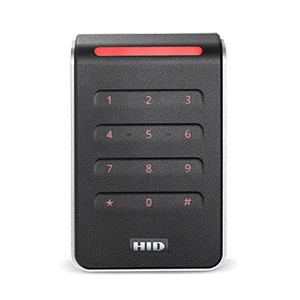

HID Signo 40K Keypad Reader

Item#: 40K
Manufacturer: HID
Retail Price: $721.13
Sale Price: $453.00 ( Save: $268.13 )
128084

HID Signo 40K Keypad Reader Options

Unfortunately we do not ship cards with this configuration. Please select a different one

 Description

The HID Signo? 40K Keypad Reader is a wall switch?mount, multi-technology access control reader that combines smart credential support with an integrated keypad for multi-factor authentication. Part of the HID Signo reader platform, it supports credential formats including HID Mobile Access? via native Bluetooth? and NFC, contactless cards, and 125 kHz legacy proximity credentials, while offering PIN entry for enhanced security workflows.

Designed for versatile modern security deployments, the Signo 40K features EAL5+ certified secure element hardware to protect cryptographic keys and credential data. Built-in OSDP secure channel support enables encrypted, bidirectional communication with host panels, while Wiegand and clock-and-data ensure compatibility with existing access control systems. Its robust IP65-rated housing makes it suitable for indoor and outdoor use, and its keypad supports common multi-factor authentication scenarios.

 Specifications

  • Product: HID Signo? 40K Keypad Reader (Wall switch mount)
  • Mounting: Single-gang wall switch box with slotted mounting plate for alternate back-box spacing
  • Credential Technologies:
    • Mobile: HID Mobile Access? (mobile credentials powered by Seos?) via Bluetooth? and NFC (13.56 MHz)
    • 13.56 MHz: Seos?, iCLASS SE?, iCLASS SR?, iCLASS?, MIFARE? Classic, MIFARE? DESFire? EV1/EV2/EV3, FeliCa?, CEPAS
    • 125 kHz: HID Proximity?, Indala? Proximity, AWID Proximity, EM Proximity
  • Keypad: Integrated numeric keypad (3 ? 4 layout) for PIN entry / multi-factor authentication
  • Communications / Panel Connection: Wiegand, Clock-and-Data and RS-485 Half Duplex (OSDP) via Pigtail (18 in / 0.5 m) or Terminal Strip
  • Security: EAL5+ certified secure element hardware; encrypted key storage; secure communications protocols
  • Environmental Rating: IP65 for outdoor durability
  • Operating Voltage: 12 V DC
  • Operating Temperature: ?31 ?F to +150 ?F (?35 ?C to +66 ?C)
  • Humidity: 0?95 % non-condensing
  • Dimensions (W ? H ? D): 3.16? ? 4.79? ? 0.85? (80 mm ? 121.5 mm ? 21.5 mm)
  • Housing: Polycarbonate (durable, UL94 V0 rated)
  • Typical Read Range: ~1.6?4? (4?10 cm) for 13.56 MHz credentials and ~2.4?4? (6?10 cm) for 125 kHz cards
  • LED / Audible: Multi-color LED and integrated buzzer for user feedback
  • Warranty: Limited lifetime warranty
