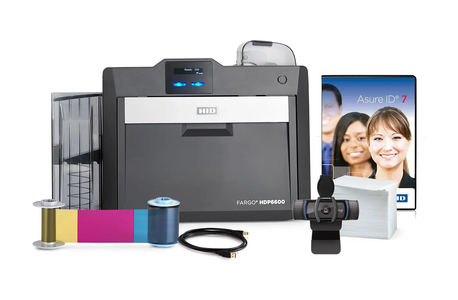

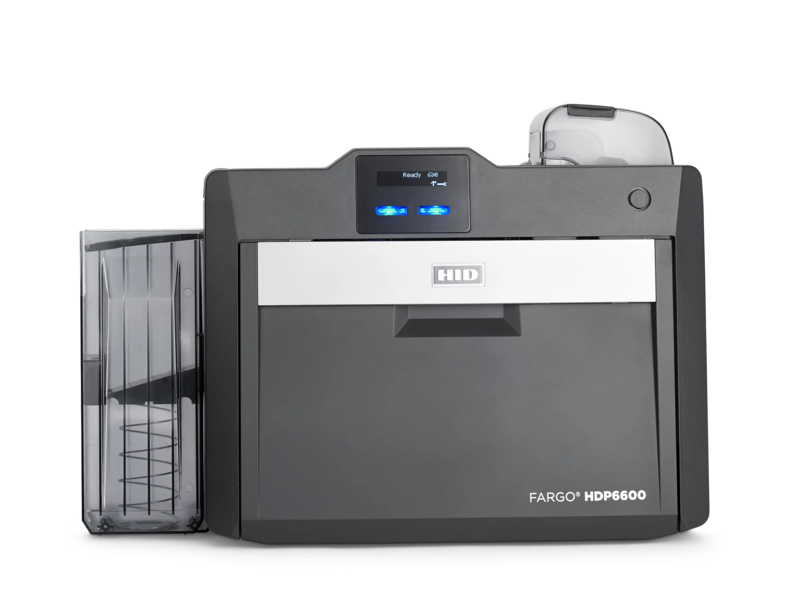

Fargo HDP6600 Retransfer Single Sided ID Card Printer with Flattener

The Comprehensive Retransfer Card Printer Solution

Taking all the lessons learned over 60 years of retransfer technology and mastering them over the past 20 years, FARGO has rolled out perhaps the most cutting edge retransfer card printer on the market. The HID® FARGO® HDP6600 is the product of seamless innovation which presents some never before seen features in a retransfer card printer along with patent-pending iON™ technology. The result is a printer with unprecedented print speeds making it the fastest you’ll find on the market today.

When You Have a Need for Speed

Producing up to 230 high definition cards per hour, the HDP6600 can address the needs of large scale event ID printing as well as some of the largest organizations in corporate America. The patent-pending iON™ technology is capable of rapidly heating the transfer roller optional laminator. The result is a printer that reaches optimal operating temperatures in just seconds. Whereas other laminators can take as long as 5 minutes to head up, the HDP6600 is ready produce in just 60 seconds or less.

Big Performance of High-volume Jobs

Large corporations, sprawling universities, massive healthcare facilities and full-scale government agencies, when high-volume printing is the name of the game the HDP6600 is difficult to beat. It offers support for high-yield, full-color ribbon, and laminate consumables resulting in maximum productivity and minimal costs. If you find yourself in need of increased capacity, an optional 200-card input hopper is available and ready.

Sharper, crisper images and text with 600 dpi

Just because you want high-volumes and top notch speeds doesn’t mean you should sacrifice quality. The HDP6600 produces crisp images with vibrant colors that pop. When branding matters, there is no replacement for the printer that will produce images and texts just as your marketing team imagined. The 600 dpi resin printing features allow you to sprint small and detailed text along with crisply defined barcodes.

Smart Cards for Better Security

When you need a little more functionality from your IDs, the HDP6600 delivers with precision. It offers encoding options that allow the printer to produce secure contact and contactless smart cards that can be tailored for every occasion. The HDP6600 can also print right up to the edge of the smart chips and with an optional card flattener, you can ensure a smooth and level product at the end.

Better for the Environment and Better for Business

The HDP6600 utilizes HID Global’s innovative wasteless lamination technology. This reduces the need for excess plastic waste that comes with most lamination consumables you’ll find currently on the market. Currently the only desktop-based retransfer printer on the market to offer this technology, the HDP6600 not only saves on plastic waste but it saves on material costs by up to 40%. Combined with wastless PolyGuard™ LMX overlaminates, the life of your card will be extended as well.

Print Method: HDP® Dye-Sublimation / Resin Thermal Transfer

Resolution: 600 dpi (23.6 dots/mm)

Colors: Up to 16.7 million / 256 shades per pixel

Flattener: Included

Print Ribbon Options:

• Full-color with resin black, YMCK, 750 prints
• Full-color with two resin black panels, YMCKK, 600 prints

Additional ribbon options coming soon. Please contact your HID Global Sales Representative or local HID Integrator for more information.

HDP Film Options: Clear, 1500 prints

Overlaminate Options: COMING SOON - Overlaminate options will be made available with the upcoming release of the HDP6600 lamination module. Please contact your HID Global Sales Representative or local HID Integrator for additional information.

Print Speed:

Batch Mode:

• Up to 230 cards per hour / 16 seconds per card (YMCK with transfer)
• Up to 126 cards per hour / 29 seconds per card (YMCKK with transfer)

Accepted Standard Card Sizes: CR-80 (3.375”L x 2.125”W / 85.6mmL x 54mmW)

Print Area: Over-the-edge on CR-80 cards

Accepted Card Thickness: .030” (30 mil) to .040” (40 mil) / .762mm to 1.01mm

Accepted Card Types: ABS, PVC, PET, PETG, proximity, smart and mag stripe cards, optical memory cards, polycarbonate.

Input Card Cartridge Capacity: 100 cards (.030” / .762mm)

Output Hopper Card Capacity: 200 cards (.030” / .762mm)

Card Cleaning: Replaceable cleaning roller (included with each print ribbon)

Memory: 1 GB RAM

Display: User-friendly, SmartScreenTM Graphical OLED Control Panel

Software Drivers: Windows® 10 / 8.1 / 8 / 7 / Server 2016 / Server 2012 / Server 2012 R2 / Server 2008 / Server 2008 R2

Encoding Options: Supported smart card and magnetic stripe technologies: 125kHz (HID Prox) reader; 13.56 MHz (iCLASS® Standard/SE/ SR/Seos, MIFARE Classic®, MIFARE Plus®, MIFARE DESFire® EV1, ISO 14443 A/B, ISO 15693) read/write encoder; contact smart card encoder reads from and writes to all ISO7816 1/2/3/4 memory and microprocessor smart cards (T=0, T=1) as well as synchronous cards; ISO magnetic stripe encoding, dual high- and low-coercivity, tracks 1, 2 and 3.

Supported Access Control Credential Programming: iCLASS® Standard/SE/SR/Seos, MIFARE Classic®, MIFARE DESFire® EV1, HID Prox (Also see the FARGO HDP6600 Card Encoding Modules Datasheet for additional information)

Interface: USB 2.0 and Ethernet with internal print server

Operating Temperature: 65° to 90° F / 18° to 32° C

Humidity: 20 - 80% non-condensing

Dimensions:

• HDP6600: 13.0"H x 14.5"W x 12.0"D / 330mmH x 368mmW x 305mmD

Weight:

• HDP6600: 21.0 lbs. / 9.5 kg

Certifications: UL, CE, FCC, BSMI, MIC, EAC, RCM, CCC, KCC, S-Mark

Supply Voltage: 100-240 VAC, 2.5A max

Supply Frequency: 50 Hz / 60 Hz

Environmental/Energy Saving Feature: GreenCircle® Certified card printer (base models only without encoders)

Warranty:

• Printer – Three years including one year of free printer loaner support (U.S. only); optional Extended Warranty Program (U.S. only)
• Printhead – Lifetime; unlimited pass

FARGO Secure Materials: FARGO Card Printer/Encoders require highly specialized media to function properly. To maximize printed card quality and durability, printhead life and printer/encoder reliability, use only HID Secure Materials.

HID warranties are void, where not prohibited by law, when non-HID Secure Materials are used.

Software: FARGO diagnostic utility with Color Assist spot-color matching included with printer driver
