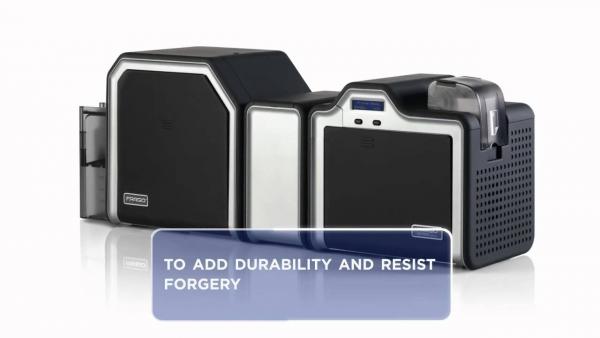

Fargo HDP5000 Single Sided Retransfer ID Card Printer

Fargo HDP5000 Single Sided Retransfer ID Card Printer

Fargo HDP5000 Single Sided Retransfer ID Card Printer

Item#: 089600
Manufacturer: Fargo
5506.80 Retail Price: $5506.80


  • Printing Capability: Single-Sided Printing
  • Print Tech: Reverse Transfer Printing
  • Print Speeds: Single-Sided Cards Printed in Only 24 Seconds and Just 35 Seconds for Laminated Cards
  • Input/Output: 200/200
  • Warranty: 3 Year Global Warranty along with a 1 Year Loaner Coverage

What's Included

  • Fargo HDP5000 Single-Sided ID Card Printer
  • USB cable
  • Power cord
  • Microsoft Windows drivers

Looking for a Complete ID Card System?

Our photo ID systems include everything that you need to start printing your cards within minutes. Each system includes an ID card Printer, ID card software, a camera, PVC cards and a ribbon. Yes, I want to see the Fargo HDP5000 Single Sided ID Card System
HID® FARGO® HDP5000 - Ideal solution for printing on technology cards

Fargo HDP5000 Single Sided Retransfer ID Card Printer Description

Affordability, efficiency, and quality combine to deliver the Fargo HDP5000 printer solution. Discover its potential and unleash the power of the HDP5000 within your organization.

High-Definition Reverse Transfer Printing

The HDP5000 produces some of the finest imagery available for ID card printing. This fine-tuned process takes a reverse image and prints it on the underside of HDP Film before fusing the film to the surface. The result is a vibrant image that pops. In addition the HDP5000 can print right up the edge of smart chips as well as over the edge of the card for a complete image. The HDP5000 has been updated which results in increased cards speeds that can print up to 150 cards per hour (YMC with transfer.)

With the understanding that the security of your employees and intellectual property matters, the HDP5000 offers a tamper-evident layer of HDP film between the card image and the world around it. That means if someone tries to peel apart the layers for the purpose of counterfeiting, the image basically destroys itself. Meanwhile, it also protects the image from daily wear and tear.

Modular Design for Flexibility and Ease of Printing

The HDP5000 comes with a modular design that allows for easy upgrades and modifications. This allows you to take on various encoding options as well as duplex printing and lamination. Moreover, ethernet connectivity comes built-in and ready to use right out of the box. This will allow for multiple employees to utilize the printer over your organization’s network.

The HDP5000 was engineered to ensure minimal downtime and maximum durability. Because the printhead never comes into contact with the card surface, the risk of collecting debris or inflicting damage on itself is minimized. That’s why it brings a lifetime warranty to the table with confidence. It also provides a SmartScreen LCD panel that will display prompts and status messages in multiple languages.

Optional Dual-Sided Printing Capabilities

Upgrade your printer with duplex printing. Thanks to the modular design of the HDP5000, dual-printing can be added whenever needed with ease.

Optional Encoding Capabilities

The modular design of the HDP5000 allows you to upgrade encoding options which will allow you to print and encode your cards in one single pass.

Optional Wi-Fi Feature

The HDP5000 can be upgraded with optional wi-fi capabilities that allow you connect to your entire network without the need of an ethernet cable.

Optional Lamination Module

For added security, you can add the ability to place an overlaminate layer which provides tamper-proof cards that are highly resistant to forgery.

Fargo HDP5000 Single Sided Retransfer ID Card Printer Specifications

Print Method: HDP Dye-Sublimation / Resin Thermal Transfer

Resolution: 300 dpi (11.8 dots/mm)

Colors: Up to 16.7 million / 256 shades per pixel

Print Speed (batch mode):

  • up to 24 seconds per card / 150 cards per hour (YMC with transfer)*
  • up to 29 seconds per card / 124 cards per hour (YMCK with transfer)*
  • up to 40 seconds per card / 90 cards per hour (YMCKK with transfer)*
  • up to 35 seconds per card / 102 cards per hour (YMCK with transfer and dual-sided, simultaneous lamination)
  • up to 48 seconds per card / 75 cards per hour (YMCKK with transfer and dual-sided, simultaneous lamination)

Accepted Standard Card Sizes: CR-80 (3.370? L x 2.125? W / 85.6 mm L x 54 mm W)

Accepted Card Thickness: .030? (30 mil) to .050? (50 mil) / .762 mm to 1.27 mm

Input Card Cartridge Capacity: 100 cards (.030? / .762 mm)

Output Hopper Card Capacity: 200 cards (.030? / .762 mm)

Software Drivers:

  • Windows 8/ 7/ Vista (32bit & 64 bit) / Server 2008 & 2003/ XP;
  • Mac OS X v10.6 / v10.5 & Linux

Print Area: Over-the-edge on CR-80 cards


  • Printer - Three years including one year of free printer loaner support (U.S. only); optional Extended Warranty Program (U.S. only)
  • Printhead - Lifetime; unlimited pass


  • Magnetic stripe encoding

Included Software: FARGO Workbench Diagnostic Utility with Color Assist spot-color matching

Card Printer Supplies


The Fargo HDP5000 Single Sided Retransfer ID Card Printer features a 3-year warranty including 1-year loaner, and lifetime warranty on printhead.
