Fargo HDP5600 Single Sided ID Card System

Fargo HDP5600 Single Sided ID Card System

Fargo HDP5600 Single Sided ID Card System

Fargo
Item#: HDP5600SystemSS
Manufacturer: Fargo
5055.00 Retail Price: $5055.00
More Configurations: HDP5600SystemSS-ME

Highlights

  • Windows & Mac compatible
  • 24 Seconds full Color, 600 DPI
  • 3 year printer & printhead warranty with 1 year loaner coverage

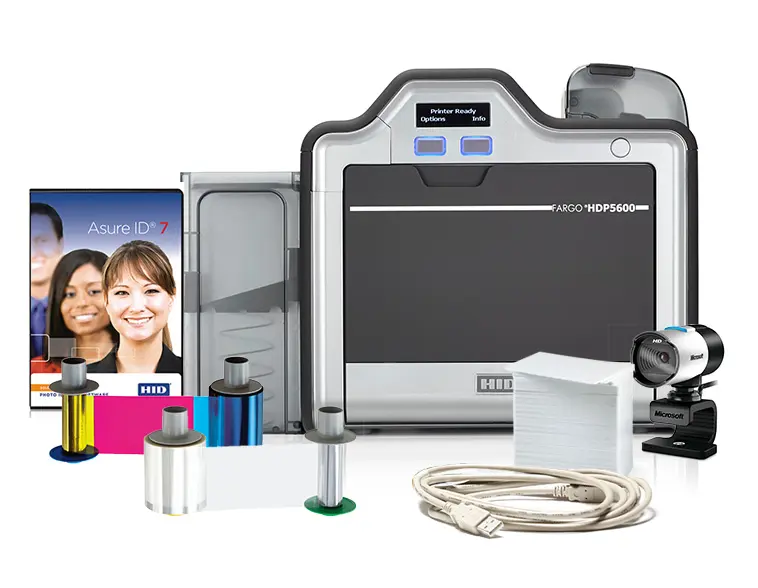

What's Included

  • Fargo HDP5600 Single Sided ID Card Printer
  • Asure ID Solo 7 Software
  • Logitech C920S Pro HD Webcam
  • Fargo HDP5600 Color Ribbon - YMCK
  • Fargo HDP5600 Clear Film
  • CR80.30 (30 Mil) White PVC Cards
  • USB & Power Cord
  • 3 year printer & printhead warranty with 1 year loaner coverage

Fargo HDP5600 Single Sided ID Card System Description

Take high definition cards to the next level with the precision print quality of the FARGO® HDP5600

Sharper, crisper images and text for any organization.

Colors are vibrant. Images and text are crisp. Quality is second to none. ID cards printed on the FARGO® HDP5600 card printer/encoder do more than protect your organization — they reflect the value you place on your brand. The HDP5600 produces ID cards with the highest image and text quality available, making it a smart choice for retail stores, recreation facilities, and any organization whose brand image is paramount. Not only are colors more brilliant and images sharper, but the high quality, 600 dpi resin printing capabilities of the HDP5600 give you the ability to precisely print small text and crisply defined barcodes like never before. The HDP5600 also includes a built-in Workbench™ diagnostic utility and Color Assist™ tool to help your organization better match spot colors on company logos and service marks. Leveraging the 600 dpi option, the printer can even accurately reproduce complex characters, such as Kanji, Arabic and Cyrillic.

It’s also right for organizations that demand more functionality from their ID cards. Government agencies, healthcare facilities, businesses and corporations, loyalty and membership programs, and colleges and universities are all expanding their use of multi-function smart cards. Encoding options allow configuration of the HDP5600 to produce highly secure contact and contactless smart cards that address your specific needs. And print quality is never sacrificed: because these precise images and text are printed onto high-definition film, instead of the directly to the card, the often uneven surface of technology cards won’t compromise image quality. The HDP5600 can also print up to the very edge of smart chip contacts and virtually over the edge of each card so images are always sharp. The printer’s Wi-Fi® capabilities also allow you to produce high definition IDs anytime, anywhere. A retail chain, for example, can distribute card issuance over a network to any location. On a corporate campus or university, an array of printer/encoders can be set up in a central location for high-volume production. The printer’s Ethernet port and internal print server provide the connectivity needed for virtually any networked operation.

Proven fifth-generation HDP® technology and reliability.

HID Global introduced high definition printing (HDP) in 1999, and we’ve been perfecting the technology ever since. The HDP5600 reflects our commitment to customer-inspired innovation and the evolution of our family of High Definition Printing solutions. Reliable and robust, HID Global’s fifth-generation HDP5600 card printer/ encoder offers the print quality your organization can count on and the technology advancements you want. What’s more, fifth-generation reliability means more peace of mind and less printer downtime -- and because the printhead never comes in contact with card surfaces or debris, it’s never damaged in the printing process. In fact, it carries a lifetime warranty.

Greater card security and durability.

Cards produced by high definition printing solutions are more secure and durable than other types of cards. They are inherently tamperevident — if a counterfeiter tries to peel apart the layers, the image essentially destroys itself. They also resist wear and tear by putting a durable layer of HDP film between the card image and the outside world.

For enhanced durability and security, the highly versatile HDP5600 also provides the ability to add a holographic overlaminate or holographic HDP film to the front of an ID card. An overlaminate on both sides doubles the protection – and the HDP5600 laminates both sides of a card simultaneously in one efficient pass.

Take card printing to the next level.

Only one card printer offers 5th generation retransfer technology for every need – from sharp and vibrant photo ID cards to multi-functional, high-security applications, the HDP5600 delivers on the promise of ultimate image quality and printer reliability, all at an affordable price point.

Fargo HDP5600 Single Sided ID Card System Specifications

Print Method:

  • HDP Dye-Sublimation / Resin Thermal Transfer

Resolution:

  • 600 dpi (23.6 dots/mm) or 300 dpi (11.8 dots/mm)

Colors:

  • Up to 16.7 million / 256 shades per pixel

Print Speed (batch mode):

  • up to 24 seconds per card / 150 cards per hour (YMC with transfer)
  • up to 29 seconds per card / 124 cards per hour (YMCK with transfer)
  • up to 40 seconds per card / 90 cards per hour (YMCKK with transfer)

Accepted Standard Card Sizes:

  • CR-80 (3.375˝ L x 2.125˝ W / 85.6 mm L x 54 mm W)

Accepted Card Thickness:

  • .030˝ (30 mil) to .050˝ (50 mil) / .762 m m to 1.27 mm

Input Card Cartridge Capacity:

  • 100 cards (.030˝ / .762 mm)

Output Hopper Card Capacity:

  • 200 cards (.030˝ / .762 mm)

Software Drivers:

  • Windows 10 / 8 / 7 / Vista / XP / Server 2012 / Server 2012 R2 / Server 2008 / Server 2008 R2 / Server 2003 R2 / Server 2003 R1, Mac OS X v10.10 / v10.9 / v10.8 / v10.7 / v10.6 and Linux

Print Area:

  • Over-the-edge on CR-80 cards

Warranty:

  • Printer - Three years including one year of free printer loaner support (U.S. only); optional Extended Warranty Program (U.S. only)

Options:

  • Dual card input hopper
  • Card lamination module – single-sided or dual-sided (simultaneous)
  • Smart card encoding (contact/contactless)
  • Physical locks for card hoppers and consumables access
  • Printer cleaning kit
  • Magnetic stripe encoding
  • 200-card input hopper
  • Secure Proprietary Consumables System
  • Custom Secure Holographic HDP Film and Overlaminate
  • Wi-Fi® Module

Included Software:

  • FARGO Workbench Diagnostic Utility with Color Assist spot-color matching

Card Printer Supplies

Warranty

The Fargo HDP5600 Single Sided ID Card System features a 3-year warranty on printer and printhead with 1 year loaner coverage.

Protect your investment with our extended warranty plans.

To order an extended warranty please call 800-897-7024 Monday thru Friday from 8:30 am to 5pm

All our extended warranty plans include:

  • Toll-free technical support

    Call 800-897-7024 Monday thru Friday from 8:30 am to 5pm or chat with us.

  • Parts and labor

    All parts and labor are included. Printheads are not covered after the first year.

  • Optional printer loaner

    We will send you a loaner while we service your printer so you can keep printing your badges.

  • Questions? Call us today at 800-897-7024 to speak with an ID expert.
