Fargo DTC1500 Dual Sided Photo ID System

Two-Sided Credentials for Busy Enrollment Teams

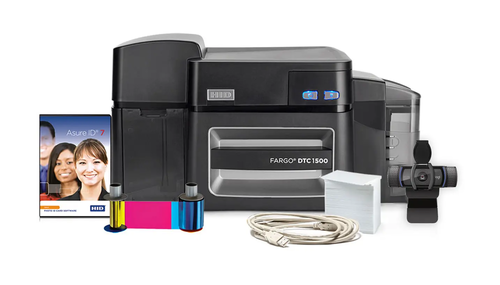

Keep identification on the front of a badge and supporting information on the back. The Fargo DTC1500 system prints both sides automatically for staff cards, student credentials, and membership IDs. The kit includes a dual-sided printer, one 500-print YMCKO ribbon, 500 white PVC cards, Asure ID Solo 7 software, and a Logitech C920S Pro HD webcam.

Card Layouts with Room to Spare

At 300 dpi, direct-to-card dye-sublimation produces color images and resin thermal transfer defines black text. The printer handles 100 cards in its input hopper and up to 100 finished cards in the output hopper, based on 30 mil stock.

Built-In Tools for Credential Protection

A custom watermark overlay can incorporate a transparent logo, symbol, or text into the printed card. Resin scramble obscures information remaining on used resin panels. Password protection controls printer use, and AES-256 encryption protects printer data over a secure network. Resin threshold settings let operators adjust black-panel use for text and barcodes.

Ribbon and Cards Supplied

The Fargo 45610 YMCKO ribbon provides up to 500 single-sided prints; duplex yield depends on panel use. It combines yellow, magenta, cyan, resin black, and a clear overlay, with an integrated card cleaning roller. The 500 white CR80 PVC cards are 30 mil thick and contain no magnetic stripe or smart chip.

Design, Photograph, and Issue

Asure ID Solo 7 is delivered digitally and supports front-and-back templates with photos, logos, text, and linear barcodes, plus up to 200 cardholder records. The C920S webcam offers 1080p video at 30 fps, autofocus, automatic light correction, a glass lens, and a privacy shutter.

Workstation and Network Connections

USB 2.0 and Ethernet with an internal print server are standard. A USB cable, US/international power cords, and a printer driver and user guide CD are included. The printer and printhead have a three-year warranty. This configuration includes duplex printing but no encoder or laminator; compatible encoding and lamination hardware requires a separate configuration.

Fargo DTC1500 Dual-Sided Printer

• Part Number: 51405
• Print Method: Automatic duplex, edge-to-edge direct-to-card; dye-sublimation / resin thermal transfer
• Resolution: 300 dpi continuous tone; up to 16.7 million colors
• Speed Reference: Approx. 16 sec/card YMCKO for single-sided color; duplex time varies with layout; processing and encoding excluded
• Card Capacity: 100-card input; up to 100-card output, using 30 mil cards
• Formats: CR80 (3.375 x 2.125 in); CR79 (3.313 x 2.063 in)
• Card Thickness: 9-40 mil
• Card Materials: PVC or polyester with polished PVC finish; 100% polyester requires monochrome resin
• Interface: USB 2.0 and Ethernet with internal print server
• Security: Custom watermark overlay, resin scramble, password protection, AES-256 network data encryption
• Controls: Resin threshold settings; color-changing status buttons
• Size and Weight: 9.8 in H x 18.7 in W x 9.2 in D; 11 lb (5 kg), printer only
• Environment: 65-80 degrees F (18-27 degrees C); 20-80% non-condensing humidity
• Power: 100-240 VAC, 50-60 Hz, 1.6 A maximum
• Utilities: Swift ID embedded badging; FARGO Workbench with Color Assist
• Optional Configurations: Compatible magnetic stripe, smart card encoding, and lamination hardware; not included
• Warranty: 3 years on printer and printhead; unlimited-pass printhead coverage with UltraCard media

Fargo YMCKO Color Ribbon

• Part Number: 45610
• Quantity: One ribbon
• Yield: Up to 500 single-sided prints; duplex yield depends on panel use
• Panels: Yellow, magenta, cyan, resin black, clear overlay
• Cleaning: Integrated card cleaning roller
• Compatibility: Fargo DTC1500

Asure ID Solo 7 Software

• Part Number: 086511
• Delivery: Digital delivery
• Design Features: Front-and-back templates; text, photos, logos, linear barcodes
• Records: Up to 200 cardholder records
• Platform: Windows software

White PVC Cards - 500 Count

• Part Number: 81754
• Size: CR80, 3.375 x 2.125 in
• Thickness: 30 mil
• Material: White PVC; no magnetic stripe or smart chip
• Quantity: 500 cards

Logitech C920S Pro HD Webcam

• Part Number: 960-001257
• Video: Full HD 1080p at 30 fps
• Optics: Glass lens, autofocus, automatic light correction
• Audio: Dual microphones
• Privacy: Privacy shutter
• Connection: USB

Included Accessories

• Connection: USB cable
• Power: US/international power cords
• Documentation: CD with printer drivers and user guide
