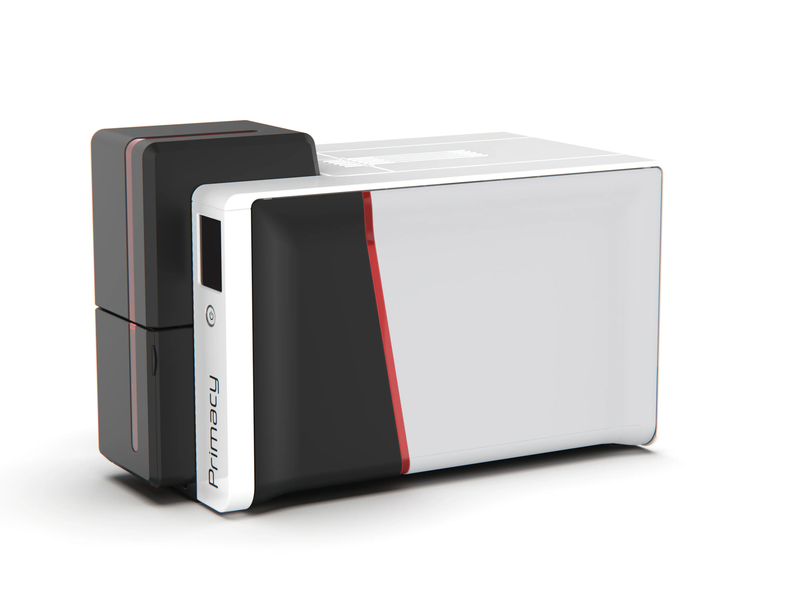

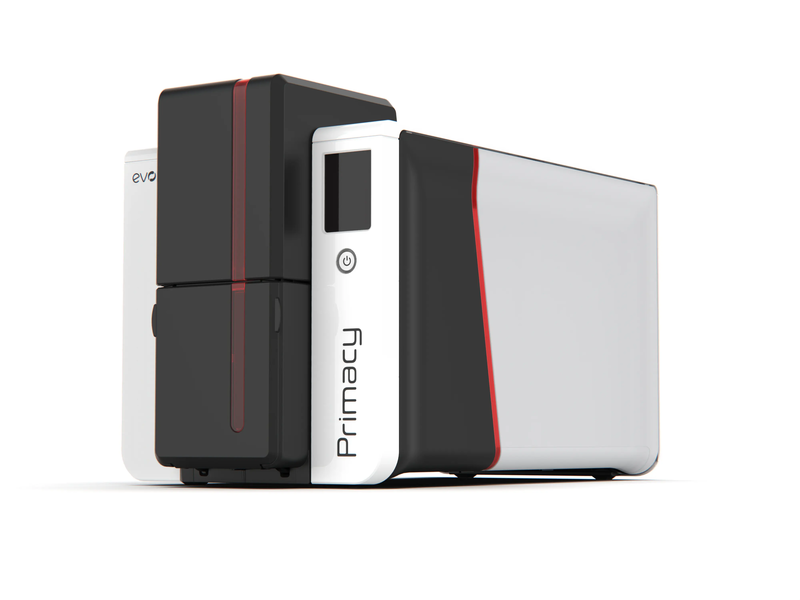

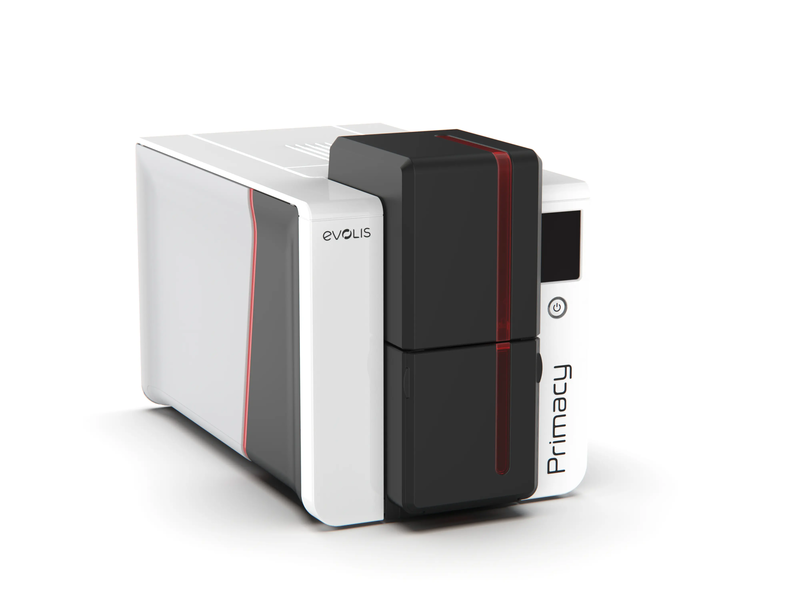

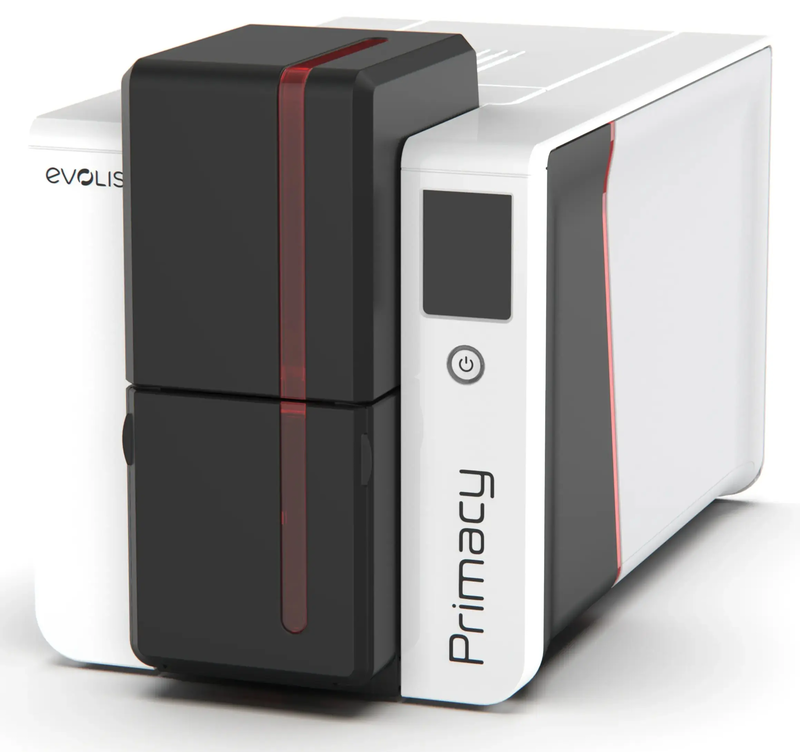

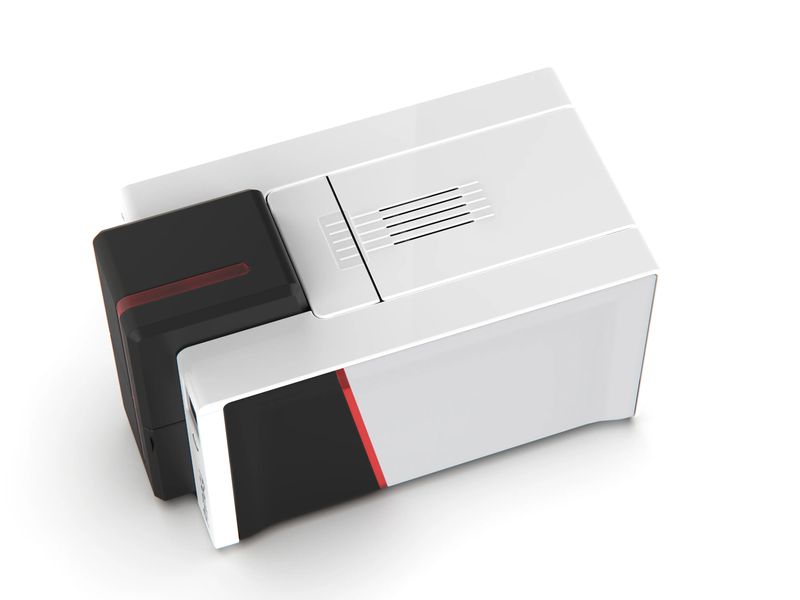

Evolis Primacy 2 LCD Dual Sided ID Card Printer

The Evolis Primacy 2 LCD dual-sided ID card printer is a premium, easy-to-use system designed for clarity and control. Its bright integrated LCD touchscreen lets you easily monitor printer status, manage ribbon changes, and receive alerts in real time. With edge-to-edge printing and support for rewritable cards, your badges will look outstanding. The PM2-0013-A comes standard with Ethernet connectivity and no encoding, but you can choose from several factory-configurable options: magnetic stripe encoding (PM2-0015), dual smart card/contactless encoding with IDENTIV chipset (PM2-0017), or the SpringCard Crazy Writer HSP contactless encoder (PM2-0019).

Powerful and Compact
Primacy 2 handles batch runs thanks to 100-card input and output hoppers. Both are front-facing for quick access and at-a-glance monitoring. It’s the first printer in its class to deliver this level of performance in such a compact footprint, while ensuring excellent print quality at remarkable speed.

Easy to Use
The built-in LCD interface works hand in hand with Evolis Premium Suite® software, automatically fine-tuning settings during operation. Users get on-screen alerts directly on the printer and on their computer, and 24/7 online help is just a click away. Cards load easily from the front, and ribbons come in drop-in cassettes for effortless replacement—each ribbon is automatically detected and configured.

• Bright, integrated LCD screen for real-time status
• Quick, front access to all features
• 100-card or 200-card feeder and hopper conveniently located at the front
• At-a-glance monitoring of remaining cards
• Rear-mounted reject tray
• Includes Evolis Premium Suite® for automated configuration

Fast!

• Boost productivity with 100-card autonomy
• Color ribbon capacity (YMCKO): 280 cards
• Complete flexibility: single- or dual-sided, plus magnetic, smart card, and contactless encoding options

General Features

• Premium dye-sublimation color printing directly on the card plus resin thermal transfer
• Supports rewritable card printing for eco-friendly re-use
• Integrated dual-sided (duplex) print module for full card coverage
• Print resolution:
  • Color & monochrome: 300x300 dpi & 300x600 dpi
  • Monochrome only: 300x1200 dpi for sharp text and barcodes
• Advanced color-profile–based print optimization for consistent results
• User interface: full-color LCD touchscreen for real-time monitoring and quick navigation

Print Speed

• (YMCKOK): up to 170 cards/hour for fast batch runs

Card Specifications

• Feeder capacity: 100 cards (0.76 mm – 30 mil)
• Output hopper: 100 cards (0.76 mm – 30 mil)
• Rear hopper: 50 cards (0.76 mm – 30 mil)
• Supported card types: PVC, composite PVC, PET, ABS, and rewritable cards

Ports/Connectivity

• USB (cable included) and Ethernet for reliable connections
• Built-in 802.11b/g wireless (within wireless range)

Encoding Options

• Available models include:
  • PM2-0015: Mag ISO Dual HiCo/LoCo 3-track magnetic stripe encoder
  • PM2-0017: Evolis Elyctis Dual Smart Card and Contactless (IDENTIV chipset) Encoder
  • PM2-0019: SpringCard Crazy Writer HSP Contactless Encoder

Security

• Kensington® security lock point
• Optional mechanical key lock
• Secure data handling with printer-memory data erasure
• Kineclipse® optional masking of sensitive data
• Optional internal scanner/reader

Software & Apps

• Printer management with Evolis Premium Suite (Windows, Mac; Linux drivers available)
• Includes cardPresso XXS for badge design & printing
• Evolis SDK (Software Development Kit) available for easy integration; Android printing via Evolis Print Service add-on
