Evolis Edikio Price Tag Duplex Solution

The Advanced Solution to Print Your Dual-Sided Price Tags on Plastic Cards

Edikio Duplex is an all-in-one solution to print great-looking price tags on plastic cards.It is ideal for printing high volumes of dual-sided monochrome or colored tags.

Made for demanding users, it includes everything needed to update and print price tags in a few minutes:

• The Edikio software Pro edition, dedicated for your activity and customizable to your store needs
• A compact printer for a minimal footprint in your store, featuring an LCD touch screen for more comfort of use
• Consumables dedicated for use in the food industry:
  - 200 black CR80 cards (credit-card format)
  - White ribbon for up to 1000 prints

Easy-to-Use Software

Part of the Edikio Duplex solution, the Edikio Software Pro Edition is an indispensable component of your price tag solution:

• Includes a library of over 350 images, sample item lists and tag layouts for your retail
• Exclusive Edikio Chalk font
• Allows to sort your products by categories and even sub-categories to match the organization of your store (optional)
• Dynamic front and back sides preview of your tags before printing
• Importation of your item list from an Excel file, or creation of a new item list directly within the software
• Automatic refresh data from your Excel file
• Powerful search tools (PLU or keyword search)
• Automatic detection of updated prices since the last print
• Users rights management with individual login

Printer

• Edikio Duplex
• Double-sided, edge-to-edge printing
  (Margin: 0.4 mm in color / 0.7 mm for monochrome white printing)

Included consumables

• White printing ribbon for up to 1000 prints
• 200 x CR80 (credit-card format) black cards 30 mil

Included software

• Edikio Software Suite, containing:
• Edikio Price tag software – PRO edition
• Edikio Printer Suite – Driver for Windows®

Card size

• ISO CR80 - ISO 7810 (53.98 mm x 85.60 mm)
• Three-tag cards (53.97 mm x 85.85 mm – 3 x 28.5 mm)

Card thickness

• 0,5 mm - 0.76 mm (20mil - 30 mil)

Ribbon saver in monochrome

• Yes

Low / end of ribbon graphical notification (from W7)

• Yes (Edikio Printer Suite)

Printing technology

• Color dye sublimation (16 millions of colors)
• Monochrome thermal transfer
• 300 dpi print head

Printing speed – monochrome white (1 side)

• 490 cards / hour (7,3 sec / printed card)

Printing speed – monochrome black (1 side)

• 600 cards / hour (6 sec / printed card)

Printing speed – color (YMCKO, 1 side)

• 185 cards / hour (19,5 sec / printed card)

Card input feeder capacity

• Up to 100 cards (30mil thickness)

Card output hopper capacity

• Up to 100 cards (30mil thickness)

Printer Size (H x W x D)

• 247 mm x 205 mm x 383 mm

Printer Weight

• 4,02 kg

Min/max operating temperature

• 15°C / 30 °C (59°F / 86 °F)

Connectivity

• USB (1.0, 1.1, 2.0, 3.0)
• Ethernet
• Wifi (option)

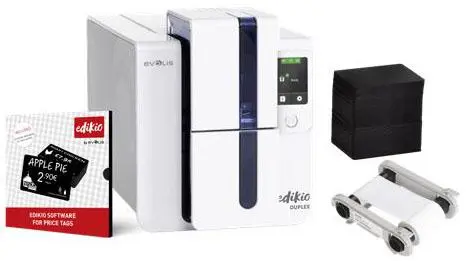

Ship kit contents

• 1 x Edikio Duplex printer
• 1 x Edikio Software Suite – USB stick
• USB cable (1.80 m)
• 200 x CR80 black cards 30 mil
• 1 x monochrome white ribbon for 1000 prints Starter cleaning kit
• Power supply and power cord

Warranty

• 3 years

Minimum system requirements

• Windows 7 or higher (32 or 64 bits)
• 2 GB of RAM
• 500 MB hard disk free space
• 1024 x 768 pixel monitor resolution
• 1 USB port
