Evolis Zenius Single Sided Photo ID System - Grey Brown

Evolis Zenius Single Sided Photo ID System - Grey Brown

Evolis Zenius Single Sided Photo ID System - Grey Brown

Item#: ZeniusSystemSS-Grey
Manufacturer: Evolis
1940.00 Retail Price: $1940.00
More Configurations: ZeniusSystemSS-Grey-Eth


  • Single-sided direct to card ID card printer
  • Special features: Easy to use, easy to replace supplies thanks to the cartridge based system, USB connectivity, includes the Evolis premium suite
  • Ethernet option

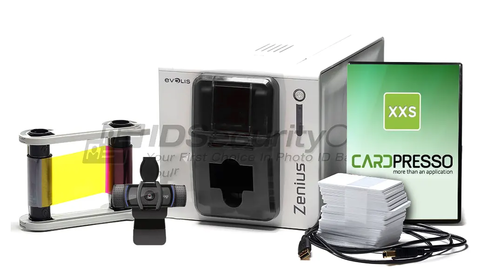

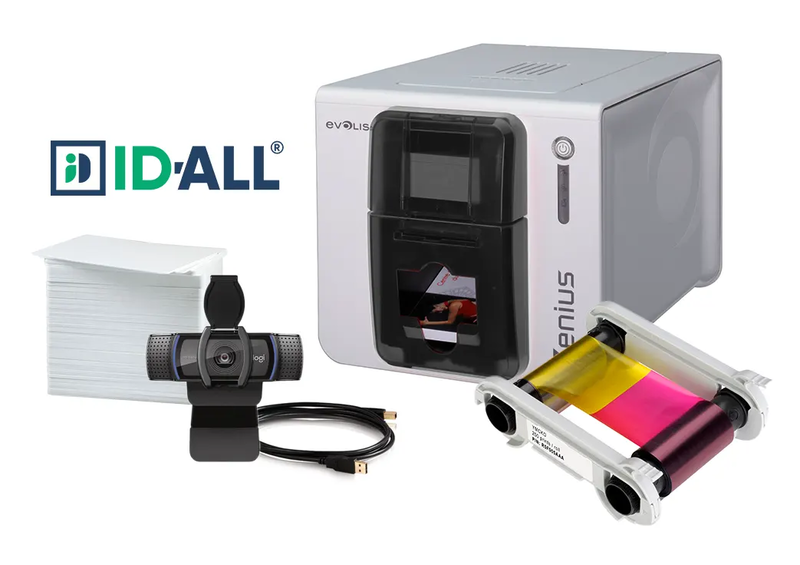

What's Included

  • Evolis Zenius Single Sided ID Card Printer
  • Evolis Full Color Ribbon YMCKO (200 Prints)
  • Logitech C920S Pro HD Webcam
  • 500 White PVC Cards
  • SoftBadge Creator ID Software
  • CD-ROM with printer driver and user manual
  • Cleaning kit
  • USB cable
  • Power supply and cords
  • 2-year warranty

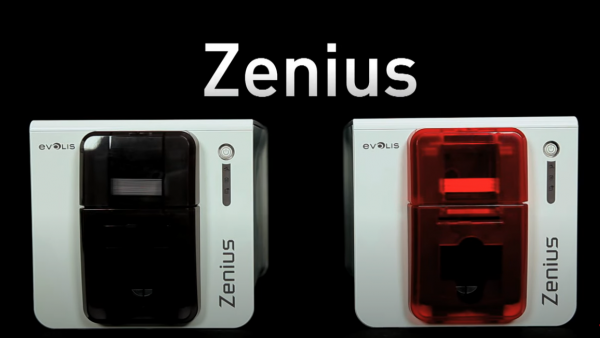

Evolis Zenius

Evolis Zenius Single Sided Photo ID System - Grey Brown Description

Zenius is the one-stop solution to print high-quality single-sided cards, in monochrome or color, and encode technology cards, in single or small runs, for a variety of applications: employee badges, access control badges, payment cards, transportation passes, and more.


Zenius makes it easy for you every step of the way! Discover a wealth of advanced features loaded in a contemporary yet compact design.


With a sound level of just 46 dB (A) and its amazingly small size, Zenius can be accommodated in virtually any environment, be it a welcome desk, a sales counter, or an office desk. Zenius weighs 3.3 kg (7.3 lbs) and is the lightest printer in its category.


Zenius has earned the coveted ENERGY STAR certification and complies with the reduced energy consumption guidelines from the ErP European Directive.

Evolis Zenius Single Sided Photo ID System - Grey Brown Specifications

General printer specifications

  • Single-sided printing module, edge-to-edge printing
  • Color-dye sublimation and monochrome thermal transfer
  • 300 dpi print head (11.8 dots/mm)
  • 16 MB of RAM

Printing performances

  • Color: from 120 to 150 cards per hour
  • Monochrome: from 400 to 500 cards per hour

Card management and specifications

  • Choice of automated or manual feeding

Evolis High Trust® ribbons®

Maximize the quality and durability of printed cards, the lifespan of your print head and the overall reliability of your printer!

  • Automatic detection and setup
  • Ribbon embedded in a cassette for ease of use
  • Ribbon saver feature for monochrome printing


  • LEDs
  • Graphic notifications from the printer (Depending on your Windows version): Empty feeder, cleaning, ”approaching end-of-ribbon” and “end-of-ribbon” warnings


Supplied with the Evolis Premium Suite® for Windows:

  • Printer driver
  • Evolis Print Center for printer management and setup
  • Evolis Printer Manager for two-way notifications (Requires .net 4.0 client profile)
  • Supports Windows XP SP2 or later; Vista 32/64, W7 32/64 (For versions prior to Windows XP-SP2, please contact Evolis Services)

Supplied with the eMedia CS Card Designer (30-day free trial to be downloaded from Mediasoft’s website)

Other OS: Mac and Linux: upon request


  • 2 years (printer and print head)
Feeder capacity - 50 cards (0.76 mm — 30 mil)

Output tray capacity - 20 cards (0.76 mm — 30 mil)

Card thickness - 0.25 to 0.76 mm (10 to 30 mil), calibration via the gauge

Types of cards - all PVC , Composite PVC, PET, ABS* and special varnish* cards

Card format - ISO CR-80 — ISO 7810 (53.98 mm x 85.60 mm — 3.375” x 2.125”)

*Under specific conditions

Ribbon capacity:
  • 100 cards/roll
  • KO
  • 300 cards/roll
Monochrome ribbon - jump to 1,000 cards per roll (Under specific conditions)

Hologram ribbon - 400 cards/roll
  • USB 1.1 (compatible 2.0)
  • Ethernet available as an option
(H x L x W) - 195 mm (7.68”) x 205 mm (8.07") x 310 mm (12.2”)

3.3 kg (7.3 lbs)

Sound (evaluated according to the ISO 7779 Standard) - Sound pressure level, LpAm, bystander position (YMCKO color mode)

When operating - 46dB (A)

In sleep mode - Background noise only<

  • Support for Kensington® lock
Packaging content
  • Printer
  • CD-ROM with the printer driver and user manual
  • Cleaning kit
  • USB cable
  • Power supply and cords
Options & accessories
Available colors
  • Fire Red or Grey Brown
  • Ethernet TCP-IP (for the ‘Expert’ version or above)

Eco-friendly design, certifications and statement of compliance
  • Sleep mode and reduced energy consumption
  • ErP 2009/125/CE, ENERGY STAR, RoHS

Power supply - 100—240 V AC, 50—60 Hz, 1.8 A

Printer - 24 V DC, 3 A


Min/max operating temperature: 15° / 30°C (59° / 86°F)

: 20% to 65% non-condensing
Min/max storage temperature: —5° / +70°C (23° / 158°F)

Storage humidity
: 20 to 70% non-condensing

Operating ventilation
: Open air<

Resident fonts

  • Arial 100, Arial Bold 100
  • Bar code: Code 39, code 128, EAN 13, Interleaved 2 of 5

Card Printer Supplies


The Evolis Zenius Single Sided Photo ID System - Grey Brown features a 2-year warranty on printer or 100,000 inserted cards for printer, printhead.

Protect your investment with our extended warranty plans.

To order an extended warranty please call 800-897-7024 Monday thru Friday from 8:30 am to 5pm

All our extended warranty plans include:

  • Toll-free technical support

    Call 800-897-7024 Monday thru Friday from 8:30 am to 5pm or chat with us.

  • Parts and labor

    All parts and labor are included. Printheads are not covered after the first year.

  • Optional printer loaner

    We will send you a loaner while we service your printer so you can keep printing your badges.

  • Questions? Call us today at 800-897-7024 to speak with an ID expert.
