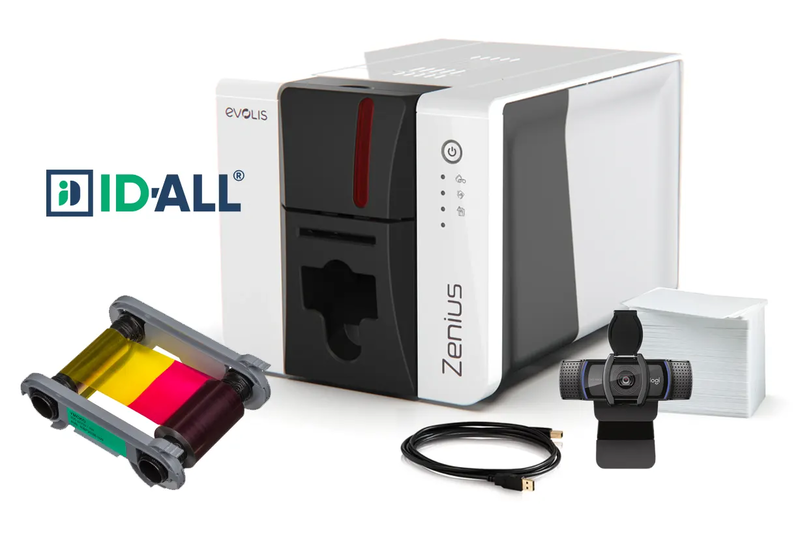

Evolis Zenius 2 Single Sided Photo ID System

Evolis Zenius 2 Single-Sided ID Card Printer is the compact, reliable, and stylish solution for professional card issuance. Designed for small to medium print volumes, it delivers vibrant, edge-to-edge color or sharp monochrome cards—plus rewritable printing for temporary or frequently updated badges. Choose between two models to suit your setup: Classic (USB only, SKU: ZN2-0001-A) or Expert (USB + Ethernet with optional encoding, SKU: ZN2-0002).

Fast and efficient: print up to 180 color cards or 700 monochrome cards per hour. With Evolis Premium Suite 2 software for Windows and macOS, ID-ALL Starter card design software, quick ribbon installation, and both batch and single-card feeding, the Zenius 2 makes card printing effortless.

Secure and future-ready: upgrade to magnetic, contact, or contactless encoding (Expert version). The optional YMCKOO ribbon enables UV security printing and a double overlay for superior card protection, while built-in digital erasing safeguards sensitive print data after every job.

• Models: Classic (USB) and Expert (USB + Ethernet) with optional encoders
• Printing: Single-sided, edge-to-edge direct-to-card; supports rewritable cards
• Speed: Up to 180 cph (color) / 700 cph (monochrome)
• Card Handling: 50-card input; 25-card front or 50-card rear output; single-card insertion slot
• Resolution: 300×300 dpi standard; 300×600 dpi (color/mono); 300×1200 dpi (mono)
• Security: UV printing, double overlay protection (YMCKOO ribbon), and digital data erasing
• Software: Includes ID-ALL Starter Edition for card creation and design
• Warranty: 3 years

General Features

• Printing Technologies: Direct-to-card dye-sublimation (color) and resin thermal transfer (monochrome) with optional rewrite printing
• Print Mode: Single-sided, edge-to-edge output
• Resolution: 300×300 dpi (standard); up to 300×600 dpi (color/mono); 300×1200 dpi (mono)
• Color Management: Integrated ICC color profile for precise reproduction
• User Interface: LED display with guided setup via Evolis Premium Suite 2

Print Performance

• Color (YMCKO): Up to 180 cards/hour
• Monochrome: Up to 700 cards/hour
• Rewrite Mode: Up to 340 cph (erase/print) or 600 cph (print only)

Card Handling

• Feeding: Automatic batch feed or manual single-card insertion
• Input Feeder: 50 cards (30 mil)
• Output Hoppers: 25 cards (front) or 50 cards (rear)
• Card Thickness: Adjustable from 10–30 mil (0.25–0.76 mm)
• Supported Card Types: PVC, composite PVC, PET* (mono only), paper* (BlackFLEX only), rewritable cards; CR80 size (85.60 × 53.98 mm)

Dimensions & Weight

• Width: 7.68" (195 mm)
• Height: 7.56" (192 mm)
• Depth: 12.2" (310 mm)
• Weight: 7.3 lb (3.3 kg)

Connectivity & Encoding Options

• Interfaces: USB 2.0 (included cable); Ethernet available on Expert model
• Encoding (Expert): Magnetic stripe (ISO 7811), contact smart card, and contactless encoding (ISO 14443/15693, MIFARE, DESFire, HID iCLASS); combinable options
• Security: Kensington® lock slot, printhead protection, digital data erasing, UV effect and double overlay protection (with YMCKOO ribbon)

Software Ecosystem

• Evolis Premium Suite 2: Printer driver suite for Windows/macOS with real-time status, notifications, and wizards
• ID-ALL Starter Edition: Entry-level card creation and design software (developed by CARDPRESSO)
• Evolis Print Service: Mobile app for on-the-go printing (Android/iOS, Expert version)
• Integration: SDK available for easy system integration

Consumables

• Evolis High Trust® Ribbons: Automatic ribbon recognition; available in cassette or EASY4PRO (cassette-free) versions
• Typical Yields: YMCKO 200; ½-YMCKO 400; YMCKOO 250; Black up to 2,000 (under specified conditions)

Warranty

• 3-year warranty covering printer and original printhead
• Optional extended warranty available
