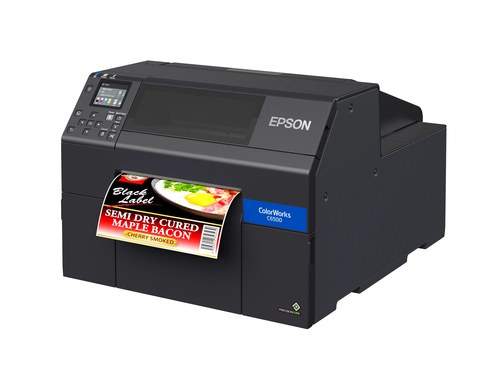

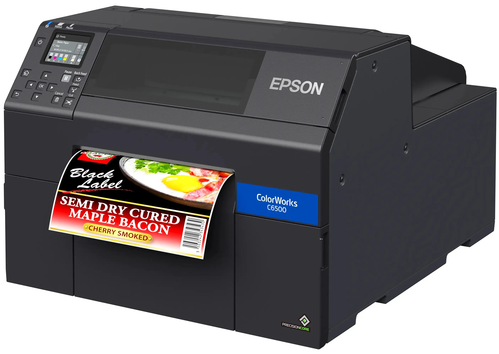

Epson ColorWorks CW-C6500 8" color label printer

The Epson ColorWorks CW-C6500 is an 8" industrial color label printer designed as a true color upgrade for black-and-white thermal transfer devices. Built for demanding, mission-critical environments, it produces high-quality, full-color labels up to 8.34" wide with resolutions up to 1200 × 1200 dpi. With Auto Cutter (A) and Peel-and-Present (P) models, plus Gloss and Matte ink variants, the CW-C6500 integrates smoothly into existing workflows using ZPL II®, ESC/Label™, SAP® and major middleware platforms.

Best-fit Uses

• Large GHS and industrial drum labels
• Wide product and packaging labels
• Pallet, carton and shelf labels
• On-demand color labels with variable data

Key Features

• Engineered for Reliability: built for mission-critical, high-duty-cycle applications
• Wide-format Color: prints labels up to 8.34" wide
• High Print Quality: up to 1200 × 1200 dpi with variable droplet sizes
• Productivity: print speeds up to 5"/sec for efficient batch runs
• Durable Pigment Inks: UltraChrome® DL pigment inks; BS 5609 capable with approved media
• Finish Options: Gloss and Matte Black ink models to match media requirements
• Media Handling Choices: Auto cutter (A models) or peel-and-present (P models)
• Easy Integration: ZPL II®, ESC/Label™, SAP®, Windows®, macOS®, Linux®, and major middleware
• Automation Ready: general-purpose I/O for applicators and automated systems
• Fleet Management: remote monitoring and configuration tools for large deployments
• Connectivity: USB, Ethernet

Printer

• Models Included: CW-C6500A Gloss (C31CH77A9991), CW-C6500A Matte (C31CH77A9981), CW-C6500P Gloss (C31CH77A9971), CW-C6500P Matte (C31CH77A9961)
• Print Method: Serial inkjet PrecisionCore® TFP®
• Print Resolution: up to 1200 × 1200 dpi
• Print Speed: up to 5"/sec (in high-speed mode, depending on media and settings)
• Max Print Width: 8.34" (212 mm)
• Control Panel: 2.7" color LCD with keypad
• Cutter (A models): built-in auto cutter for variable-length labels and job separation
• Peel-and-Present (P models): integrated label-taking sensor for on-demand application
• Supported Codes: common 1D and 2D barcodes including UPC-A/E, Code39, Code128, GS1-128, QR, DataMatrix, PDF417

Ink

• Ink Type: UltraChrome® DL pigment-based inks (CMYK)
• Black Variants: Gloss Black or Matte Black, depending on model
• Durability: smudge-, fade- and water-resistant; BS 5609 capable with compatible media
• Ink Configuration: individual CMYK cartridges for cost-effective replacement

Media

• Media Sources: internal roll, rear fan-fold, external unwinder support
• Media Types: matte paper, gloss paper, high-gloss and synthetic label stock
• Media Width: approx. 3.0" – 8.5" (varies slightly by configuration)
• Label Length: supports variable-length labels for batch or on-demand printing
• Sensors: gap and black-mark sensing for accurate registration

General

• Interfaces: USB 2.0, Ethernet (10/100/1000)
• Printer Languages: ZPL II®, ESC/Label™, command extensions
• OS Support: Windows®, macOS®, Linux®, Windows Server® environments
• Automation I/O: general-purpose I/O port for applicators and automated workflows
• Remote Management: tools available for status monitoring, configuration and firmware updates across fleets
• Power: auto-ranging AC input; typical consumption dependent on print mode and duty cycle
• In the Box: printer, power cable, starter ink set (CMYK), maintenance box, documentation
• Warranty: 1-year limited warranty; optional extended coverage available

Weight & Dimensions

• Printer Size (W × D × H): approx. 17.6" × 23.5" × 13.6" (≈ 447 × 597 × 345 mm)
• Printer Weight: approx. 59.5–60.2 lb (≈ 27–27.3 kg), depending on model
