CMYK-KPi Color Ribbon Kit

Item#: 513382-204
Manufacturer: DataCard
Retail Price: $425.25
Sale Price: $341.00 ( Save: $84.25 )
More Options: 741930
For use with: CR805


General Description: This color ribbon kit contains three items; all are compatible with several Datacard® card printers (see below):

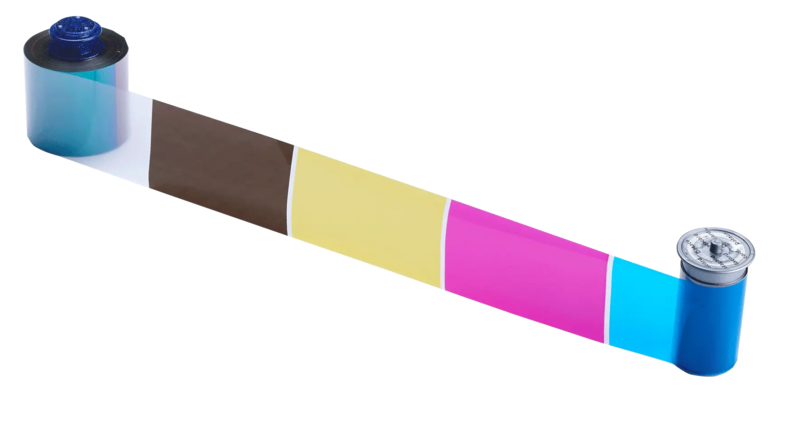

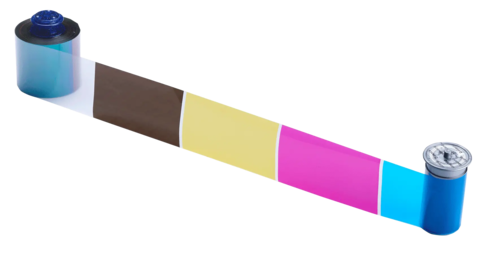

  • One CMYP-KPi Color Ribbon.
  • This product is a solid, multicolored plastic film that acts as an article under normal conditions of use. It consists of polyethylene terephthalate (PET) film with thin layers of specialized pigment coatings. Using a thermal print head, the pigment coatings are transferred to the retransfer film prior to the film being applied to a card.
  • One adhesive cleaning sleeve. Sleeve with adhesive cleaning wrap and removable protective cover applied to outside of plastic cylinder.
  • One isopropanol cleaning card. PVC card with outer layers of absorbent cleaning material saturated with isopropanol.

Printer Usage: Datacard certifies that this ribbon is optimized for use in the following Datacard® printers:

  • Datacard® CR805 and CR805 CLM
  • CR Series card printers feature Datacard® proprietary ribbons, which are designed specifically for the CR Series card printer. When the printer recognizes that a Datacard® ribbon is installed, all enhanced product features are enabled and successful card printing can begin. The printer will only print color images when Datacard® proprietary color ribbons are installed. Datacard is your exclusive source for proprietary ribbons for the CR Series card printers.

Packaging: Ribbon kits are enclosed in a Datacard® Certified Supplies, resealable, clamshell that include loading and usage instructions. Sixteen unit clamshells are included in one case of product.

Recommended storage:

  • Temperature: 50 - 80ºF (10 - 27ºC)
  • Humidity: 30 – 70% RH (non-condensing)
  • Sunlight: Do not store any supplies in direct sunlight or near a heat source


  • Panel Designations: C = Cyan Pigment, M = Magenta Pigment, Y = Yellow Pigment , K = Black Pigment, P = Primer, i = Inhibitor
  • Nominal Dimensions (roll): Height: 2.44 in (62mm), Outside Diameter (rolled): Less than 2.98 inches (75.7mm), Length (unrolled): 1889.8 Feet (576m)
  • Nominal Dimensions (box):
  • Length Width Height
    • Unit: L 6.3 inches (160 mm) x W 4.3 inches (109 mm) x H 3.3 inches (84 mm)
    • Case: L17.3 inches (440 mm) x W 12.3 inches (313 mm) x H 6.8 inches (171 mm)
    • Yield: 750 duplex printed cards per roll
  • Core Color: Datacard® distinctive blue core with platinum flecks® made with EcoPure® biodegradable additive.
  • Packaging: Each individual ribbon is packaged in a sealed clamshell.
Adhesive Cleaning Sleeve Specifications:
  • Nominal Dimensions: 2.5 inches (6.35 cm) x 1.5 inches (3.81 cm) outside diameter
  • Usage: Datacard recommends performing a cleaning cycle whenever a ribbon is replaced or as required by the end-user.
  • Core Color: Datacard blue core
  • Packaging: A removable, protective plastic layer that includes loading and usage instructions protects each individual cleaning sleeve.
Isopropanol Cleaning Card Specifications:
  • Nominal Dimensions: 3.375 inches (8.6 cm) x 2.125 inches (5.4 cm)
  • Usage: Datacard recommends performing a cleaning cycle whenever a ribbon is replaced or as required by the end-user.
  • Color: White
  • Packaging: Each individual cleaning card is enclosed in a disposable, protective envelope. Each envelope
  • has loading and usage instructions printed on the outside cover.
