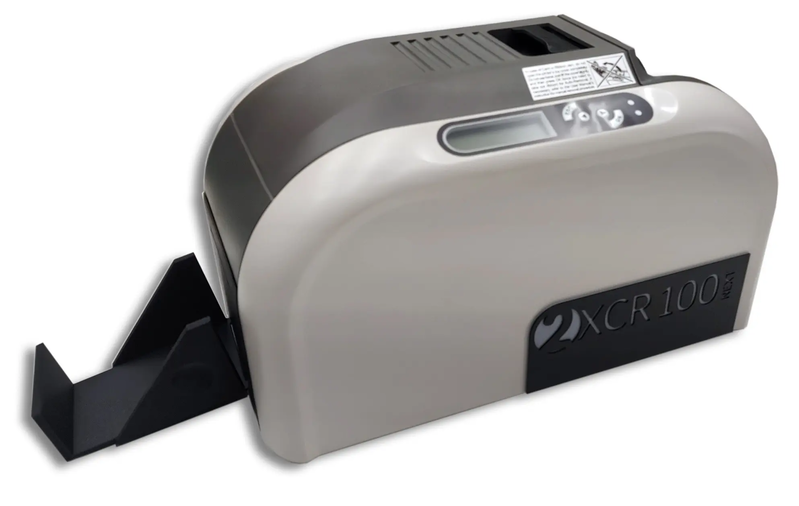

2XCR100next High Security Printer for Large Sized Plastic Badges

The 2XCR100next personalizes oversized badges in the proven CR100 format (2.63" x 3.88"). The device delivers high speed in a compact footprint, producing up to 180 full-color cards per hour. In monochrome, output increases to 1,400 cards per hour.

Preprinting the cards is recommended. By personalizing CR100 cards that already include a preprinted frame, you can create highly recognizable, professional large-format badges ideal for hospitals, event venues, security organizations, military installations, and other high-security environments.

The 2XCR100next supports multiple add-on modules that can be installed as needed. Available options include a duplex module for two-sided printing in a single pass, an Ethernet module for network operation, and encoding modules for contactless RFID technologies.

In addition to YMCKO and standard black monochrome ribbons, a wide range of other monochrome ribbon colors is available, providing flexibility for various project requirements.

The 2XCR100next is designed to quickly, efficiently, and cost-effectively produce professional and forgery-resistant oversized CR100 identity cards.

Printing Technology: Dye-Sublimation / Thermal Printing

Interface: USB 1.1 (compatible with USB 2.0)

Ribbons:

• Full-color YMCKO for 400 cards
• Monochrome ribbons for 2,000 prints each, available in Black (K), White, Blue, Red, Green, Silver, and Gold

Printing Resolution: 300 dpi

Printing Speed:

• Full color (YMCKO): up to 180 cards per hour
• Monochrome: up to 1,400 cards per hour

Card Size: CR100 – 98.5 x 67 mm (2.63 x 3.88 in.)

Card Thickness: 0.25 mm to 1.0 mm (10–40 mil)

Card Feeder: 100 cards (0.76 mm / 30 mil)

Output Hopper: 50 cards (0.76 mm / 30 mil)

Drivers: Windows 7–11, Mac OS 10.5–10.8, Linux

Encoding Options: Contactless (RFID) encoder: Mifare

Additional Options: Ethernet interface, Mini-PC for cloud connection, Duplex (Flipturn) Unit

Dimensions (Printer only): 197.8 mm (W) x 354 mm (L) x 204 mm (H), 7.79 in. x 13.94 in. x 8.03 in. (without feeder and output hopper)

Dimensions (Printer boxed): 290 mm (W) x 500 mm (L) x 300 mm (H), 11.42 in. x 19.69 in. x 11.81 in.

Weight: Printer: 4.6 kg / 10.15 lb (without options); Printer boxed: 6.3 kg / 13.89 lb (without options)

Warranty: 2 years
