Evolis Zenius GO Pack

Evolis
Item#: ZN1U-GP1
Manufacturer: Evolis
Retail Price: $2050.00
Contact us for lower pricing

Highlights

  • Single-sided direct to card ID card printer
  • Special features: Easy to use, easy to replace supplies thanks to the cartridge based system, USB connectivity, includes the Evolis premium suite
  • cardPresso XS card design software (connects to databases: Excel, .csv and .txt formats)

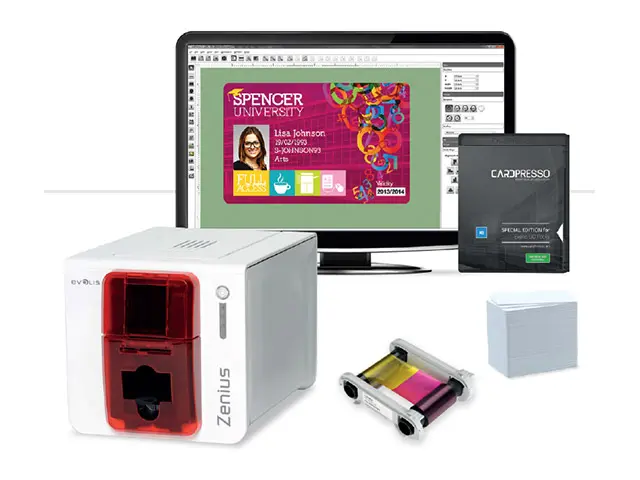

What's Included

  • Evolis Zenius single-sided printer
  • cardPresso XS card design software (connects to databases: Excel, .csv and .txt formats)
  • YMCKO color ribbon for 200 prints
  • USB cable
  • 100 PVC cards (30mil - 0,76 mm)

Looking for a Complete ID Card System?

Our photo ID systems include everything that you need to start printing your cards within minutes. Each system includes an ID card Printer, ID card software, a camera, PVC cards and a ribbon. Yes, I want to see the Evolis Zenius Single Sided Photo ID System - Fire Red

  Video for Evolis Zenius GO Pack

Evolis Zenius GO Pack Description

The Evolis Zenius GO Pack is the ideal package to design and print personalized plastic cards in just a few minutes. It includes everything you need to create professional badges for all your applications.


ZENIUS GO PACK INCLUDES:

• Zenius Classic card printer (Fire Red)
• cardPresso XS card design software (connects to
databases: Excel, .csv and .txt formats)
• YMCKO color ribbon for 200 prints
• 100 PVC cards (30mil - 0,76 mm)


Zenius comes with two major innovations:

  • Evolis Premium Suite®, software, at the core of all new Evolis printers. This software architecture supplies the Print Center, a printing and configuration system that monitors all communications between the printer and the user.
    The printer's operation can be managed entirely right from the user s interface and through pop-up notifications on the printing status, ribbon availability and maintenance tasks. This Printer Manager also offers direct access to the Evolis Web-based Support Center, available on a 24/7 basis.
  • The Evolis High Trust® range of consumables is specifically designed to deliver premium graphic performances and ease of use. Installing the ribbon cassette is a simple one-step process and thanks to a chip, Zenius instantly identifies the ribbon type and configures all settings accordingly.

Evolis Zenius GO Pack Specifications

General printer specifications

  • Single-sided printing module, edge-to-edge printing
  • Color-dye sublimation and monochrome thermal transfer
  • 300 dpi print head (11.8 dots/mm)
  • 16 MB of RAM

Printing performances

  • Color: from 120 to 150 cards per hour
  • Monochrome: from 400 to 500 cards per hour

Card management and specifications

  • Choice of automated or manual feeding

Evolis High Trust® ribbons®

Maximize the quality and durability of printed cards, the lifespan of your print head and the overall reliability of your printer!

  • Automatic detection and setup
  • Ribbon embedded in a cassette for ease of use
  • Ribbon saver feature for monochrome printing

Display

  • LEDs
  • Graphic notifications from the printer (Depending on your Windows version): Empty feeder, cleaning, ”approaching end-of-ribbon” and “end-of-ribbon” warnings

Software

Supplied with the Evolis Premium Suite® for Windows:

  • Printer driver
  • Evolis Print Center for printer management and setup
  • Evolis Printer Manager for two-way notifications (Requires .net 4.0 client profile)
  • Supports Windows XP SP2 or later; Vista 32/64, W7 32/64 (For versions prior to Windows XP-SP2, please contact Evolis Services)

Supplied with the eMedia CS Card Designer (30-day free trial to be downloaded from Mediasoft’s website)

Other OS: Mac and Linux: upon request

Warranty

  • 2 years (printer and print head)
Feeder capacity - 50 cards (0.76 mm — 30 mil)

Output tray capacity - 20 cards (0.76 mm — 30 mil)

Card thickness - 0.25 to 0.76 mm (10 to 30 mil), calibration via the gauge

Types of cards - all PVC , Composite PVC, PET, ABS* and special varnish* cards

Card format - ISO CR-80 — ISO 7810 (53.98 mm x 85.60 mm — 3.375” x 2.125”)

*Under specific conditions

Ribbon capacity:
  • YMCKO
  • 100 cards/roll
  • KO
  • 300 cards/roll
Monochrome ribbon - jump to 1,000 cards per roll (Under specific conditions)

Hologram ribbon - 400 cards/roll
Interfaces
  • USB 1.1 (compatible 2.0)
  • Ethernet available as an option
Size
(H x L x W) - 195 mm (7.68”) x 205 mm (8.07") x 310 mm (12.2”)


Weight
3.3 kg (7.3 lbs)

Sound (evaluated according to the ISO 7779 Standard) - Sound pressure level, LpAm, bystander position (YMCKO color mode)

When operating - 46dB (A)

In sleep mode - Background noise only<

Safety

  • Support for Kensington® lock
  • Data encryption for magnetic encoding (for the ‘Expert’ version or above)
Packaging content
  • Printer
  • CD-ROM with the printer driver and user manual
  • Cleaning kit
  • USB cable
  • Power supply and cords
Options & accessories
Available colors
  • Fire Red or Grey Brown
  • Ethernet TCP-IP (for the ‘Expert’ version or above)
  • Encoding options, than can be combined. Upgrade can be carried out onsite, by adding new modules (for the ‘Expert’ version or above):
    • Magnetic stripe encoder, smart card contact station,smart card encoder and contactless smart card encoder. Other encoders available upon request.

Eco-friendly design, certifications and statement of compliance
  • Sleep mode and reduced energy consumption
  • CE, FCC, IEC, VCCI, CCC, KC
  • ErP 2009/125/CE, ENERGY STAR, RoHS
Power

Power supply - 100—240 V AC, 50—60 Hz, 1.8 A

Printer - 24 V DC, 3 A

Environment
:

Min/max operating temperature: 15° / 30°C (59° / 86°F)

Humidity
: 20% to 65% non-condensing Min/max storage temperature: —5° / +70°C (23° / 158°F)

Storage humidity
: 20 to 70% non-condensing

Operating ventilation
: Open air<


Resident fonts

  • Arial 100, Arial Bold 100
  • Bar code: Code 39, code 128, EAN 13, Interleaved 2 of 5

Card Printer Supplies

Warranty

The Evolis Zenius GO Pack features a 2-year warranty on printer and printhead.

Protect your investment with our extended warranty plans.

To order an extended warranty please call 888-618-9349 Monday thru Friday from 8:30 am to 5pm


All our extended warranty plans include:

  • Toll-free technical support

    Call 800-897-7024 Monday thru Friday from 8:30 am to 5pm or chat with us.

  • Parts and labor

    All parts and labor are included. Printheads are not covered after the first year.

  • Optional printer loaner

    We will send you a loaner while we service your printer so you can keep printing your badges.

  • Questions? Call us today at 800-897-7024 to speak with an ID expert.
