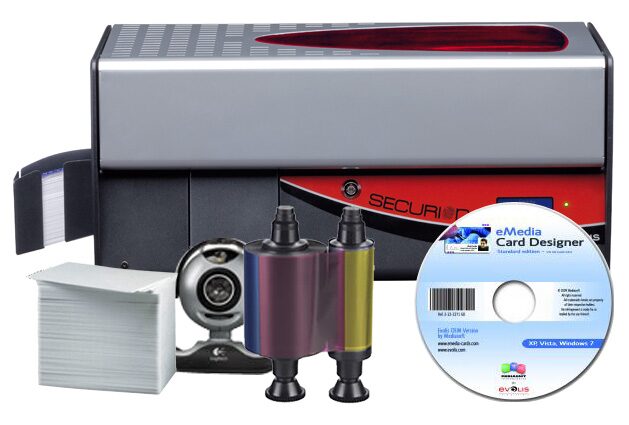

Securion personalizes and durably protects secured badges for every security application: From simple ID cards to fraud-proof security.
The Evolis Securion is ideal for:
A protection film is applied over the surface with hot roller technology, after the graphical and electrical personalization process.The film is either a continuous layer of varnish or a patch. Editing and encoding a secure badge is just a matter of a single pass.
Secure ID Badges and Restrictions of Use:
Print and Laminating Speed
Personalization throughput will depend on card design and lamination speed settings
Encoding Options: magnetic stripes, contact and contactless SMART cards.
Lamination and Printing Speed: between 85 and 105 Cards/h (YMCK-K + patch 1.0 mil single sided),between 85 and 120 Cards/h (YMCK + patch 1.0 mil single sided)
Card Types: All PVC, Composite PVC cards
Card Format: ISO CR-80 - ISO 7810 (53.98 mm x 85.60 mm 2.... 3.375x 2.125
Card Thickness: From 0.25 mm (10 mil) to 1 mm (40 mil) - No lamination under 0.50 mm (20mil), recommended from 0.76 mm (30 mil min.)
Output Hopper Capacity: 100 cards (0.76 mm - 30 mil)
Card Feeder Capacity: 100 cards (0.76 mm - 30mil)
Without Card Hopper: L 562.7 mm x W 262.16 mm x H 274.64 mm (L 22.15xW 10.32x H 10.81
With Card Hopper: L 658.2 mm x W 262.16 mm x H274.64 mm (L 25.91x W 10.32x H 10.81
Printer Weight15.4 Kg (33.15 Lbs)
Connections: USB and Ethernet ports (USB Cable supplied)
Electrical Power Supply: 100-240 Volts AC, 2A, 50-60 Hertz,
Printer: 24Volts DC, 6.25A
Min/Max Operating Temperature: 15° / 30°C (59° / 86° F)
Humidity: 20% to 65% non-condensing
Min/Max Storage Temperature: -5° / +70°C (23° / 158°F)
Storage Humidity: 20% to 70% non-condensingOperating Ventilation: Free air
That is why we have designed unique warranty plans of one, two or three years to give you peace of mind and help you protect your investment.
Our team of certified technicians is always available to assist you and service your ID printer in a timely manner.
All our extended warranty plans include:
Call 800-897-7024 Monday thru Friday from 8:30 am to 5pm or chat with us.
All parts and labor are included. Printheads are not covered after the first year.
We will send you a loaner while we service your printer so you can keep printing your badges.
