Resolution: 300 dpi (11.8 dots/mm)
Colors: Up to 16.7 million / 256 shades per pixel
Print Ribbon Options:
- Full-color, YMC, 750 prints
- Full-color with resin black, YMCK, 500 prints
- Full-color with two resin black panels, YMCKK, 500 prints
- Full-color with resin black and heat seal panel for difficult-to-print surfaces, YMCKH, 500 prints
- Full-color with resin black and inhibit panel for signature or other non-printing areas, YMCKI, 500 prints
- Full-color with fluorescing and resin black, YMCFK, 500 prints
- Resin black, K, 3000 prints
HDP Film Options:
Clear (1,500 prints)Standard Holographic (500 prints)Custom Holographic, special order (500 prints)Print Speed:
- 26 seconds per card / 138 cards per hour (YMC with transfer)
- 32 seconds per card / 113 cards per hour (YMCK with transfer)
- 47 seconds per card / 77 cards per hour (YMCKK with transfer)
Accepted Card Size:CR-80 (3.370”L x 2.125”W / 85.6mmL x 54mmW)
Print area: Over-the-edge on CR-80 cards
Accepted Card Thickness:
Print only: .030” (30 mil) to .050” (50 mil) / .762mm to 1.27mm
Input Card Cartridge Capacity: 100 cards (.030” / .762mm)
Output Hopper Card Capacity: 200 cards (.030” / .762mm)
Card Cleaning: Replaceable cleaning roller (included with each print ribbon)
Memory: 16mb ram
Display: User friendly, SmartScreenTM LCD Control Panel
Software Drivers:
Windows® 2000 / XP / Server 2003 / Vista (32 bit); Mac OS X v10.4 / v10.5; and Linux
Interface:
USB 2.0 (high speed) and Ethernet with internal print server
System Requirements:
x86based PC or compatible, Windows 2000, Windows XP, Windows 2003, orWindows Vista, 500MHz computer with 256MB of RAM or higher, 500MB freehard disk space or higher
Operating Temputere: 65° to 90° F / 18° to 32° C
Supply Voltage:100-240 VAC, 3.3 A
Humidity: 20 - 80% non-condensing
Dimensions:

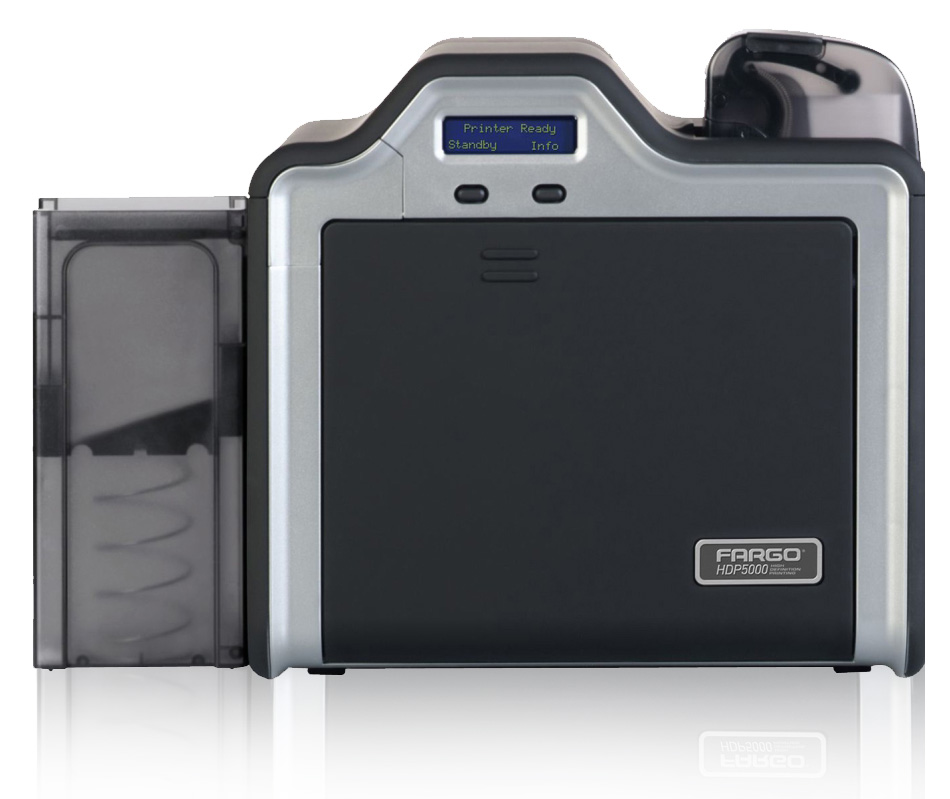

HDP5000: 11.50”H x 12.25”W x 9.25”D / 292mmH x 313mmW x 235mmD
Weight: 16 lbs. / 7.3 kg
Agency Listing:
- Safety: UL 60950, CSA C2.2 No 60950, CB report (EN 60950), and CE mark
- EMC:FCC Part15 Class A, EN 55022: 1998 Class A, CRC c1374, EN 61000-3-2:2000,EN 61000-3-2: 1995, EN 55024: 1998, CE mark, and CCC mark
Supply Frequency:50 Hz / 60 Hz
Software: Fargo Workbench Diagnostic Utility
Warranty:
Printer — Two years including one year of free printer loaner support
Printhead — Lifetime with unlimited pass.
