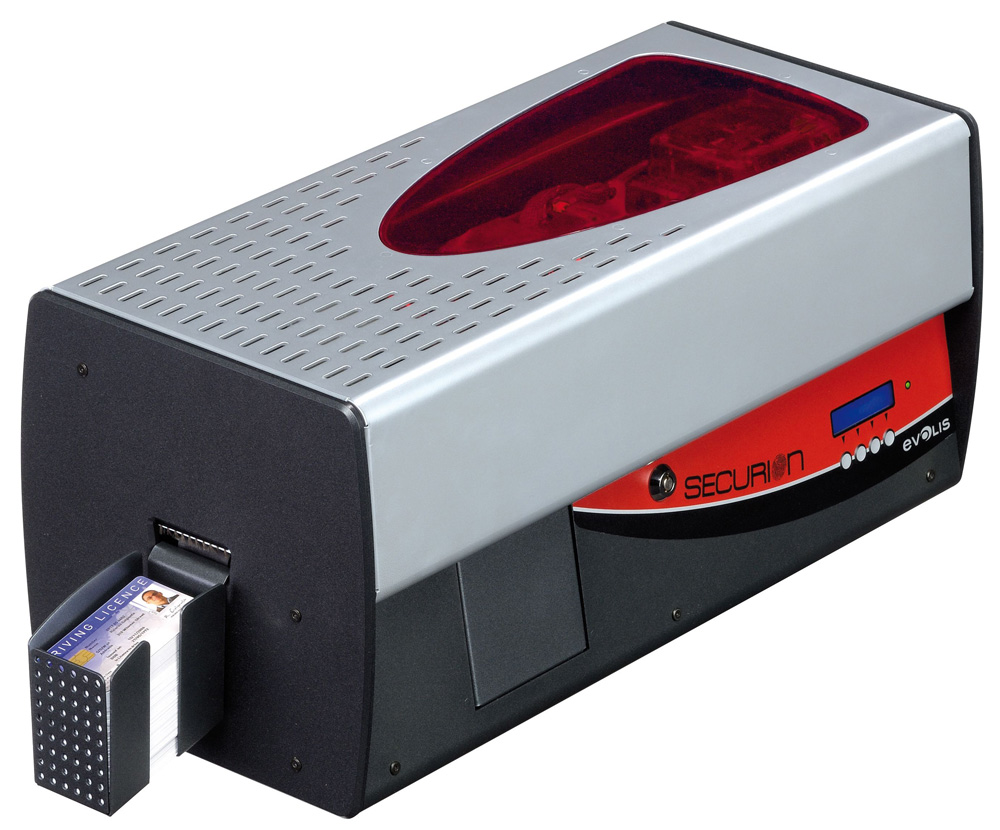

Evolis Securion Dual Sided ID Card Printer with Single Sided Lamination Specifications
Printing
- Single and dual-sided printing and lamination
- Color and monochrome capabilities
- Windows 7 (32 & 64 bits), Vista (32 & 64 bits), XP & Mac OS X compatible
Printer Mode- Color dye sublimation and monochrome thermal transfer
- Enhanced color management system for top quality pictures
- Edge to edge printing
Printer Specifications- Color printing module and laminating unit
- 300 dpi print head(11.8 dots/mm)
- USB & Ethernet TCP-IP connection
- 16 MB RAM allowing two-card storage (front & back)
- Flip-over station for dual-sided printing or laminating
- Detachable feeder with a capacity of 100 cards (0.76 mm or 30 mil)
- Output hopper with a capacity of 100 cards (0.76 mm or 30 mil)
- Reject box for 15 cards(0.76 mm or 30 mil)
- Two-line LCD display and a status LED
- Locking system to secure access to blank cards, ribbons, films and rejected cards
- Support for a KensingtonŽ locking system
Lamination Mode
- Full card varnish and patch films
- Dual-sided lamination
- Speed range: 2 mm/s to 18 mm/s (0.08 inch/s to 0.71 inch/s)
- Temperature range:100°C to 180°C (212°F to 356°F)
Print and Laminating Speed
Personalization throughput will depend on card design and lamination speed settings
- YMCK-K, 1.0 mil patch single-side - 85 to 105 cards/hour YMCK, 1.0 mil patch single-side - 95 to 120 cards/hour
Encoding Options: magnetic stripes, contact and contactless SMART cards.
Lamination and Printing Speed: between 85 and 105 Cards/h (YMCK-K + patch 1.0 mil single sided),between 85 and 120 Cards/h (YMCK + patch 1.0 mil single sided)
Card Types: All PVC, Composite PVC cards
Card Format: ISO CR-80 - ISO 7810 (53.98 mm x 85.60 mm 2.... 3.375x 2.125
Card Thickness: From 0.25 mm (10 mil) to 1 mm (40 mil) - No lamination under 0.50 mm (20mil), recommended from 0.76 mm (30 mil min.)
Output Hopper Capacity: 100 cards (0.76 mm - 30 mil)
Card Feeder Capacity: 100 cards (0.76 mm - 30mil)
Printer Size
Without Card Hopper: L 562.7 mm x W 262.16 mm x H 274.64 mm (L 22.15xW 10.32x H 10.81
With Card Hopper: L 658.2 mm x W 262.16 mm x H274.64 mm (L 25.91x W 10.32x H 10.81
Printer Weight15.4 Kg (33.15 Lbs)
Connections: USB and Ethernet ports (USB Cable supplied)
Electrical Power Supply: 100-240 Volts AC, 2A, 50-60 Hertz,
Printer: 24Volts DC, 6.25A
Environmental
Min/Max Operating Temperature: 15° / 30°C (59° / 86° F)
Humidity: 20% to 65% non-condensing
Min/Max Storage Temperature: -5° / +70°C (23° / 158°F)
Storage Humidity: 20% to 70% non-condensing
Operating Ventilation: Free air
