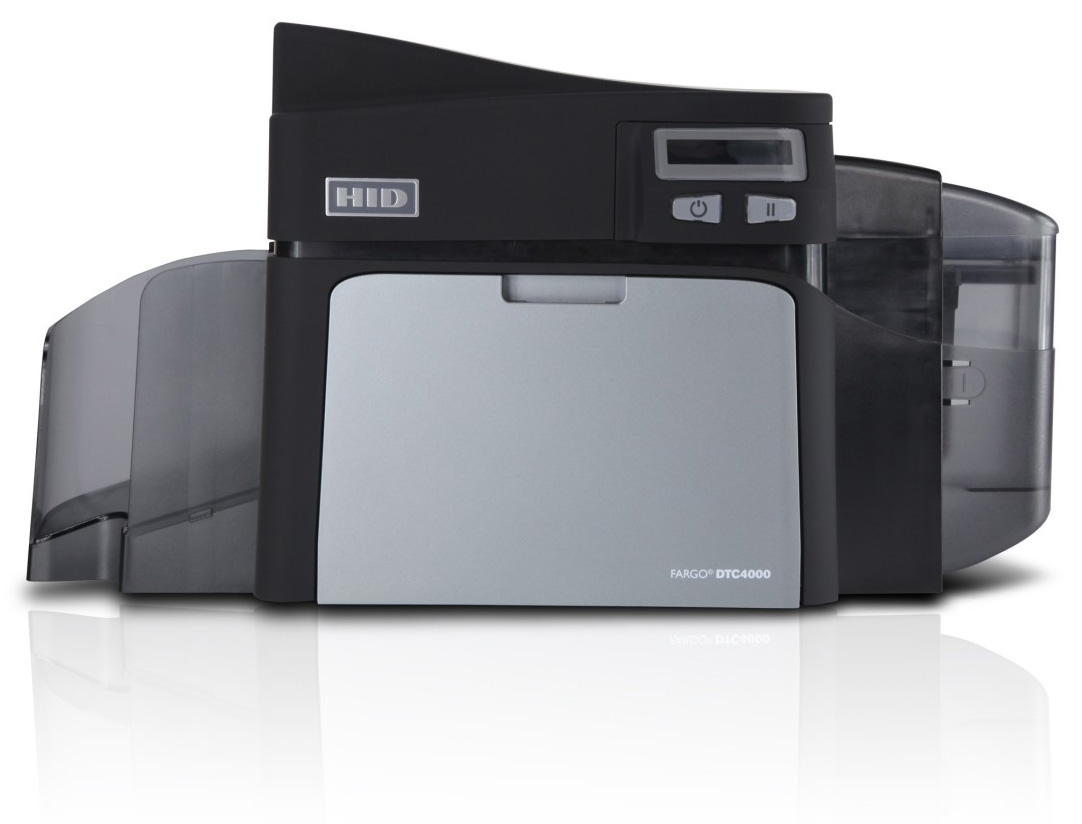

Fargo DTC4000 Dual Sided ID Card Printer With Magnetic Encoder - Ethernet

Item#: 48130 / Brand: fargo

Retail Price: $4797.00
Sign in or Register for Pricing

Dual Sided
Magnetic Encoding
Ethernet
2 Year Warranty

Description

Specifications

Card Printer Supplies

Fargo DTC4000 Dual Sided ID Card Printer With Magnetic Encoder - Ethernet Description

The Fargo DTC4000 (direct to card) dual sided printer with magnetic encoder and ethernet connectivity (Item #48130) is one of the most reliable and professional photo id printer out there today. The Fargo DTC4000 dual sided printer (Item #48130) is field upgradable so the it can adopt to your company's needs. You can add a whole lot of functionality to the printer. The Fargo DTC4000 dual sided printer is built with genuine HID technology and it is fully interoperable with other products in the HID eco-sytem enabling you to leverage your existing technology.

The Fargo DTC4000 (direct to card) dual sided printer with magnetic encoder (Item #48130) is an enhanced secure printer. In addition to its sophisticated encoding options the Fargo DTC4000 dual sided printer will print a uv layer for an increased level of physical security on the card. It can migrate from lower to higher security levels. The Fargo DTC4000 single sided printer was designed to become the new go to standard for id card printers. Even with all the security features it is still a sleek and a compact printer.

You get reliable, professional quality color ID cards and security encoding all in one pass. Operation and supply replacement are both intuitive, making extensive training unnecessary.

With an unheard of combination of footprint flexibility, field upgradeability, ease of use, and ease of integration with other HID products, you'll receive maximum value for your asset protection budget from the most trusted names in secure identity solutions.

The Fargo DTC4000 dual sided printer (Item #48130) is ideal for:

Mid to large size businesses
College campuses
Local and regional governments
High security construction sites

Key Benefits of the Fargo DTC4000:

Modular Design:
As organizations grow and threats change, those responsible for asset protection need equipment that can easily adapt to evolving needs.

Easy to place, easy to use:
With a small footprint, and an optional same-side input/output hopper, its minimum size was designed for maximum flexibility. And with upgradeable functionality and security, simple replacement of cartridge supplies, movable SmartScreen graphical display, and an easy, intuitive set up, the DTC4000 was made for organizations that want a higher level of security without the higher levels of capital investment and training time.

As your organization grows, the Fargo DTC4000 can grow with you. The DTC4000 card printer is field upgradeable, so it can adapt to changes you need when you need them. Add HID Proximity encoding (125 kHz), iCLASS contactless encoding (13.56 MHz), or contact chip encoding. Add Ethernet connectivity. Add a high-capacity ID card hopper.

Reliable:
We back each of our Direct-to-Card Printer/Encoders with a global 2-year warranty. A 7th generation product from Fargo, each printer now works seamlessly with HID readers and other asset protection modules.

Enhanced security:
In addition to sophisticated encoding options, the DTC4000 will print a UV layer for an increased level of physical security on the card. The DTC4000 can also be password protected at the printer so only approved operators can print and encode plastic security cards and badges.

Key Features on the Fargo DTC4000 (Item #48130):

Modular design and field upgradeable
Dual sided
Magnetic encoder
Ethernet connectivity
Password protection
Rewrite capable
SmartScreen graphical display
Supply replacement - Easy cartridge loading

Fargo DTC4000 Dual Sided ID Card Printer With Magnetic Encoder - Ethernet Specifications

Print Method: Dye-Sublimation / Resin Thermal Transfer

Printer Type: Dual Sided

Resolution: 300 dpi (11.8 dots/mm) continuous tone

Colors up to 16.7 million / 256 shades per pixel

Print Ribbon Options:

Full-color with resin black and overlay panel, YMCKO, 250 prints
Full-color half-panel with resin black and overlay panel, YMCKO, 350 prints
Full-color with two resin black panels and overlay panel, YMCKOK, 200 prints
Full-color with fluorescing, resin black and overlay panel, YMCFKO, 200 prints
Full-color with fluorescing, two resin black panels and overlay panel, YMCFKOK, 175 prints
Resin black and overlay panel, KO, 500 prints
Dye-sublimation black and overlay panel, BO, 500 prints
Resin black (standard and premium), 1000 prints
Resin green, blue, red, white, silver and gold, 1000 prints
Rewrite technology- No ribbon is required

Print Speed:

7 seconds per card (K)

12 seconds per card (KO)

24 seconds per card (YMCKO)

31 seconds per card (YMCKOK)

Accepted Standard Card Sizes:

CR-80: (3.375 L x 2.125 W / 85.6mm L x 54mm W)

CR-79 Adhesive Back: (3.313 L x 2.063 W / 84.1mm L x 52.4mm W)

Print Area:

CR-80 edge-to-edge: (3.36 L x 2.11 W / 85.3mm L x 53.7mm W)

CR-79: (3.3 L x 2.04 W / 83.8mm L x 51.8mm W)

Accepted Card Thickness: .009 - .040 / 9 mil - 40 mil / .229mm - 1.016mm

Accepted Card Types:

PVC or polyester cards with polished PVC finish
Monochrome resin required for100% polyester cards
Optical memory cards with PVC finish
Rewrite

Input Hopper Card Capacity: 100 cards (.030 / .762mm)

Output Hopper Card Capacity: Up to 100 cards (.030 / .762mm)

Reject Hopper Card Capacity: Up to 100 cards (.030 / .762mm) - same-side input/output card hopper required

Card Cleaning: Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change

Memory: 32 MB RAM

Software Drivers: Windows XP / VistaTM (32 bit & 64 bit) / Server 2003 & 2008 / Windows 7 / Linux

Interface: USB 2.0, Ethernet

Magnetic Encoder:

Operating Temperature: 65° to 80° F / 18° to 27° C

Humidity: 20-80% non-condensing

Dimensions: 18.1x 9.8x 9.2(460mm x 249mm x 234mm)

Weight: 10 lbs. / 4.54 kg

Agency Listings Safety: UL 60950-1, CSA C22.2 (60950-1), and CE; EMC: FCC Class A, CRC c1374, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KCC

Supply Voltage: 100-240 VAC, 3.3 A

Supply Frequency: 50 Hz / 60 Hz

Software: Swift IDTM Embedded Badging Application, FARGO Workbench Diagnosis Utility

Display: User friendly, SmartScreenTM graphical display

Printer Security: Printer access password protected; Kensington® lock compatibility

Warranty:

Printer - Two years

Printhead - Two years with unlimited pass with UltraCard

Product name	SKU	MSRP	Discount price
100 Pieces: Round Badge Reel-Black-Round-Clear Vinyl Strap & Swivel Spring Clip	2120-7601	$74.00	$64.95	Check to Add
Asure ID Solo 7 Software 86411	86411	$250.00	$149.00	Check to Add
CR80.30 (30 Mil) HiCo Mag Stripe PVC Cards - Qty. 500	81751	$102.00	$69.00	Check to Add
Fargo Cleaning Kit	86177	$39.95	$33.00	Check to Add
Fargo Full Color Ribbon - YMCKO - 250 Prints	45100	$95.00	Sign-in for price
Fargo Standard Black Monochrome Ribbon - 1000 Prints	45102	$22.00	$16.50	Check to Add
HID ISOProx II 1386 QTY:100	1386	$630.00	$439.00	Check to Add
Standard Lanyard-Black-Round-Lanyard-Nickel Plated Steel	2135-3001	$27.33	$24.95	Check to Add

Fargo DTC4000 Dual Sided ID Card Printer With Magnetic Encoder - Ethernet Highlights

Dual-sided direct to card high-quality photo ID printer with enhanced security and built-in erase/rewrite
Special features: prints edge-to-edge in full color or black and white, ethernet connectivity, mag-stripe encoding, easy to use, and easy to setup.
Optional upgrades: Many different encoding options available.

What's Included

Fargo DTC4000 dual-sided printer with Ethernet & Magnetic Stripe Encoding
USB cable
US/international power cords
CD with printer drivers and user guide
2 year warranty
