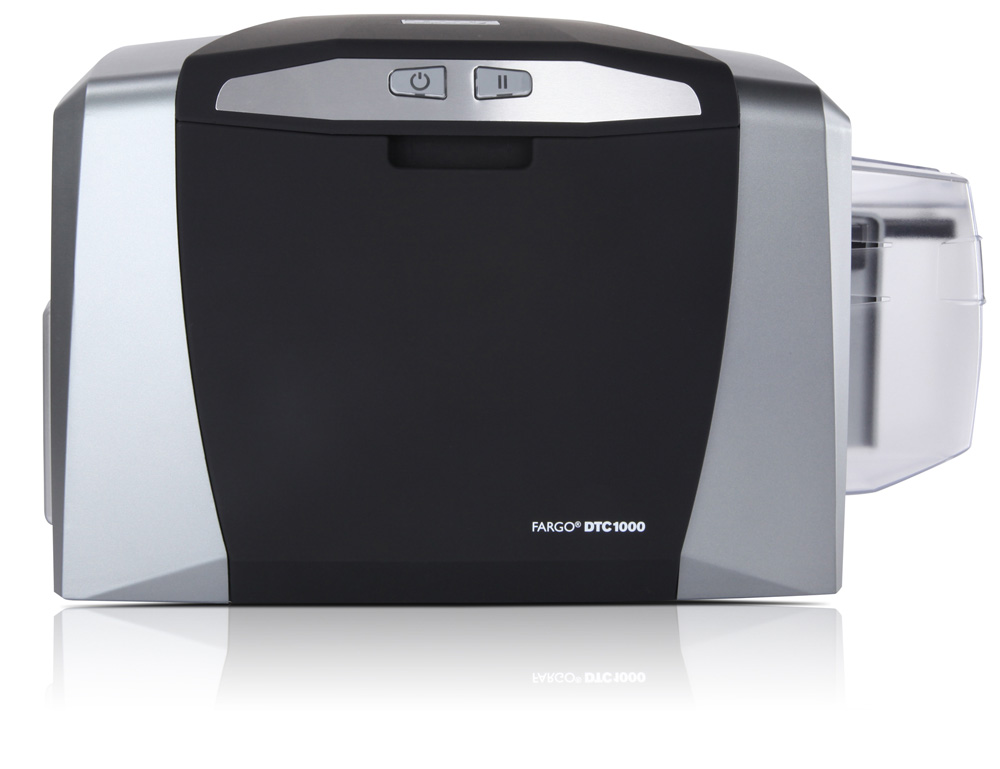

Fargo DTC1000 Dual Sided ID Card Printer With Magnetic Encoder 47110 Specifications
Print Method Dye-Sublimation / Resin Thermal TransferResolution 300 dpi (11.8 dots/mm) continuous tone
Colors: Up to 16.7 million / 256 shades per pixel
Print Ribbon Options- Full-color with resin black and overlay panel, YMCKO*, 250 prints
- Full-color half-panel with resin black and overlay panel, YMCKO*, 350 prints
- Full-color with two resin black panels and overlay panel, YMCKOK*, 200 prints
- Resin black and overlay panel, KO*, 500 prints
- Dye-sublimation black and overlay panel, BO*, 500 prints
- Resin black (standard and premium), 1000 prints
- Resin green, blue, red, white, silver and gold, 1000 prints
- Rewrite technology - No ribbon is required
Print Speed7 seconds per card (K*); 12 seconds per card (KO*); 24 seconds per card (YMCKO*); 31 seconds per card (YMCKOK*)
Accepted Standard Card Sizes: CR-80 (3.375 L x 2.125 W / 85.6mmL x 54mmW); CR-79 Adhesive Back (3.313L x 2.063W / 84.1 mm L x 52.4 mm W)
Print AreaCR-80 edge-to-edge: (3.36L x 2.11W / 85.3 mm L x 53.7 mm W); CR-79 (3.3L x 2.04W / 83.8 mm L x 51.8 mm W)
Accepted Card Thickness .009 - .040 / 9 mil - 40 mil / .229mm - 1.016mm
Accepted Card TypesPVC or polyester cards with polished PVC finish; monochrome resin required for 100% polyester cards; optical memory cards with PVC finish; rewriteInput Hopper Card Capacity: 100 cards (.030 / .762 mm)
Output Hopper Card Capacity: Up to 30 cards (.030 / .762 mm)
Card Cleaning: Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change
Memory 32 MB RAMSoftware Drivers:Windows® XP / Vista™ (32 bit & 64 bit) / Server 2003 & 2008/ Windows® 7 / MAC OS X 10.5/10.6 / Linux
Interface: USB 2.0, optional Ethernet with internal print server
Operating Temperature: 65° to 80° F / 18° to 27° C
Humidity: 20–80% non-condensing
Dimensions:Single-Sided Printer: 8.8H x 13.7W x 7.9D / 224 mm H x 348 mm W x 201 mm D
Dual-Sided Printer: 9.8H x 18.7W x 9.2D / 249 mm H x 475 mm W x 234 mm D
WeightSingle-Sided: 7.5 lbs / 3.4 Kg; Dual-Sided: 10 lbs / 4.54 Kg
Agency ListingsSafety: UL 60950-1, CSA C22.2 (60950-1), and CE
EMC: FCC Class A, CRC c1374, CE (EN 55022 Class A, EN 55024),CCC, BSMI, KCC
Supply Voltage: 100-240 VAC, 3.3 A
Supply Frequency: 50 Hz / 60 Hz
WarrantyPrinter – Two years
Printhead – Two years, unlimited pass with UltraCard™
