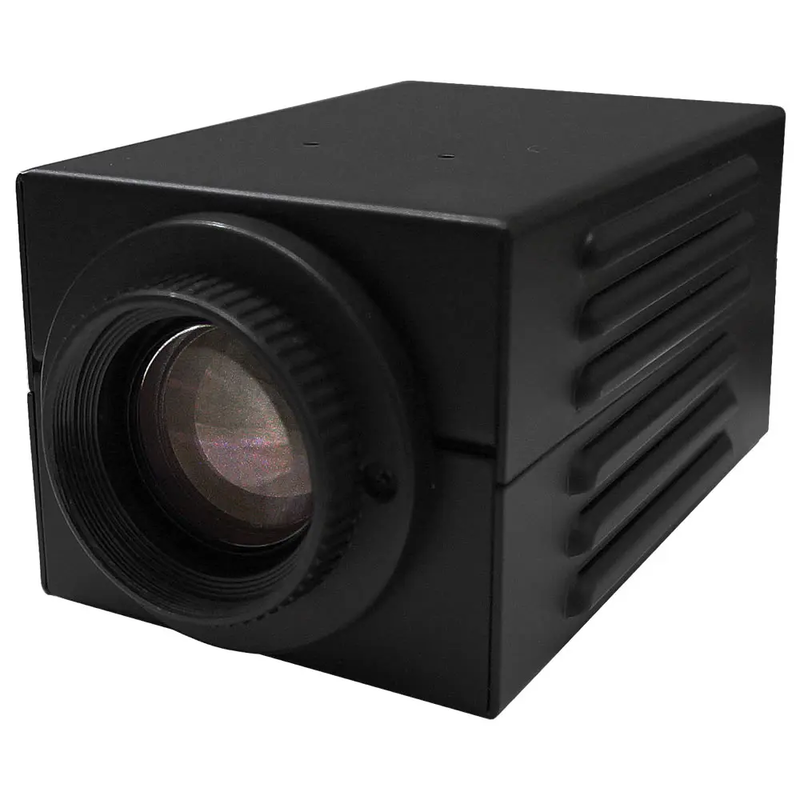

Videology Autofocus Zoom Camera with Twain Driver and Capture Software - 24Z704USB-Kit

Item#: 24Z704USB-Kit
Manufacturer: Videology
Retail Price: $999.00
Sale Price: $799.00 ( Save: $200.00 )

Description


24Z704USB Features
  • 2 megapixel progressive scan sensor
  • WDM, TWAIN, DirectX compatible
  • Still image capture with streaming video
  • Auto focus, 10x optical zoom
  • Software Development Kit available
  • FIPS 201 compliant with Aware PreFace software

Product Applications
  • Secure ID
  • Visitor Management
  • Enrollment
  • Border Patrol
  • Passports
  • Driver's Licenses

Specifications

Electrical

  • Image Sensor - 1/3? CMOS progressive scan
  • Viewer Display - 1280 x 1024
  • Total Pixels (HxV) - 1600 x 1200
  • Pixel Size - 3.0?m x 3.0?m
  • Scanning System - Progressive Scan
  • Scanning Frequency (HxV) - 19.5KHz x 15Hz
  • Resolution - 800 TVL
  • Sensitivity - 1 lux (30 IRE)
  • Frame Rate - USB 2.0 @ 8 fps (max)
  • Display Resolution - 1280 x 1024
  • Still Capture - 1280 x 1024 pixels
  • Signal To Noise Ratio - ? 40dB (max)
  • Synchronization - Internal
  • Scan Mode - Progressive scan
  • Flickerless Mode - Yes (always on, NTSC/PAL confi gurable)
  • Contour Enhancement - Yes (text mode or image mode)
  • Mirror Mode - Yes (horizontal/vertical)
  • Positive/Negative Mode - Yes
  • Video Output - USB 2.0
  • Control Communication - USB bus
  • Shutter Speed - 1/20 - 1/1000 sec.
  • White Balance - Auto/manual
  • Brightness - Manual
  • Iris - Auto/manual
  • Power Supply - 12VDC (10 - 14VDC)
  • Power Consumption - 1 Amp Max
  • Special Functions - Freeze, H/V reverse, save & recall images


USB Video


  • Video Capture - Yes (via software)
  • High Resolution Still Image Capture - Yes (via software)
  • Supported Image Formats - Uncompressed YUV422
  • USB Bandwidth - USB 2.0


Environmental


Operating Temp. - -10?C ~ 50?C (recommended 5? C ~ 40? C)


Mechanical


  • Dimensions - (WxHxD) 66mm x 58.4mm x 114.3mm (2.6? x 2.3? x 4.5?)
  • Weight - 417g (0.92 lbs)


Software


Viewer (included) SFT-10002
  • WDM device drivers
  • DirectX/DirectShow compliant
  • TWAIN compliant (requires driver installation)

SDK (optional) - Complete software development kit and support for OEMs


Recommended System Requirements

Hardware
  • Pentium IV - 2.3GHz +, 1GB hard drive, Intel - USB 2.0 Host controller

Software

  • Windows 7 - 32 bit and 64 bit
  • Windows Vista - 32 bit and 64 bit
  • Windows XP - Service pack 2 +,DirectX 9.0c or above


Accessories


Included - 70V0423-B - 1/4? - 20 mounting block

Optional

  • 60C1012 - 10? USB 2.0 cable
  • 60PR12DC5.0A-AFZ - 12VDC power supply (3A)
  • 60C0021 - USA plug
  • Optional with P model - 60C1118 - Euro plug


Complementary Models


  • 24Z704USB-P - PAL version (50 Hz)
  • 24Z704USB-KIT - Camera with optional accessories above
  • 24Z704USB-KIT-P - PAL version camera with optional accessories above


Government Compliance


FIPS 201 -In conjunction with appropriate software
